WATER PUMP
GSXR600 2004 (K4) USA (E03)

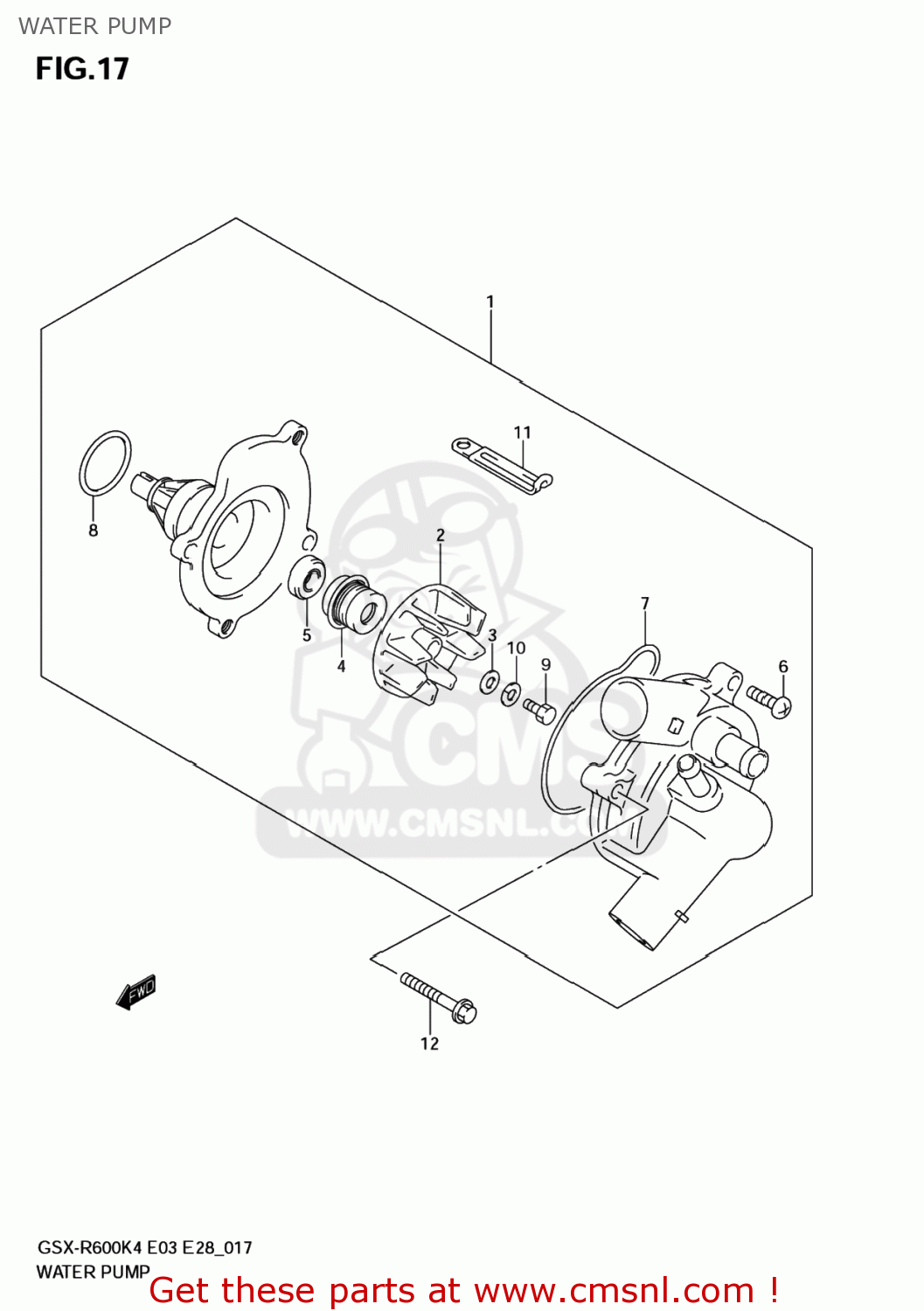

Water pump diagram GSXR600 2004 (K4) USA (E03)
WATER PUMP GSXR600 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1740035F10
ref: 1
PUMP ASSY,WATER
€ 397.50
2
1749117E01
ref: 2
IMPELLER
€ 15.00
3
0916806025
ref: 3
GASKET(6X15X2.2) (NAS)
€ 3.00
4
1747002F10
ref: 4
SEAL,MECHANICAL
€ 21.50
5
0928310004
ref: 5
SEAL,OIL(10X21X5)
€ 4.50
6
0211206163
ref: 6
02112-0616A
SCREW 6X16
€ 2.00
7
1741833400
ref: 7
O RING
€ 4.00
8
1743533400
ref: 8
O RING,WATER PUMP HOLDER
€ 13.00
9
0910006099
ref: 9
BOLT(6X13)
€ 2.00
10
0916406006
ref: 10
WASHER
€ 2.50
11
0940406429
ref: 11
CLAMP(L:45)
€ 2.50
12
0154706353
ref: 12
01547-0635B
BOLT
€ 3.00
