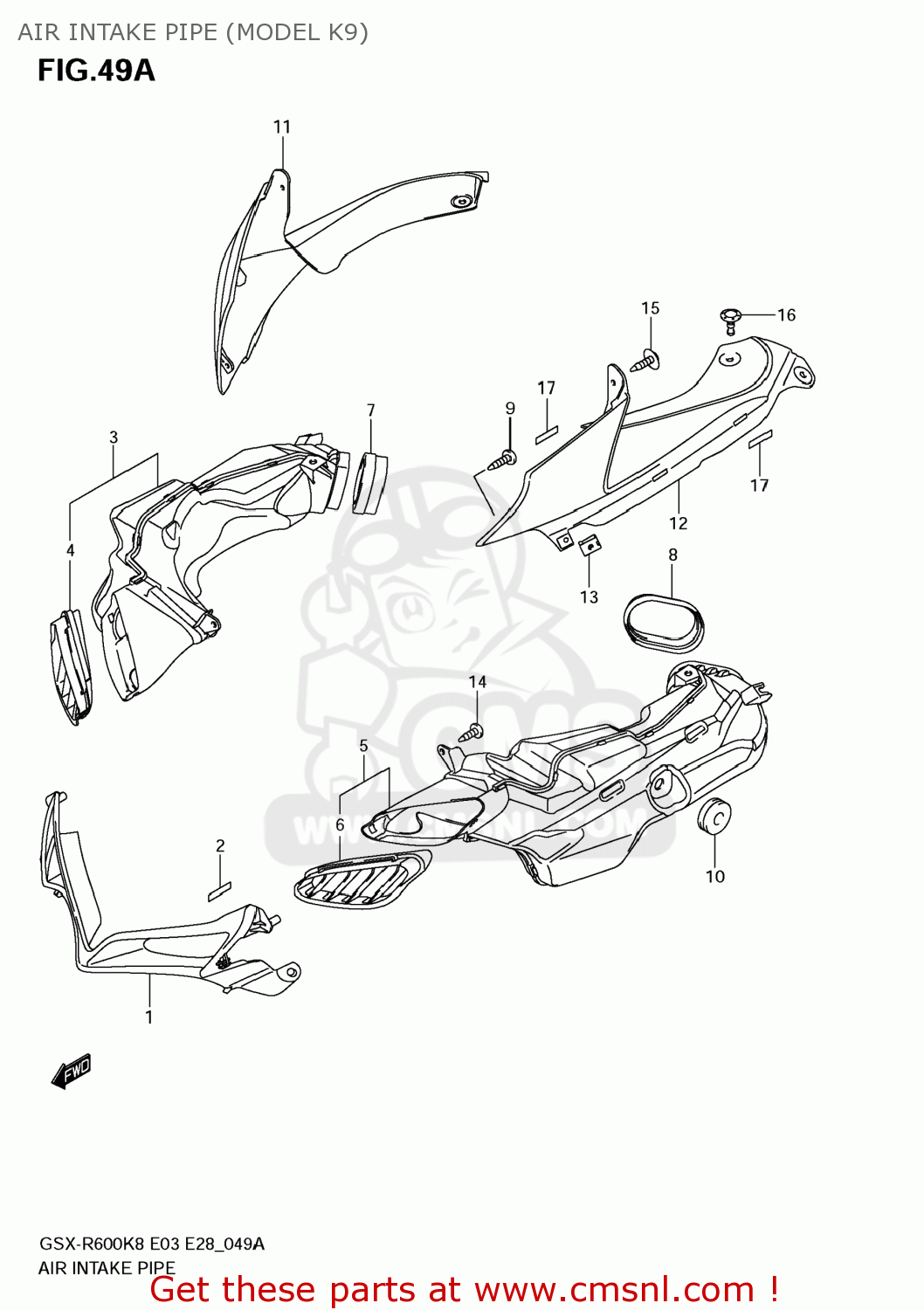

AIR INTAKE PIPE (MODEL K9)

ref

part #

description

quantity

1

9467137H00YKV
ref: 1

COVER,INTAKE

€ 148.50

2

9444306G00
ref: 2

TAPE(6X25X0.13)

€ 2.00

3

9440237H00
ref: 3

PIPE ASSY,AIR INTAKE,R

€ 109.00

4

9441237H00
ref: 4

NET,INTAKE PIPE,R

€ 12.50

5

9440337H00
ref: 5

PIPE ASSY,AIR INTAKE,L

€ 116.00

6

9441337H00
ref: 6

NET,INTAKE PIPE,L

€ 12.00

7

9442301H00
ref: 7

MOLDING,AIR INTAKE,R

€ 15.00

8

9443301H00
ref: 8

MOLDING,AIR INTAKE,L

€ 21.00

9

035410516B
ref: 9

SCREW

€ 2.00

10

0932008028
ref: 10

CUSHION

€ 2.50

11-1

9467237H00YKV
ref: 11-1

COVER,INTAKE,R

€ 148.50

11-2

9467237H00019
ref: 11-2

COVER,INTAKE,R

€ 139.00

11-3

9467237H00YSF
ref: 11-3

COVER,INTAKE,R

€ 103.00

12-1

9468237H00YKV
ref: 12-1

COVER,INTAKE,L

€ 148.50

12-2

9468237H00019
ref: 12-2

COVER,INTAKE,L

€ 139.00

12-3

9468237H00YSF
ref: 12-3

COVER,INTAKE,L

€ 82.50

13

0914805052
ref: 13

NUT

€ 3.50

14

035410512B
ref: 14

SCREW

€ 2.00

15

0913205050
ref: 15

SCREW(5X12)

€ 2.00

16

9447935F00
ref: 16

CLIP

€ 3.50

17

9444306G00
ref: 17

TAPE(6X25X0.13)

€ 2.00
