TRANSMISSION
GSXR600 2009 (K9) USA (E03)

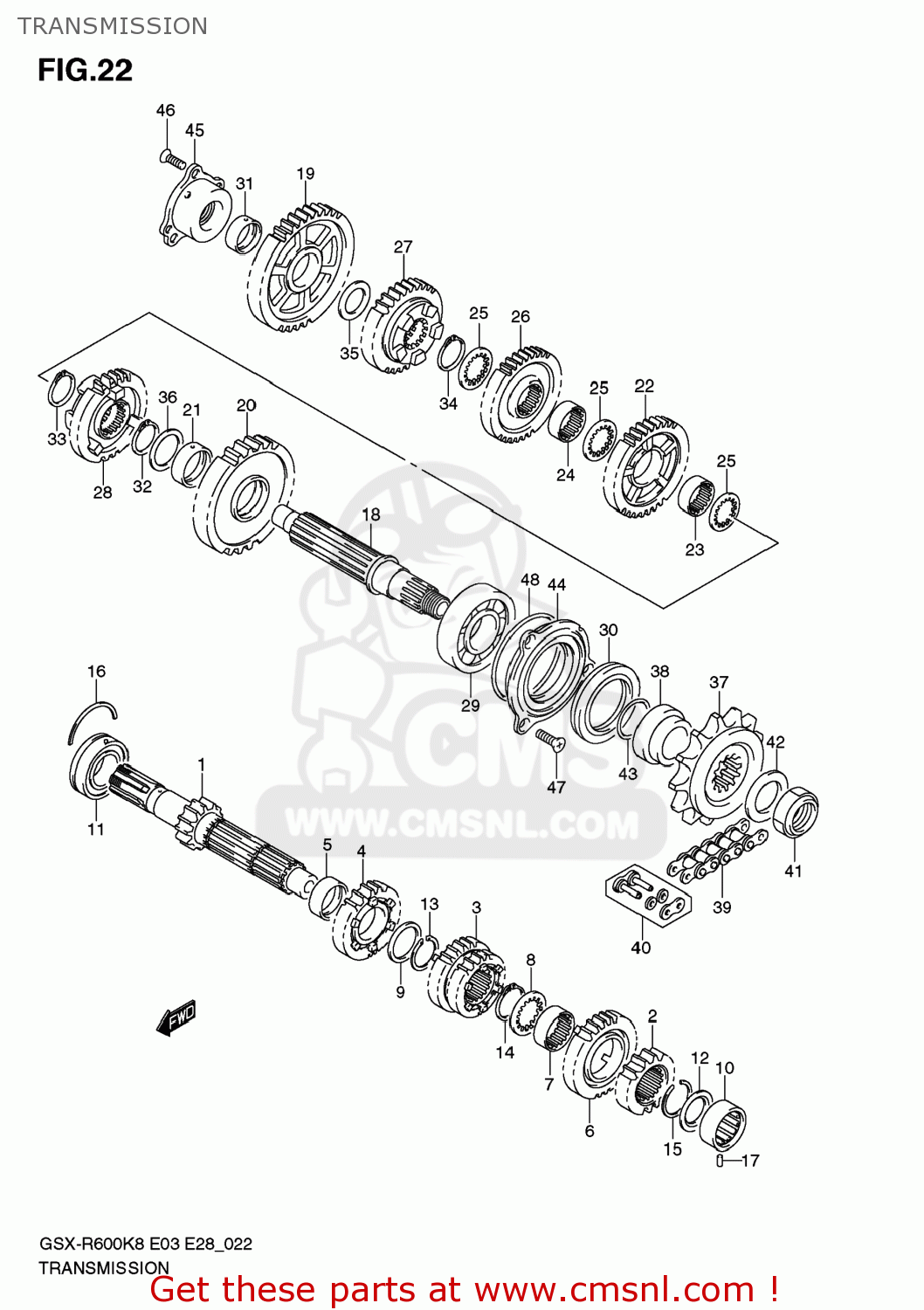

Transmission diagram GSXR600 2009 (K9) USA (E03)
TRANSMISSION GSXR600 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412001H00
ref: 1
SHAFT,COUNTER
€ 310.50
2
2422135F00
ref: 2
GEAR,2ND DRIVE
€ 68.00
3
2423101H00
ref: 3
GEAR,3RD & 4TH DRIVE
€ 130.50
4
2425101H00
ref: 4
GEAR,5TH DRIVE
€ 105.00
5
2425235F00
ref: 5
BUSH,5TH DRIVE GEAR
€ 13.00
6
2426101H01
ref: 6
GEAR,6TH DRIVEN(NT:24)
€ 101.00
7
2426235F00
ref: 7
BUSH,6TH DRIVE GEAR
€ 19.50
8
0916727001
ref: 8
WASHER,LOCK
€ 3.50
9
0916027008
ref: 9
WASHER(27X36X1)
€ 3.00
10
0926320087
ref: 10
BEARING(20X34X13.5)
€ 31.50
11
0926225150
ref: 11
BEARING(25X62X17)
€ 38.50
12
0928520006
ref: 12
SEAL,OIL(20X31.2X2.7)
€ 7.00
13
0938027006
ref: 13
CIRCLIP
€ 2.50
14
0938027006
ref: 14
CIRCLIP
€ 2.50
15
0938027004
ref: 15
CIRCLIP
€ 3.50
16
0939062012
ref: 16
C RING
€ 5.00
17
0926106003
ref: 17
PIN(6X10)
€ 1.50
18
2413101H01
ref: 18
SHAFT,DRIVE
€ 282.00
19
2431135F20
ref: 19
GEAR,1ST DRIVEN
€ 105.00
20
2432135F11
ref: 20
GEAR,2ND DRIVEN(NT:39)
€ 88.50
21
2432235F00
ref: 21
BUSH,2ND DRIVEN GEAR
€ 11.50
22
2433140F30
ref: 22
GEAR,3RD DRIVEN
€ 102.00
23
2426217E01
ref: 23
BUSH
€ 29.00
24
2426217E01
ref: 24
BUSH
€ 29.00
25
2433302F00
ref: 25
WASHER,3RD & 4TH DRIVEN
€ 3.50
26
2434140F20
ref: 26
GEAR,4TH DRIVEN
€ 103.50
27
2435101H01
ref: 27
GEAR,5TH DRIVEN(NT:31)
€ 100.00
28
2436101H00
ref: 28
GEAR,6TH DRIVEN
€ 103.50
29
0926228045
ref: 29
BEARING(28X68X18)
€ 48.00
30
0928342018
ref: 30
SEAL,OIL(42X62X7)
€ 33.00
31
0930022008
ref: 31
BUSH(22X26X9)
€ 10.50
32
0938027006
ref: 32
CIRCLIP
€ 2.50
33
0938027006
ref: 33
CIRCLIP
€ 2.50
34
0938027006
ref: 34
CIRCLIP
€ 2.50
35
0918122223
ref: 35
SHIM(22X34X1)
€ 3.00
36
0916027008
ref: 36
WASHER(27X36X1)
€ 3.00
37
2751020A10
ref: 37
SPROCKET,ENGINE(16T)
€ 38.00
38
2753101H00
ref: 38
SPACER,ENGINE SPROCKET
€ 31.50
39
2760006G40114
ref: 39
CHAIN,DRIVE
€ 162.50
40
2762006G40
ref: 40
JOINT SET,DRIVE CHAIN
€ 11.50
41
0915920004
ref: 41
NUT
€ 12.00
42
0916025009
ref: 42
WASHER(25X41X3)
€ 5.00
43
0928024010
ref: 43
O RING(D:2.4,ID:23.7)
€ 5.50
44
2475101H10
ref: 44
RETAINER,DRIVE SHAFT BEARING,L
€ 99.50
45
2477101810
ref: 45
HOUSING,DRIVE SHAFT SET
€ 88.00
46
0913906159
ref: 46
SCREW(6X20)
€ 2.50
47
0913906159
ref: 47
SCREW(6X20)
€ 2.50
48
0928068009
ref: 48
O RING(D:1.9,ID:67.5)
€ 16.00
