FUEL PUMP
GSXR600 2009 (K9) USA (E03)

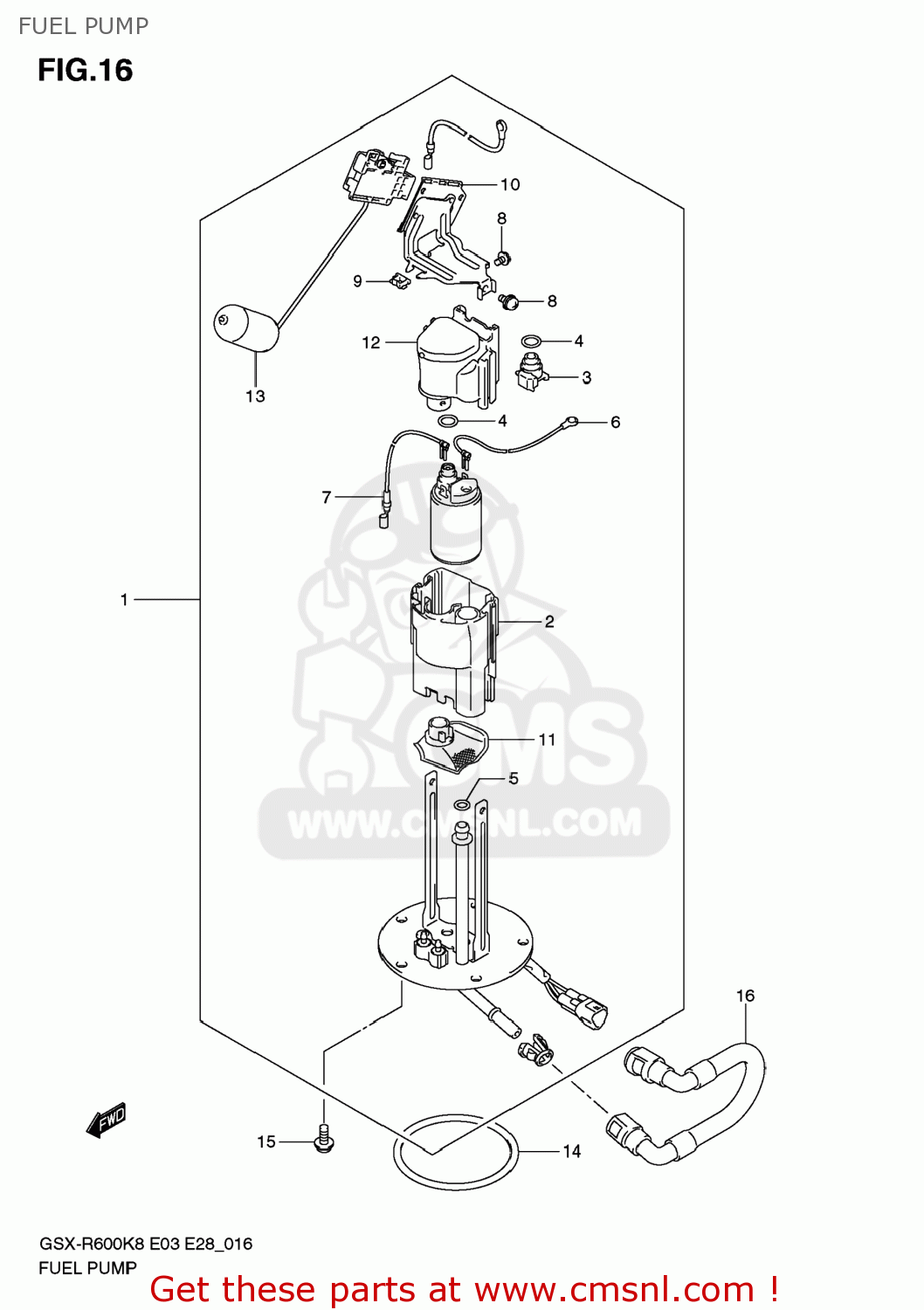

Fuel pump diagram GSXR600 2009 (K9) USA (E03)
FUEL PUMP GSXR600 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1510037H00
ref: 1
PUMP ASSY,FUEL
€ 836.00
2
1511127G00
ref: 2
CUP
€ 25.00
3
1511205H00
ref: 3
JOINT
€ 17.00
4
1511305H00
ref: 4
O RING
€ 17.00
5
1511335F00
ref: 5
O RING
€ 7.50
6
1511427G00
ref: 6
WIRE,EARTH
€ 21.00
7
1511527G00
ref: 7
WIRE,LEAD
€ 23.00
8
1511610F00
ref: 8
SCREW
€ 3.50
9
1511923H00
ref: 9
SADDLE,EDGE
€ 7.50
10
1518137H00
ref: 10
BRACKET,GAUGE
€ 26.50
11
1542005H00
ref: 11
STRAINER
€ 20.50
12
1561027G00
ref: 12
REGULATOR
€ 165.50
13
3481037H00
ref: 13
GAUGE ASSY,FUEL LEVEL
€ 205.00
14
1520135F00
ref: 14
O RING,FUEL PUMP
€ 26.00
15
071200612A
ref: 15
BOLT
€ 3.50
16
1581037H00
ref: 16
15810-37H01
HOSE,FUEL
€ 74.00
