FRAME COVER (MODEL K8)
GSXR600 2009 (K9) USA (E03)

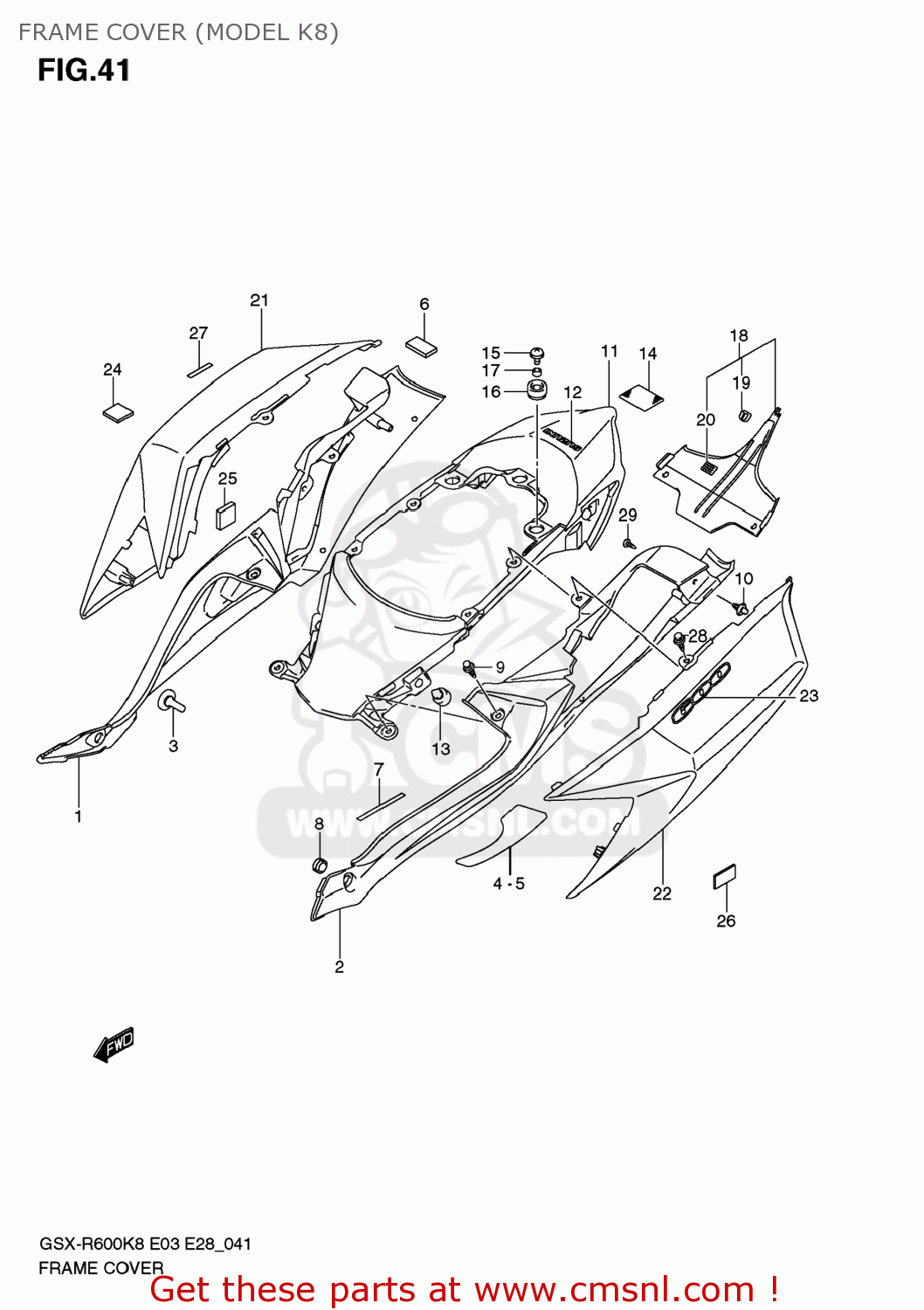

Frame cover (model k8) diagram GSXR600 2009 (K9) USA (E03)
FRAME COVER (MODEL K8) GSXR600 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4711037H00019
ref: 1
COVER,FRAME,R(BLACK)
€ 131.00
2
4721037H00019
ref: 2
COVER,FRAME,L(BLACK)
€ 99.50
3
0932106026
ref: 3
CUSHION
€ 3.50
4
4711237H00
ref: 4
TAPE,FRAME COVER,R
€ 14.00
5
4721237H00
ref: 5
TAPE,FRAME COVER,L
€ 14.00
6
4711437H00
ref: 6
CUSHION,FRAME COVER RR LWR
€ 3.50
7
4711537H00
ref: 7
TAPE,FRAME COVER FR
€ 9.50
8
4711337H00
ref: 8
CUSHION,FRAME COVER FR
€ 4.00
9
0940906328
ref: 9
CLIP
€ 3.50
10
09409063145PK
ref: 10
CLIP(BLACK)
€ 3.50
11-1
4731037H00019
ref: 11-1
COVER,FRAME CTR
€ 245.00
11-2
4731037H00YKY
ref: 11-2
COVER,FRAME CTR
€ 196.00
11-3
4731037H00YMF
ref: 11-3
COVER,FRAME CTR
€ 192.50
11-4
4731037H00YME
ref: 11-4
COVER,FRAME CTR
€ 217.00
11-5
4731037H00YBD
ref: 11-5
COVER,FRAME CTR
€ 196.00
12-1
6813121H00YU8
ref: 12-1
EMBLEM,SUZUKI
€ 11.00
12-2
6813121H00YBD
ref: 12-2
EMBLEM,SUZUKI
€ 11.00
12-3
6813121H00019
ref: 12-3
EMBLEM,SUZUKI
€ 11.00
13
0932110002
ref: 13
CUSHION(11.5X22X20)
€ 2.00
14
4457213G00
ref: 14
FASTENER
€ 6.00
15
0913606056
ref: 15
SCREW(6X16)
€ 2.00
16
4731237H00
ref: 16
CUSHION,FRAME COVER RR
€ 2.00
17
0918006283
ref: 17
SPACER(6.5X10X7)
€ 2.00
18-1
4791037H00019
ref: 18-1
COVER,FRAME RR CTR
€ 58.50
18-2
4791037H00YKY
ref: 18-2
COVER,FRAME RR CTR
€ 58.50
18-3
4791037H00YMF
ref: 18-3
COVER,FRAME RR CTR
€ 36.50
18-4
4791037H00YME
ref: 18-4
COVER,FRAME RR CTR
€ 58.50
18-5
4791037H00YBD
ref: 18-5
COVER,FRAME RR CTR
€ 58.50
19
4791337H00
ref: 19
CUSHION,FRAME COVER RR CTR
€ 3.00
20
4791237H00
ref: 20
FASTENER,FRAME COVER
€ 8.00
21-1
4771037H00YKV
ref: 21-1
COVER,FRAME RR,R
€ 143.50
21-2
4771037H00YBD
ref: 21-2
COVER,FRAME RR,R
€ 143.50
21-3
4771037H00YMD
ref: 21-3
COVER,FRAME RR,R
€ 143.50
21-4
4771037H005JX
ref: 21-4
COVER,FRAME RR,R
€ 138.50
21-5
4771037H005KX
ref: 21-5
COVER,FRAME RR,R
€ 143.50
22-1
4781037H00YKV
ref: 22-1
COVER,FRAME RR,L
€ 143.50
22-2
4781037H00YBD
ref: 22-2
COVER,FRAME RR,L
€ 147.50
22-3
4781037H00YMD
ref: 22-3
COVER,FRAME RR,L
€ 143.50
22-4
4781037H005JX
ref: 22-4
COVER,FRAME RR,L
€ 143.50
22-5
4781037H005KX
ref: 22-5
COVER,FRAME RR,L
€ 143.50
23-1
6813137H00J7A
ref: 23-1
EMBLEM,FRAME COVER
€ 9.00
23-2
6813137H00FND
ref: 23-2
EMBLEM,FRAME COVER
€ 9.00
23-3
6813137H00FNE
ref: 23-3
EMBLEM,FRAME COVER
€ 9.00
23-4
6813137H00AGR
ref: 23-4
EMBLEM,FRAME COVER
€ 8.50
23-5
6813137H00FNF
ref: 23-5
EMBLEM,FRAME COVER
€ 9.00
24
4771237H00
ref: 24
CUSHION,COVER
€ 4.00
25
4771337H00
ref: 25
CUSHION,SIDE
€ 5.50
26
4551601H00
ref: 26
CUSHION,SEAT TAIL COVER LWR RR
€ 3.50
27
4551716G00
ref: 27
TAPE,SEAT TAIL COVER
€ 6.50
28
0940906328
ref: 28
CLIP
€ 3.50
29
035410512A
ref: 29
SCREW
€ 2.00
