REAR FENDER LOWER
GSXR600 2009 (K9) USA (E03)

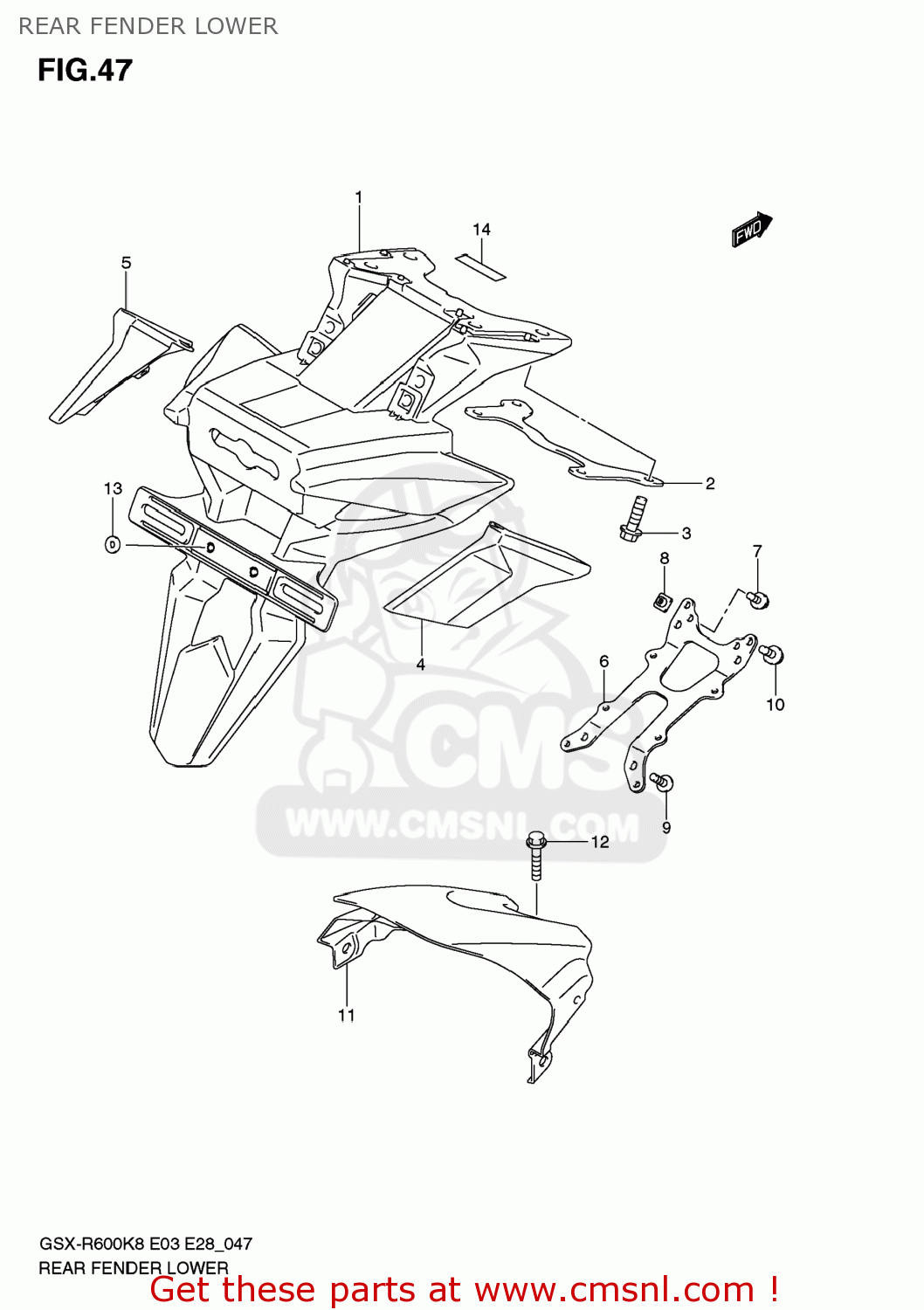

Rear fender lower diagram GSXR600 2009 (K9) USA (E03)
REAR FENDER LOWER GSXR600 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6311337H00
ref: 1
FENDER,RR RR
€ 95.00
2
6312237H00
ref: 2
PLATE,RR FENDER RR
€ 20.50
3
0910306282
ref: 3
BOLT(6X25)
€ 1.50
4
6317037H00YMC
ref: 4
COVER,RR FENDER RR,R
€ 43.50
5
6318037H00YMC
ref: 5
COVER,RR FENDER RR,L
€ 43.50
6
6312137H00
ref: 6
BRACKET,RR FENDER RR
€ 44.50
7
0913906108
ref: 7
SCREW(6X12)
€ 3.00
8
0915206024
ref: 8
NUT
€ 4.50
9
035410616B
ref: 9
SCREW
€ 2.00
10
071200510B
ref: 10
BOLT
€ 2.00
11
6311401H02
ref: 11
FENDER,RR LWR
€ 32.00
12
0910306302
ref: 12
BOLT(6X14)
€ 2.50
13
083220106A
ref: 13
WASHER
€ 2.00
14
9442303H00
ref: 14
CUSHION,PANEL NO.1
€ 3.50
