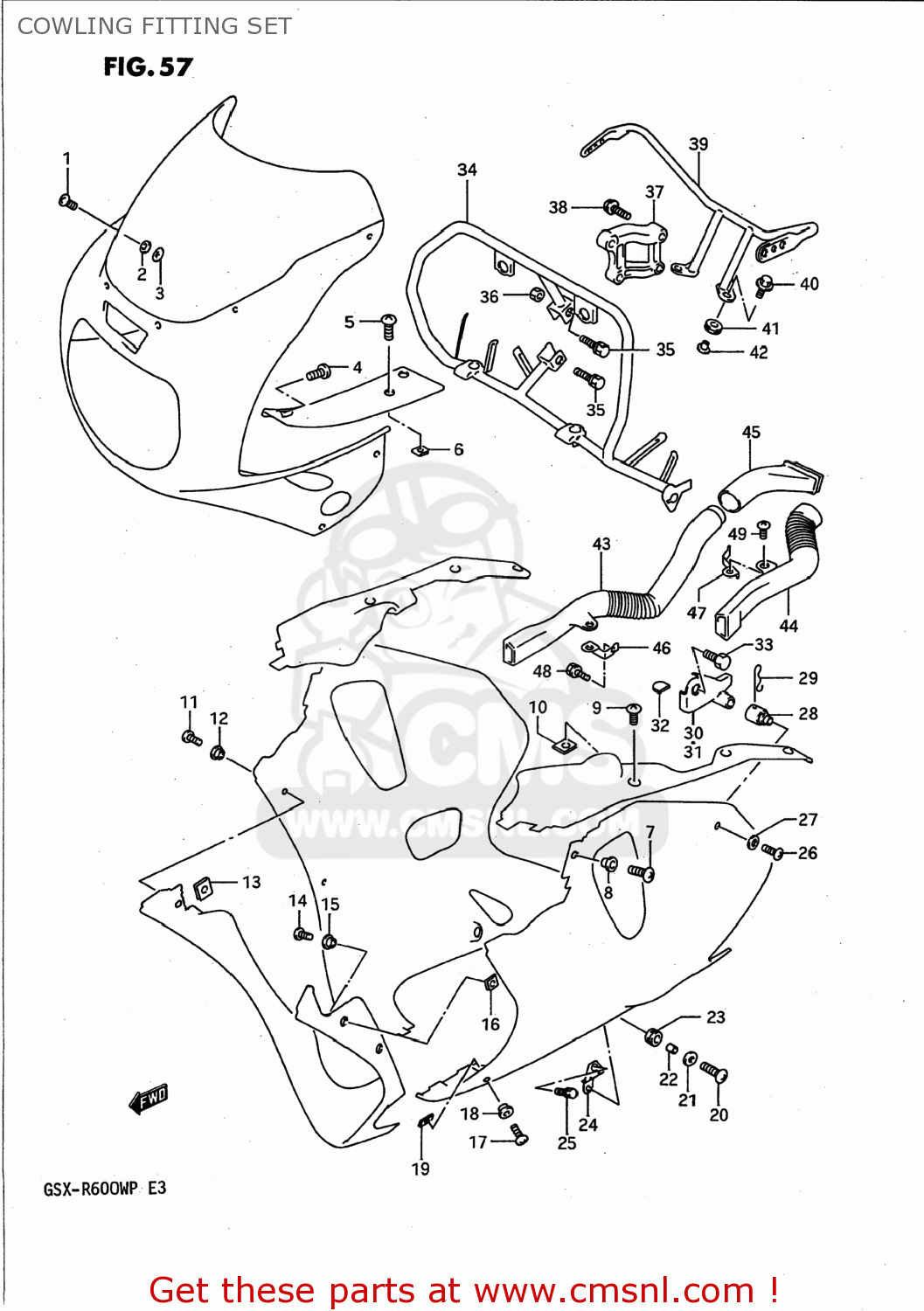

COWLING FITTING SET

ref

part #

description

quantity

1

9461622D00
ref: 1

PIN,WINDSCREEN

€ 2.50

2

0932004007
ref: 2
09320-04501

CUSHION

€ 3.00

3

0914804032
ref: 3

NUT

€ 2.50

4

0214205124
ref: 4
02142-0512A

SCREW, FRONT & REAR

€ 1.50

5

0324205124
ref: 5
03241-0512A

SCREW

€ 1.50

6

0914805004
ref: 6
09148-05013

NUT

€ 1.50

7

0913905032
ref: 7

SCREW(5X18)

€ 2.50

8

0916105018
ref: 8

WASHER(5.2X14X1.5)

€ 6.50

9

0324205124
ref: 9
03241-0512A

SCREW

€ 1.50

10

0914805004
ref: 10
09148-05013

NUT

€ 1.50

11

0913905032
ref: 11

SCREW(5X18)

€ 2.50

12

0916105017
ref: 12

WASHER(5.2X14X1.5)

€ 3.00

13

9448412C11
ref: 13

NUT,RH & CTR UNDER COWLING

€ 6.50

14

0324205165
ref: 14
03241-0516A

SCREW

€ 1.50

15

0916105017
ref: 15

WASHER(5.2X14X1.5)

€ 3.00

16

0914805004
ref: 16
09148-05013

NUT

€ 1.50

17

0913905032
ref: 17

SCREW(5X18)

€ 2.50

18

0916105017
ref: 18

WASHER(5.2X14X1.5)

€ 3.00

19

9448412C11
ref: 19

NUT,RH & CTR UNDER COWLING

€ 6.50

20

0913906029
ref: 20

SCREW(6X25)

€ 5.00

21

0916006056
ref: 21

WASHER(6.5X18X1)

€ 2.00

22

0918006114
ref: 22
09180-06307

SPACER (6.1X9X10)

€ 3.00

23

0932009016
ref: 23

CUSHION

€ 2.50

24-1

9474017E00
ref: 24-1

BRACKET,UNDER COWLING LWR,R

€ 9.50

24-2

9484017E00
ref: 24-2
94840-17E01

BRACKET,UNDER COWLING

€ 9.50

25

0911606027
ref: 25
09116-06024

BOLT

€ 2.00

26

0913906028
ref: 26

SCREW(6X20)

€ 3.50

27

0916006053
ref: 27
09160-06125

WASHER

€ 2.00

28

9452012C00
ref: 28

PLUG,UNDER COWL FTG,CTR

€ 9.00

29

9452312C00
ref: 29
94523-12C0V

PIN,UNDER COWLING FITTING PIPE

€ 2.50

30

9453017E00
ref: 30
94530-17E01

BRACE,UNDER COWLING,UPPER

€ 13.50

31

9454017E00
ref: 31
94540-17E01

BRACE,UNDER COWLING,UPPER

€ 12.50

32

9455117E00
ref: 32

CUSHION,UPR BRACE

€ 4.50

33

0113706125
ref: 33
01570-0612A

BOLT, BRACKET (6X12)

€ 1.50

34

9451017E00
ref: 34

BRACE,COWLING

€ 228.50

35

0113708308
ref: 35
01570-08307

BOLT,BRACE (8X30)

€ 3.50

36

0831321087
ref: 36
08313-20087

NUT 8MM

€ 2.50

37

9453141C00
ref: 37

BRACE,COWLING CTR

€ 46.50

38

0118708408
ref: 38
01580-08407

BOLT,BRACE (8X40)

€ 3.50

39

9452017E00
ref: 39

BRACE,RR VIEW MIRRORR

€ 152.00

40

0911606143
ref: 40
09116-06115

BOLT 6X20

€ 2.00

41

0932009009
ref: 41

CUSHION

€ 5.00

42

0916906062
ref: 42

WASHER

€ 3.00

43

9445117E00
ref: 43

PIPE,AIR INTAKE FR,R

€ 40.50

44

9445217E00
ref: 44

PIPE,AIR INTAKE FR,L

€ 40.50

45

9445317C00
ref: 45

PIPE,AIR INTAKE RR,R

€ 23.50

46

9445417E00
ref: 46
94454-17E01

JOINT,AIR INTAKE

€ 11.50

47

9445517E00
ref: 47
94455-17E01

BRACKET,AIR INTAKE,LEFT

€ 10.00

48

0113706125
ref: 48
01570-0612A

BOLT, BRACKET (6X12)

€ 1.50

49

0214206125
ref: 49
02142-0612A

SCREW 6X12

€ 2.00
