WIRING HARNESS
GSXR600W 1992 (N) USA (E03)

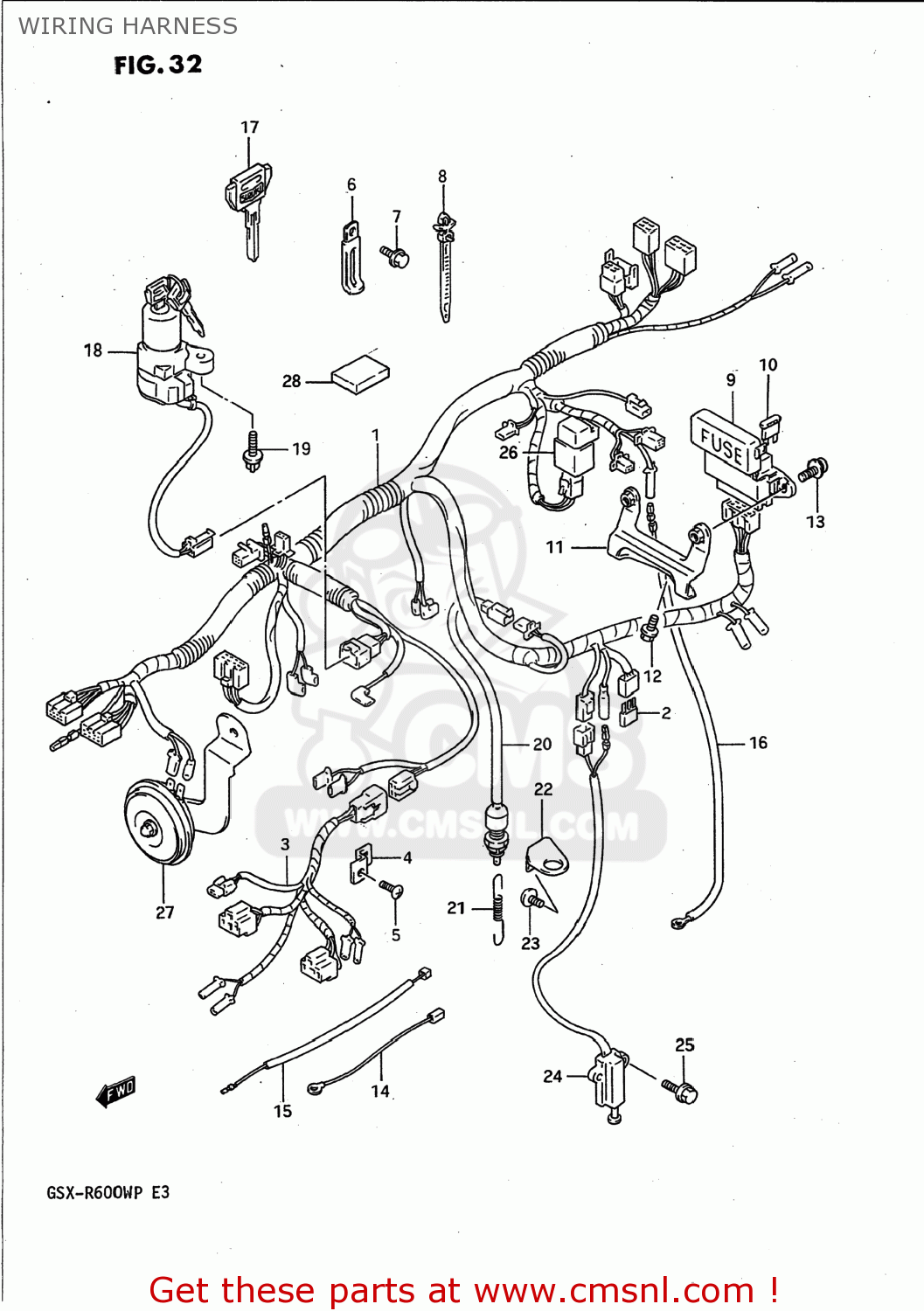

Wiring harness diagram GSXR600W 1992 (N) USA (E03)
WIRING HARNESS GSXR600W 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661017E10
ref: 1
36610-17E13
HARNESS,WIRING NO.1
€ 457.50
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
€ 13.00
3
3662017E10
ref: 3
36856-18D01
HARNESS,WIRING NO.2
€ 95.00
4-1
3668717E00
ref: 4-1
HOLDER,COUPLER
€ 6.00
4-2
3668717E10
ref: 4-2
HOLDER,COUPLER
€ 8.50
5
0214205103
ref: 5
02142-0510B
SCREW
€ 2.50
6-1
0940406402
ref: 6-1
09404-06432
CLAMP
€ 2.50
6-2
0940406403
ref: 6-2
09404-06432
CLAMP
€ 2.50
6-3
0940406404
ref: 6-3
09404-06433
CLAMP
€ 3.00
6-4
0940406405
ref: 6-4
09404-06433
CLAMP
€ 3.00
6-5
0940406415
ref: 6-5
09404-06433
CLAMP
€ 3.00
6-6
0940406425
ref: 6-6
CLAMP(L:80)
€ 3.00
6-7
0940408403
ref: 6-7
09404-08420
CLAMP
€ 3.50
6-8
0940410403
ref: 6-8
09404-10205
CLAMP
€ 2.50
7
0151706126
ref: 7
01550-0612A
BOLT
€ 2.50
8-1
0940711402
ref: 8-1
CLAMP(L:90)
€ 2.50
8-2
0940714403
ref: 8-2
CLAMP(L:125)
€ 2.50
8-3
0940718402
ref: 8-3
CLAMP(L:165)
€ 2.50
8-4
0940725401
ref: 8-4
CLAMP(L:235)
€ 4.00
9
3674017D00
ref: 9
BOX ASSY,FUSE
€ 72.00
10-1
0948110101
ref: 10-1
FUSE(10A)
€ 2.50
10-2
0948120101
ref: 10-2
FUSE(20A)
€ 2.00
11
4741017E00
ref: 11
BRACKET,FUSE BOX
€ 13.50
12
0151706128
ref: 12
01550-06127
BOLT
€ 2.50
13
0211276165
ref: 13
02112-7616A
VIS
€ 2.00
14
3685102900
ref: 14
WIRE,LEAD
€ 4.00
15
3685117E00
ref: 15
WIRE,WATER TEMP GAUGE LEAD
€ 7.50
16
3685317E00
ref: 16
36851-46E00
WIRE
€ 14.00
17
3714603A80
ref: 17
37146-26D10
KEY,BLANK
€ 41.50
18
3710033D00
ref: 18
37100-26D03
LOCK ASSEMBLY,STEERING
€ 134.00
19
0913906026
ref: 19
SCREW(6X18)
€ 2.50
20
3774045D00
ref: 20
37740-31D00
SWITCH ASSY,STOP LAMP
€ 20.50
21
0944306012
ref: 21
SPRING
€ 3.00
22
4325033C00
ref: 22
BRACKET,STOP LAMP SWITCH
€ 5.00
23
0913906027
ref: 23
SCREW(6X12)
€ 3.00
24
3784048B21
ref: 24
37840-12X50
SWITCH ASSEMBLY,SIDE STAND
€ 76.00
25
0151706204
ref: 25
01550-0620A
BOLT 6X20
€ 2.50
26
3874024B10
ref: 26
38740-24X50
RELAY ASSEMBLY
€ 37.50
27
3850217E00
ref: 27
38502-17E12
HORN ASSEMBLY,LOW PITCH
€ 78.00
28
3692010B00
ref: 28
TAPE
€ 3.00
