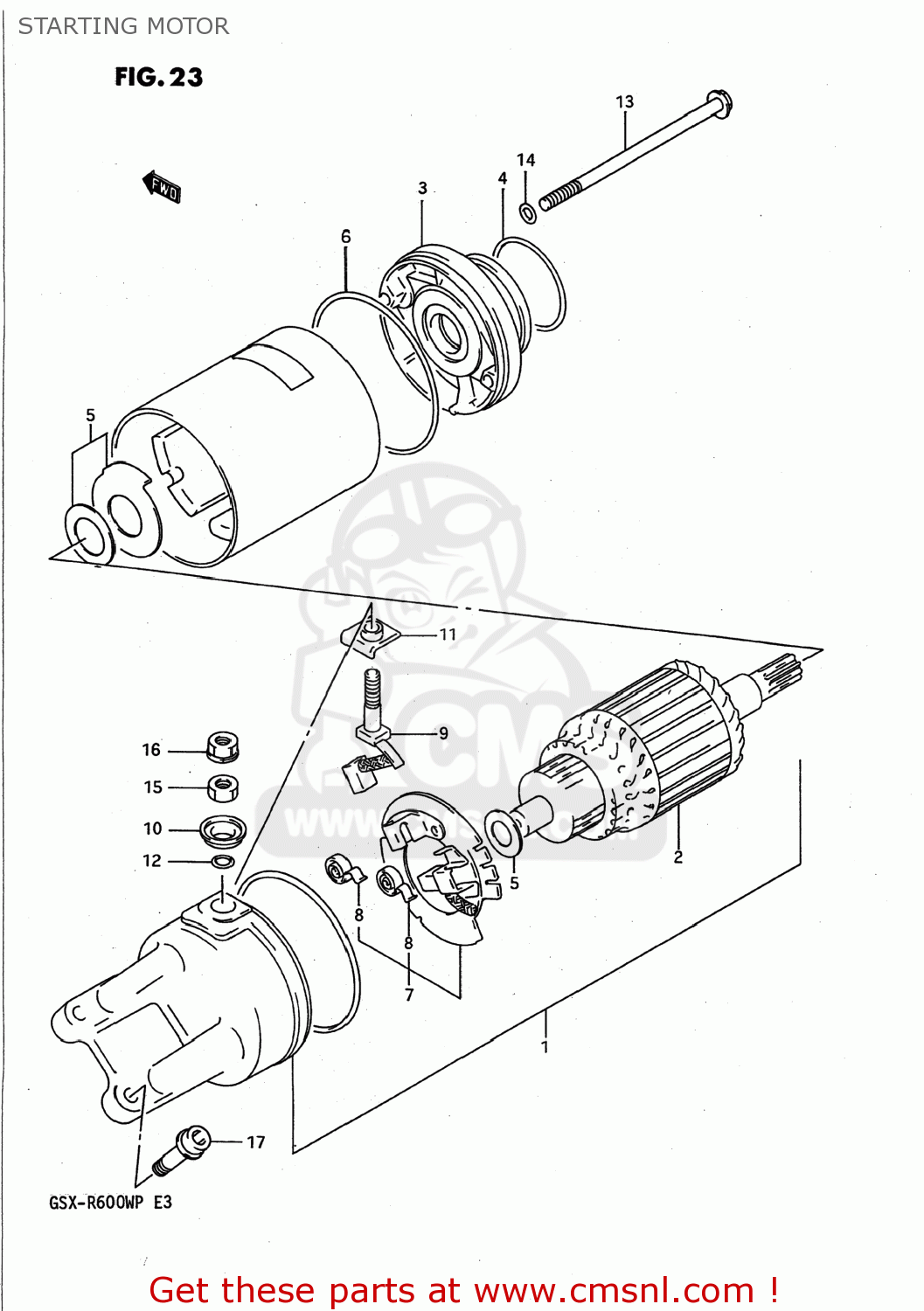

STARTING MOTOR

ref

part #

description

quantity

1

3110017E00
ref: 1
31100-46E00

MOTOR ASSEMBLY,STARTING

€ 730.00

2

3131017E00
ref: 2

ARMATURE

€ 123.50

3

3115017E00
ref: 3

HOUSING

€ 64.00

4

3115648B00
ref: 4

O RING

€ 8.50

5

3117043400
ref: 5

SHIM SET,STARTING MOTOR

€ 3.50

6

3126444110
ref: 6

O RING

€ 8.00

7

3113217E00
ref: 7

HOLDER,BRUSH

€ 54.00

8

3113565010
ref: 8

SPRING

€ 3.00

9

3113038300
ref: 9

BRUSH SUB ASSY,STARTING MOTOR

€ 12.50

10

3117238300
ref: 10

BUSHING

€ 4.00

11

3117138300
ref: 11

BUSH,B

€ 5.50

12

3114338300
ref: 12

O RING

€ 3.50

13

3128188C00
ref: 13

BOLT

€ 8.50

14

3115638300
ref: 14

O RING

€ 3.00

15

0831022067
ref: 15
08310-00067

NUT 6MM

€ 2.50

16

0836135066
ref: 16
08361-3506A

NUT

€ 2.00

17

0712006258
ref: 17
07120-06257

BOLT,BRACKET

€ 3.00
