FUEL TANK (MODEL P)
GSXR600W 1992 (N) USA (E03)

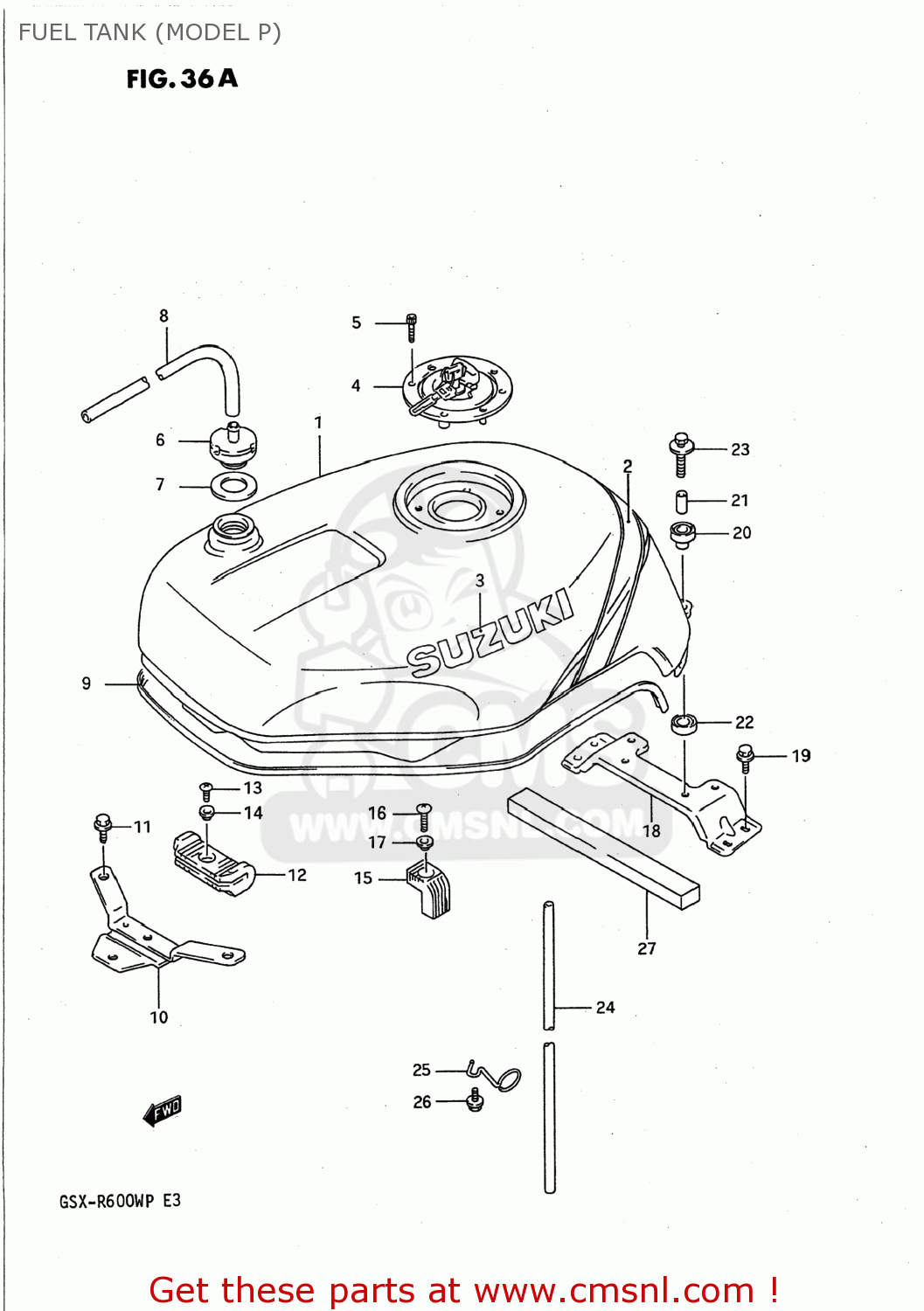

Fuel tank (model p) diagram GSXR600W 1992 (N) USA (E03)
FUEL TANK (MODEL P) GSXR600W 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410017EA01JX
ref: 1-1
44100-17EA1-1JX
TANK ASSEMBLY,FUEL
€ 927.50
1-2
4410017EA0N63
ref: 1-2
44100-17EA1-N63
TANK ASSEMBLY,FUEL
€ 532.50
1-3
4410017EC01JX
ref: 1-3
44100-17EC2-1JX
TANK ASSEMBLY,FUEL
€ 484.00
1-4
4410017EC0N63
ref: 1-4
44100-17EC2-N63
TANK ASSEMBLY,FUEL
€ 399.00
2-1
6811517E11A8E
ref: 2-1
TAPE,FUEL TANK
€ 49.00
2-2
6811517E11A8F
ref: 2-2
TAPE,FUEL TANK
€ 39.50
3-1
6811112C000JW
ref: 3-1
68111-12C30-0JW
EMBLEM,FUEL TANK
€ 21.00
3-2
6811112C0020H
ref: 3-2
68111-12C30-20H
EMBLEM,FUEL TANK
€ 15.50
4
4420101851
ref: 4
44201-01852
CAP SET,FUEL TANK
€ 166.50
5
0910605017
ref: 5
BOLT(5X20)
€ 3.00
6-1
4424006B10
ref: 6-1
PLUG,FUEL TANK BREATHER
€ 36.00
6-2
4424028A01
ref: 6-2
(CA) VALVE,FUEL TANK BREATHER
€ 65.00
7-1
0916812012
ref: 7-1
GASKET(12.5X20X2.5) (NAS)
€ 2.00
7-2
0916827001
ref: 7-2
GASKET 27X40X2.5 (NAS)
€ 2.50
8
0935250823600
ref: 8
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
9
6824117E00
ref: 9
68241-04X50-00B
MOLDING,FUEL TANK
€ 23.00
10
4452017E03
ref: 10
BRACKET,FUEL TANK,FRONT
€ 32.50
11
0151706167
ref: 11
01550-06167
BOLT 6X16
€ 1.50
12
4451141C00
ref: 12
CUSHION,FUEL TANK FR
€ 13.50
13
0214205104
ref: 13
02142-0510B
SCREW 5X10
€ 2.50
14
0916905012
ref: 14
WASHER
€ 3.00
15
4454533C00
ref: 15
44545-33C01
CUSHION,FUEL TANK
€ 11.50
16
0214206207
ref: 16
SCREW
€ 2.00
17
0916906051
ref: 17
09169-06055
WASHER
€ 2.50
18
4453017E01
ref: 18
44530-17E02
BRACKET,FUEL TANK,REAR
€ 29.50
19
0151706167
ref: 19
01550-06167
BOLT 6X16
€ 1.50
20
0932010038
ref: 20
CUSHION
€ 4.00
21
0918006072
ref: 21
09180-06271
SPACER
€ 2.00
22
0932014017
ref: 22
CUSHION
€ 3.00
23
0110706356
ref: 23
01500-0635A
BOLT ,6X35
€ 2.50
24
093527010300A
ref: 24
09352-70103-00B
HOSE (7X10.2X1000)
€ 17.50
25
4448117E01
ref: 25
GUIDE,DRAIN HOSE
€ 6.00
26
0151706128
ref: 26
01550-06127
BOLT
€ 2.50
27
1384117E00
ref: 27
CUSHION,AIR SEAL
€ 18.00
