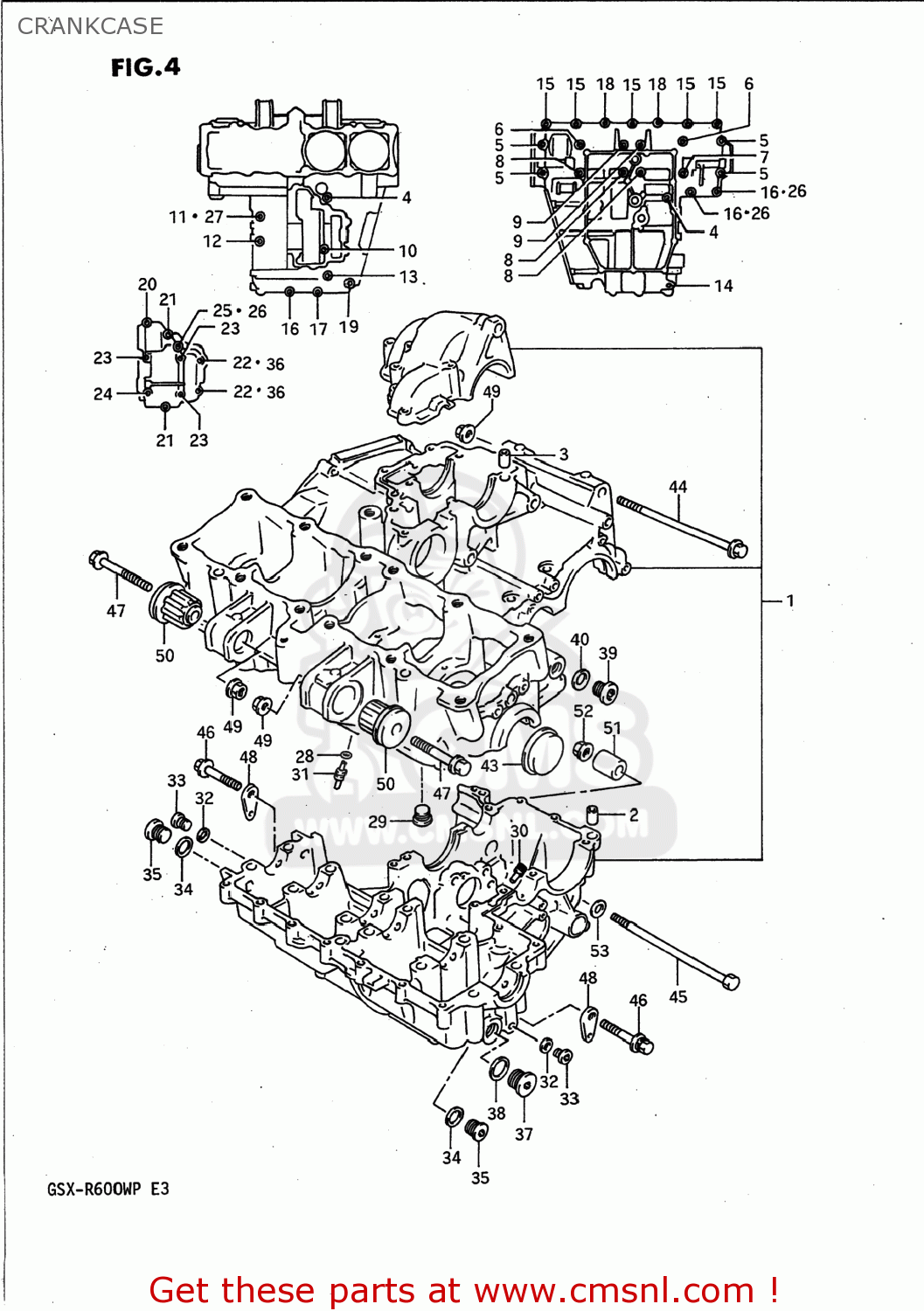

CRANKCASE

ref

part #

description

quantity

1-1

1130017843
ref: 1-1
11302-46873

CRANKCASE SET

€ 2,080.50

1-2

1130017846
ref: 1-2
11302-46875

CRANKCASE SET

€ 2,080.50

2

0920613004
ref: 2

PIN(10.4X13X22)

€ 3.00

3

0421109129
ref: 3

PIN

€ 2.00

4

0910306163
ref: 4

BOLT(6X105)

€ 4.00

5

0910309007
ref: 5

BOLT 9X80

€ 5.50

6

0910309008
ref: 6

BOLT(9X95)

€ 6.00

7

0910309009
ref: 7

BOLT(9X105)

€ 8.00

8

0910309010
ref: 8

BOLT(9X115)

€ 6.00

9

0910609001
ref: 9

BOLT(9X60)

€ 6.00

10

0711006758
ref: 10
07130-0675B

BOLT

€ 3.00

11

0711008508
ref: 11
07130-0850A

BOLT ,8X50

€ 3.50

12

0711008608
ref: 12
07130-0860B

BOLT, REAR RH

€ 4.50

13

0713008808
ref: 13
07130-0880B

BOLT

€ 3.00

14

0151708605
ref: 14
01550-0860A

BOLT 8X60

€ 3.50

15

0151706354
ref: 15
01550-0635A

BOLT 6X35

€ 2.50

16

0151706404
ref: 16
01550-0640A

BOLT

€ 2.00

17

0151706408
ref: 17
01550-06407

BOLT

€ 2.50

18

0151706505
ref: 18
01550-0650A

BOLT 6X50

€ 2.00

19

0151706655
ref: 19

BOLT

€ 2.50

20

0711006257
ref: 20
07130-06257

BOLT

€ 2.50

21

0711006357
ref: 21
07130-06357

BOLT

€ 3.50

22

0711006408
ref: 22
07130-06407

BOLT

€ 2.50

23

0711006508
ref: 23
07130-0650B

BOLT

€ 3.00

24

0711006608
ref: 24
07130-0660B

BOLT

€ 3.00

25

0910306062
ref: 25

BOLT(6X145)

€ 3.50

26

0916806018
ref: 26

GASKET(6.2X13X1.2) (NAS)

€ 2.00

27

0916808016
ref: 27

GASKET(8.2X14X1) (NAS)

€ 1.00

28

0928004004
ref: 28

O RING(D:1.2,ID:4)

€ 2.00

29

0924818002
ref: 29
09248-18005

PLUG,CRANKCASE,UPPER

€ 4.00

30

0949324010
ref: 30

JET

€ 12.00

31

0949380008
ref: 31

JET,OIL GALLERY

€ 8.50

32

0916810002
ref: 32

GASKET(10X14X3.6) (NAS)

€ 2.00

33

0924810007
ref: 33

PLUG(10X6.8)

€ 4.50

34

0916816002
ref: 34

GASKET(16X22X2) (NAS)

€ 2.00

35

0924816010
ref: 35
09248-16012

PLUG

€ 4.50

36

0916806024
ref: 36

GASKET(5.8X11X1.2) (NAS)

€ 2.00

37

0924822002
ref: 37

PLUG(22X11)

€ 9.00

38

0916822002
ref: 38

GASKET(22X27X2) (NAS)

€ 3.50

39

0924814010
ref: 39

PLUG

€ 5.00

40

0916814004
ref: 40

GASKET(14X19.2X2) (NAS)

€ 2.50

41

1222817E000D0
ref: 41

BEARING,CRANK THRUST(GREEN)

€ 8.00

41

1222817E000D0
ref: 41

BEARING,CRANK THRUST(GREEN)

€ 8.00

42-1

1222817E000A0
ref: 42-1

BEARING,CRANK THRUST(RED)

€ 7.50

42-1

1222817E000A0
ref: 42-1

BEARING,CRANK THRUST(RED)

€ 7.50

42-2

1222817E000B0
ref: 42-2

BEARING,CRANK THRUST(BLACK)

€ 7.50

42-3

1222817E000C0
ref: 42-3

BEARING,CRANK THRUST(BLUE)

€ 7.50

42-4

1222817E000D0
ref: 42-4

BEARING,CRANK THRUST(GREEN)

€ 8.00

42-5

1222817E000E0
ref: 42-5

BEARING,CRANK THRUST(YELLOW)

€ 7.50

42-6

1222817E000F0
ref: 42-6

BEARING,CRANK THRUST(WHITE)

€ 7.50

43

0924137002
ref: 43

PLUG

€ 13.50

44

0910310139
ref: 44
09103-10078

BOLT 10X150

€ 8.50

45-1

0910012028
ref: 45-1

BOLT(12X185)

€ 6.00

45-2

0910012043
ref: 45-2

BOLT,ENGINE MOUNTING,REAR,LOWER

€ 7.00

46

0198710558
ref: 46
01580-1055B

BOLT

€ 3.00

47

0151710558
ref: 47
01550-10557

BOLT 10X55

€ 3.00

48

1161333C00
ref: 48

NUT,ENGINE MOUNT,LOWER

€ 7.50

49

0915910058
ref: 49
09159-10115

NUT

€ 4.00

50

1168127A00
ref: 50

BUSH,ENGINE MOUNTING

€ 27.00

51-1

1161140C01
ref: 51-1

SPACER,ENGINE MOUNTING

€ 9.50

51-2

1161119B11
ref: 51-2
11611-19B13

SPACER,ENGINE MOUNT

€ 10.00

52

0831931128
ref: 52
08319-3112A

NUT 12MM

€ 4.00

53

0832211128
ref: 53
08322-01127

WASHER

€ 2.00
