prices are in EUR

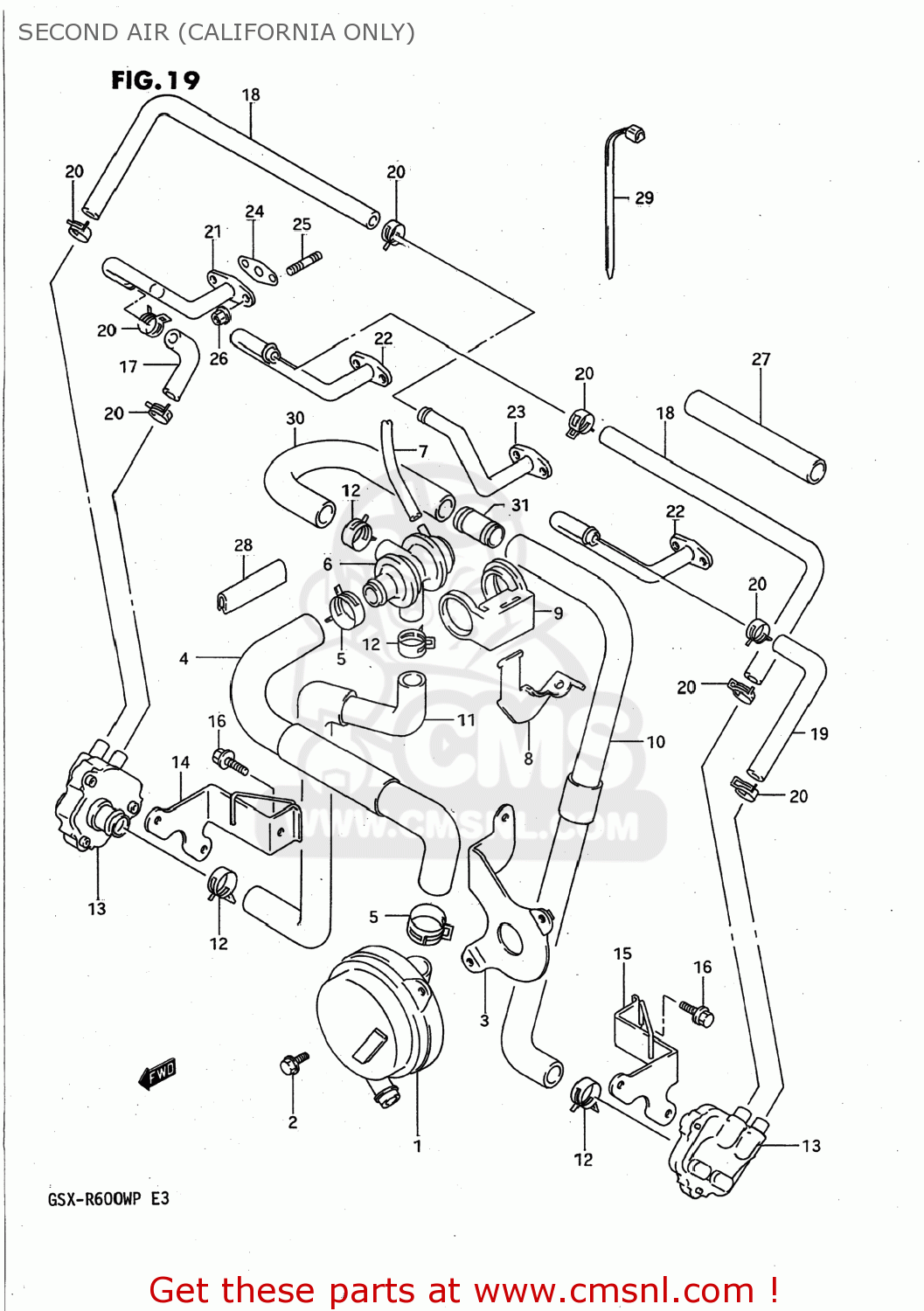

ref
part #
description
quantity
1-1
CLEANER ASSEMBLY,SECOND AIR
1-2
CLEANER ASSEMBLY,SECOND AIR
2
BOLT 6X12
4
HOSE,SECOND AIR CLEANER
6
VALVE ASSY,2ND AIR SWITCHING
8
BRACKET,SECOND AIR VALVE
9
CUSHION,2ND AIR VALVE
10-1
HOSE,SECOND AIR VALVE NO
10-2
HOSE,SECOND AIR VALVE NO
11-1
HOSE,SECOND AIR VALVE NO
11-2
HOSE,SECOND AIR VALVE NO
13
VALVE ASSY,2ND AIR REED
14
BRACKET,REED VALVE,RIGHT
15
BRACKET COMP,REED VALVE
17-1
HOSE,SECOND AIR REED VALVE
17-2
HOSE,SECOND AIR REED VALVE
18
HOSE,SECOND AIR REED VALVE
19
HOSE,SECOND AIR REED VALVE
21-1
PIPE,SECOND AIR NO.4
21-2
PIPE,SECOND AIR NO.4
22-1
PIPE,SECOND AIR NO.1
22-2
PIPE,SECOND AIR NO.4
24
GASKET,SECOND AIR PIPE (N (NAS)
26
NUT 6MM
27
TUBE, INTERFERENCE HOSE
28
MOLDING,FUEL TANK RR
29
CLAMP(L:165)
30
HOSE,SECOND AIR VALVE NO
31
UNION,SECOND AIR VALVE HOSE
