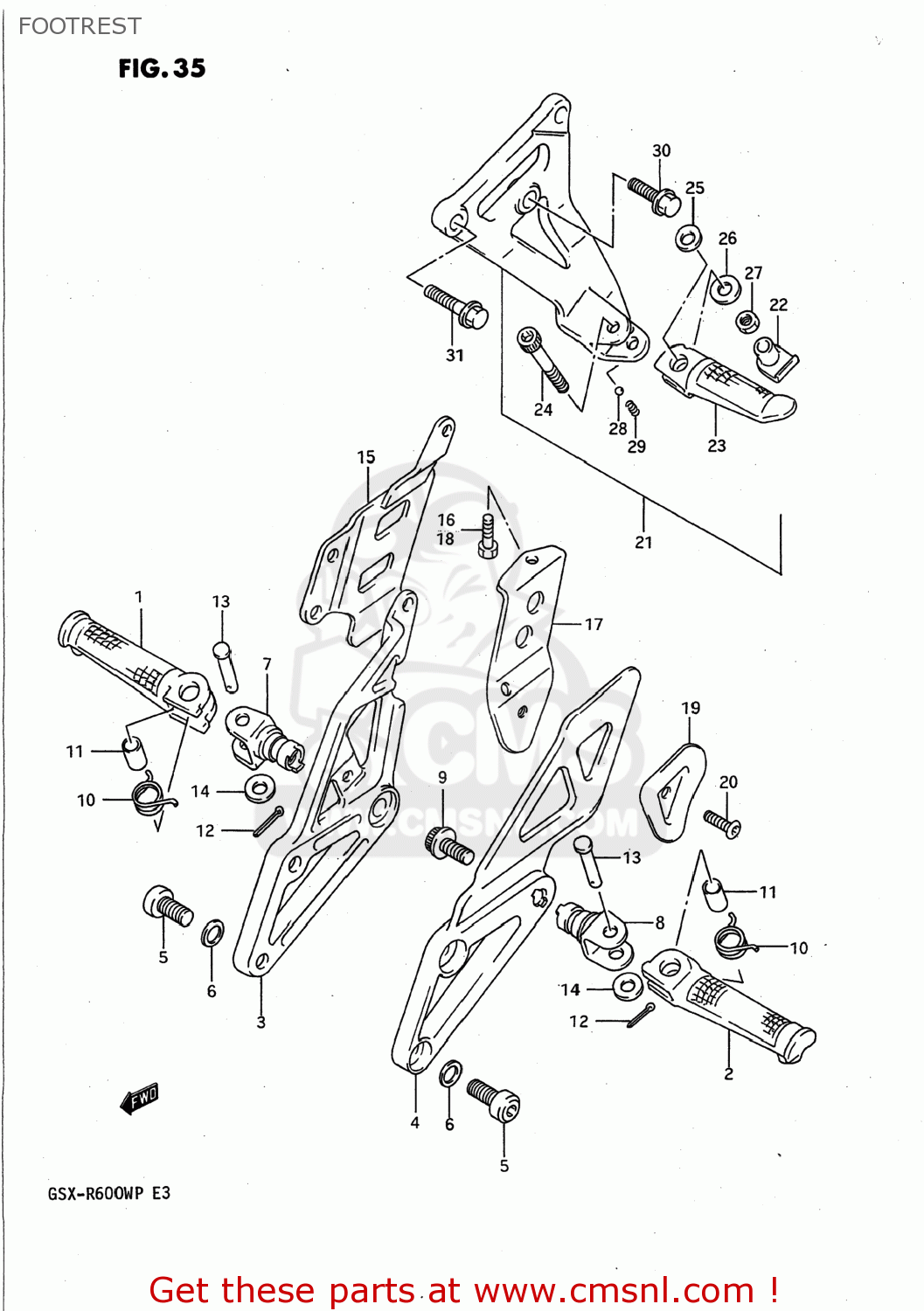

FOOTREST

ref

part #

description

quantity

1

4351117C02
ref: 1

BAR,FOOTREST,R

€ 48.50

2

4352117C02
ref: 2

BAR,FOOTREST,L

€ 48.50

3

4351117E00
ref: 3
43511-17E01

BAR,FRONT FOOTREST

€ 137.00

4

4352217E00
ref: 4
43522-17E02

BRACKET,FRONT FOOTREST

€ 130.50

5

4352917E00
ref: 5
07130-1020B

BOLT,FOOTREST BRACKET

€ 3.50

6

0916410010
ref: 6

WASHER

€ 6.50

7

4353017E00
ref: 7
43530-17E01

HOLDER,FOOTREST,RIGHT

€ 33.00

8

4354017E00
ref: 8

HOLDER,FOOTREST,L

€ 33.00

9

0910610052
ref: 9

BOLT(10X24)

€ 6.00

10

0944819020
ref: 10
09448-18022

SPRING

€ 3.50

11

0918008149
ref: 11

SPACER(8.1X12X22)

€ 7.00

12

0411125158
ref: 12
04111-2515A

PIN 20X15

€ 1.50

13

0920008057
ref: 13

PIN

€ 3.00

14

0916008043
ref: 14

WASHER(8.5X18X1)

€ 1.50

15-1

4357017E00
ref: 15-1

GUARD,FRONT FOOTREST,RIGHT

€ 90.50

15-2

4357146E00
ref: 15-2
43570-17E00

GUARD,FRONT FOOTREST,RIGHT

€ 90.50

16

0117406256
ref: 16
01580-06253

BOLT

€ 2.00

17

4353117E01
ref: 17

REINFORCEMENT,FOOTREST,L

€ 30.50

18

0117406256
ref: 18
01580-06253

BOLT

€ 2.00

19

4353217E00
ref: 19

PLATE,REINFORCEMENT,L

€ 10.00

20

0913906027
ref: 20

SCREW(6X12)

€ 3.00

21-1

4360017E00
ref: 21-1

FOOTREST ASSY,PILLION,R

€ 201.50

21-2

4370017E00
ref: 21-2

FOOTREST ASSY,PILLION,L

€ 201.50

22-1

4359017E00
ref: 22-1

BOSS,PILLION FOOTREST,L

€ 11.50

22-2

4358017E00
ref: 22-2

BOSS,PILLION FOOTREST,R

€ 12.00

23-1

4361132C00
ref: 23-1

BAR,PILLION FOOTREST R

€ 31.00

23-2

4362132C00
ref: 23-2

BAR,PILLION FOOTREST L

€ 31.00

24

0711008508
ref: 24
07130-0850A

BOLT ,8X50

€ 3.50

25

0916008043
ref: 25

WASHER(8.5X18X1)

€ 1.50

26

0832211088
ref: 26
08322-01087

WASHER

€ 2.00

27

0831921088
ref: 27
08319-2108A

NUT

€ 1.50

28

0611107004
ref: 28

BALL

€ 1.50

29

0944005003
ref: 29

SPRING

€ 1.50

30

0151708207
ref: 30
01550-08207

BOLT

€ 3.00

31

0151708307
ref: 31
01550-08307

BOLT 8X30

€ 3.50
