FRAME
GSXR600W 1993 (P) USA (E03)

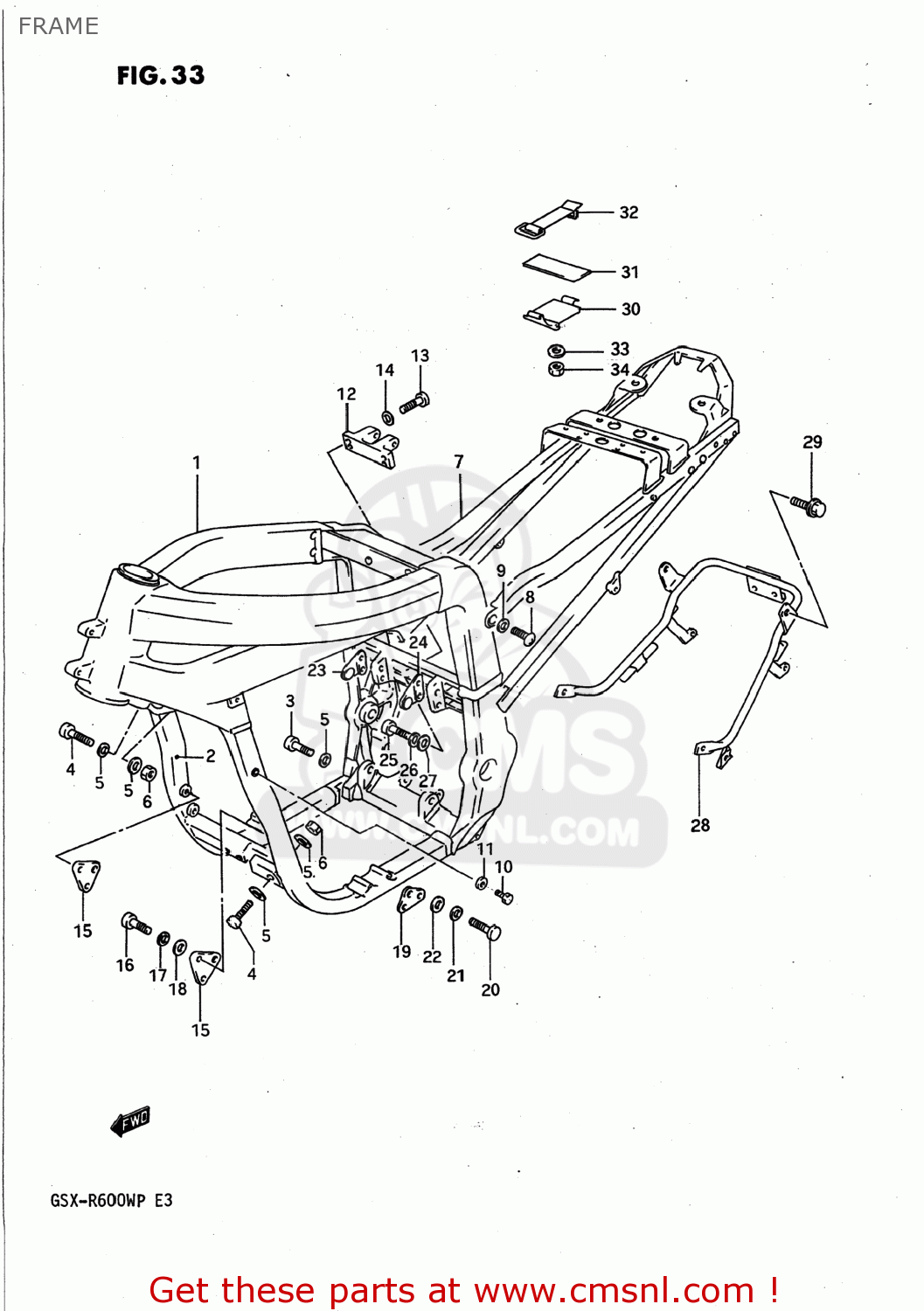

Frame diagram GSXR600W 1993 (P) USA (E03)
FRAME GSXR600W 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110117840
ref: 1-1
41101-17870
FRAME
€ 4,015.50
1-2
4110117850
ref: 1-2
FRAME
€ 4,015.50
2-1
4114017E00
ref: 2-1
TUBE COMP,FRAME DOWN,RIGHT
€ 409.50
2-2
4114017E10
ref: 2-2
TUBE,FRAME
€ 0.00
3
0151710308
ref: 3
01550-10307
BOLT
€ 3.50
4
0192710458
ref: 4
01550-1045B
BOLT
€ 3.00
5
0916010013
ref: 5
09160-10123
WASHER (10.1X21X2.3)
€ 2.00
6
0915910027
ref: 6
NUT
€ 3.00
7
4120017E00
ref: 7
41200-17E01
RAIL,SEAT
€ 1,346.50
8
4352917D00
ref: 8
09139-10004
BOLT,FOOTREST BRACKET
€ 5.50
9
0916410010
ref: 9
WASHER
€ 6.50
10
0110706207
ref: 10
01500-06207
BOLT
€ 2.00
11
0916806001
ref: 11
GASKET(6.2X11X1) (NAS)
€ 1.50
12
4176217E00
ref: 12
BRACKET,R.C.U.
€ 89.00
13
0910608056
ref: 13
BOLT(8X28)
€ 2.00
14
0916408015
ref: 14
WASHER
€ 3.00
15
4191117E00
ref: 15
PLATE,ENG MTG NO.1
€ 27.00
16
0711008257
ref: 16
07130-08257
BOLT, FRONT LH
€ 3.50
17
0832131087
ref: 17
08321-01087
WASHER,LOCK
€ 2.00
18
0916008010
ref: 18
09160-08054
WASHER (8.2X20X1.6)
€ 1.50
19-1
4192117E00
ref: 19-1
PLATE,ENGINE MOUNTING
€ 8.50
19-2
4193117E00
ref: 19-2
PLATE,ENG MTG NO.2,R
€ 8.00
20
0711008257
ref: 20
07130-08257
BOLT, FRONT LH
€ 3.50
21
0832131087
ref: 21
08321-01087
WASHER,LOCK
€ 2.00
22
0916008010
ref: 22
09160-08054
WASHER (8.2X20X1.6)
€ 1.50
23
4194017E00
ref: 23
PLATE,ENGINE MOUNTING NO.3
€ 14.50
24
4195017E00
ref: 24
PLATE,ENG MTG NO.3,L
€ 16.00
25
0910608005
ref: 25
BOLT(8X22)
€ 2.00
26
0832131087
ref: 26
08321-01087
WASHER,LOCK
€ 2.00
27
0916008010
ref: 27
09160-08054
WASHER (8.2X20X1.6)
€ 1.50
28-1
4398017E10
ref: 28-1
43980-17E14
GRIP COMP,REAR
€ 145.00
28-2
4398017E11
ref: 28-2
43980-17E14
GRIP COMP,REAR
€ 145.00
29
0151708207
ref: 29
01550-08207
BOLT
€ 3.00
30
4155049200
ref: 30
41550-49201
HOLDER,TOOL
€ 10.00
31
3692002200
ref: 31
COVER,HARNESS
€ 3.00
32
0946200008
ref: 32
BAND
€ 4.50
33
0916006006
ref: 33
09160-06084
WASHER
€ 2.00
34
0831921066
ref: 34
08319-2106A
NUT
€ 2.00
