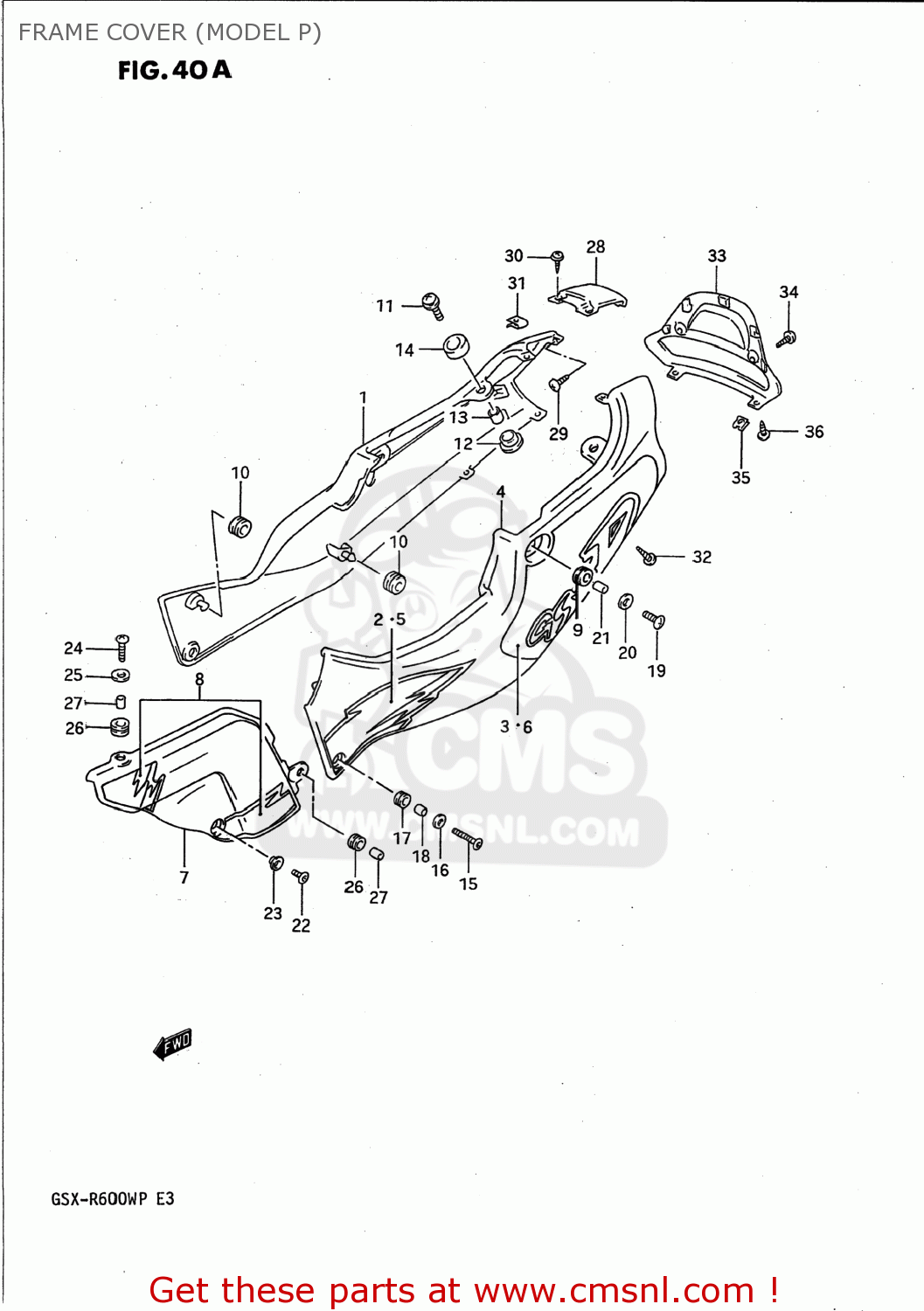

FRAME COVER (MODEL P)

ref

part #

description

quantity

1-1

4710018E200JW
ref: 1-1

COVER ASSEMBLY,FRAME,RIGHT

€ 575.50

1-2

4710018E2033J
ref: 1-2

COVER, FRAME RH (BLACK)

€ 0.00

2-1

6813518E10A8E
ref: 2-1

TAPE,FRAME COVER STRIPE

€ 0.00

2-2

6813518E10A8F
ref: 2-2

TAPE,FRAME COVER STRIPE

€ 34.50

3-1

6813618E10A8G
ref: 3-1

TAPE,FRAME COVER ZECKE

€ 55.00

3-2

6813618E10A8H
ref: 3-2

TAPE,FRAME COVER ZECKE

€ 0.00

4-1

4720018E200JW
ref: 4-1

COVER ASSEMBLY,FRAME,LEFT

€ 366.50

4-2

4720018E2033J
ref: 4-2

COVER ASSEMBLY,FRAME,LEFT

€ 0.00

5-1

6814518E10A8E
ref: 5-1

TAPE,FRAME COVER STRIPE

€ 40.00

5-2

6814518E10A8F
ref: 5-2

TAPE,FRAME COVER STRIPE

€ 34.50

6-1

6814618E10A8G
ref: 6-1

TAPE,FRAME COVER STICKER

€ 81.00

6-2

6814618E10A8H
ref: 6-2

TAPE,FRAME COVER STICKER

€ 69.00

7-1

4750018E200JW
ref: 7-1

COVER ASSEMBLY,FRAME BODY

€ 0.00

7-2

4750018E2033J
ref: 7-2

COVER ASSEMBLY,FRAME BODY

€ 0.00

7-3

4760018E200JW
ref: 7-3

COVER ASSEMBLY,FRAME BODY

€ 0.00

7-4

4760018E2033J
ref: 7-4

COVER ASSEMBLY,FRAME BODY

€ 94.00

8-1

6866018E10A8E
ref: 8-1

TAPE SET,FRAME COVER B

€ 31.50

8-2

6866018E10A8F
ref: 8-2

TAPE SET,FRAME COVER B

€ 39.50

8-3

6867018E10A8E
ref: 8-3

TAPE SET,FRAME COVER B

€ 0.00

8-4

6867018E10A8F
ref: 8-4

TAPE SET,FRAME COVER B

€ 31.50

9

9443326B00
ref: 9

CUSHION

€ 4.00

10

0932008018
ref: 10

CUSHION

€ 4.00

11

0913606083
ref: 11

SCREW(6X30)

€ 3.00

12

4532617C00
ref: 12

CUSHION,FRAME COVER LWR

€ 7.00

13

0918006143
ref: 13
09180-06286

SPACER

€ 2.50

14

4514904A00
ref: 14

CUSHION,TAIL COVER UPR

€ 2.00

15

0913906042
ref: 15

SCREW(6X30)

€ 7.50

16

0916006006
ref: 16
09160-06084

WASHER

€ 2.00

17

0932009016
ref: 17

CUSHION

€ 2.50

18

0918006011
ref: 18
09180-06263

SPACER (6.1X9X9)

€ 2.00

19

0913906050
ref: 19

SCREW(6X20)

€ 5.00

20

0916006012
ref: 20
09160-06054

WASHER(6,5X22X1.6)

€ 2.00

21

0918006027
ref: 21
09180-06258

SPACER (6.3X9.1X6.7)

€ 3.00

22

0913905025
ref: 22

SCREW(5X14)

€ 2.00

23

0916905013
ref: 23

WASHER

€ 8.00

24

0912506055
ref: 24

SCREW(6X25)

€ 3.00

25

0916006039
ref: 25
09160-06109

WASHER (6.5X18X1.6)

€ 2.00

26

0932009016
ref: 26

CUSHION

€ 2.50

27

0918006011
ref: 27
09180-06263

SPACER (6.1X9X9)

€ 2.00

28-1

4730017E000JW
ref: 28-1

COVER ASSY,FRAME CTR

€ 48.00

28-2

4730017E0033J
ref: 28-2

COVER ASSY,FRAME CTR

€ 44.00

29

0913905021
ref: 29

SCREW(5X12)

€ 2.00

30

0314114125
ref: 30
03141-1412B

SCREW

€ 2.00

31

0914804024
ref: 31

NUT

€ 2.00

32

0354104125
ref: 32
03541-0412A

SCREW

€ 1.50

33

4741117E00
ref: 33

COVER,FRAME RR

€ 24.50

34

0913905021
ref: 34

SCREW(5X12)

€ 2.00

35

0914805023
ref: 35
09148-05021

NUT

€ 1.50

36

0214215125
ref: 36
02142-1512B

SCREW

€ 2.00
