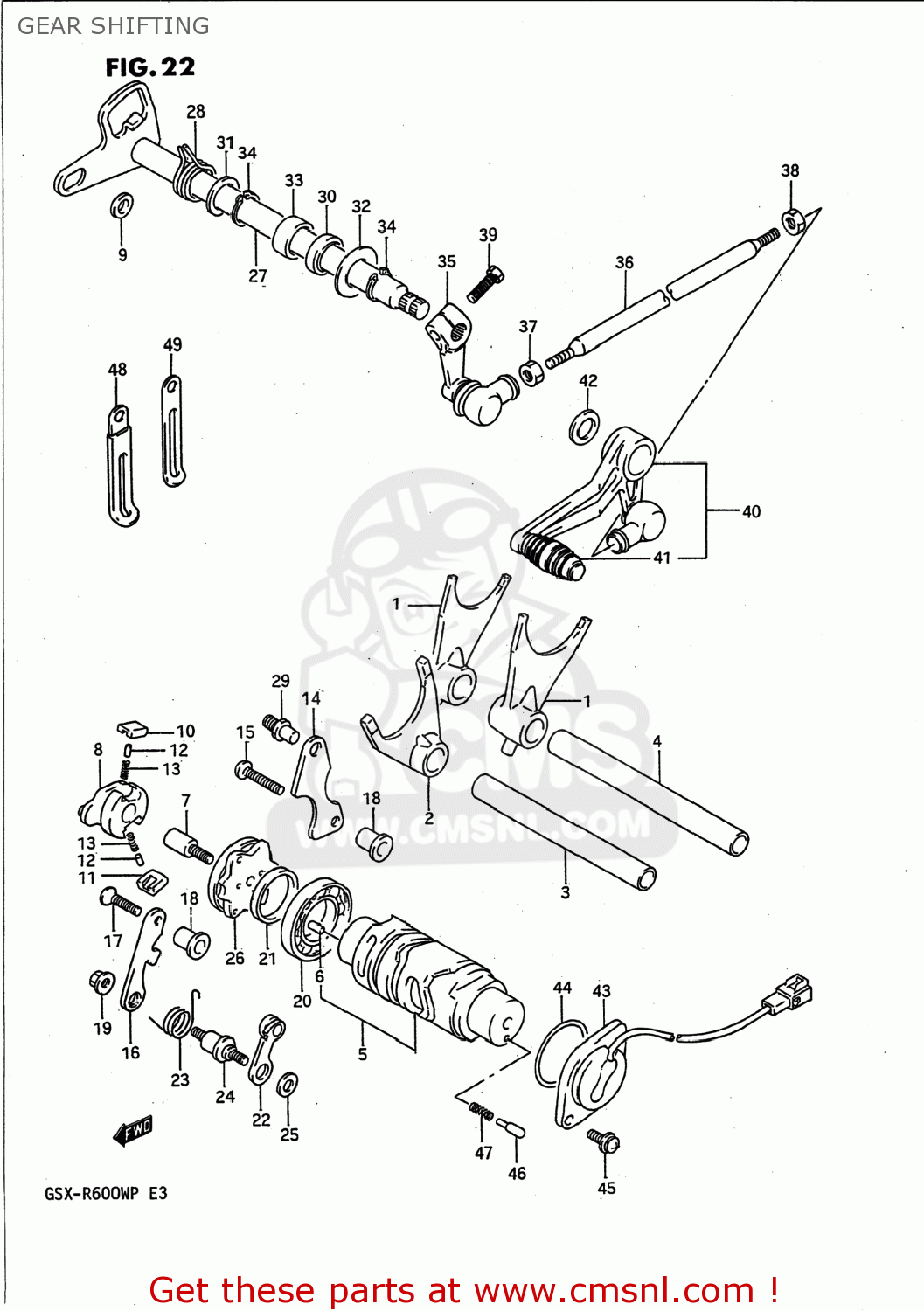

GEAR SHIFTING

ref

part #

description

quantity

1

2521117E00
ref: 1
25211-17E01

FORK,GEAR SHIFT NO.1

€ 64.50

2

2523117E00
ref: 2
25231-35F00

FORK,GEAR SHIFT NO.3

€ 108.50

3

2541126D01
ref: 3

SHAFT,GEAR SHIFT FORK

€ 16.00

4

2541127A00
ref: 4

SHAFT,GEAR SHIFT FORK(L:128)

€ 23.50

5

2531017E01
ref: 5
25310-17E02

CAM,GEAR SHIFT

€ 147.00

6

0422104089
ref: 6

PIN

€ 1.50

7

2531212C00
ref: 7

PIN,SHIFT CAM DRIVEN GEAR

€ 6.00

8

2532233C00
ref: 8
25322-33C01

SHIFTER,GEAR SHIFT CAM

€ 49.50

9

0918007014
ref: 9

SPACER(7X10X5)

€ 4.00

10

2532334201
ref: 10

PAWL,GEAR SHIFT NO.1

€ 6.00

11

2532434201
ref: 11

PAWL,GEAR SHIFT NO.2

€ 6.00

12

0926105003
ref: 12

PIN(5X8)

€ 1.50

13

0944004003
ref: 13

SPRING

€ 1.50

14

2533126D00
ref: 14

LIFTER,GEAR SHIFT PAWL

€ 6.00

15

0211206308
ref: 15
02112-06307

SCREW 6X30

€ 2.50

16

2534117E00
ref: 16

GUIDE,GEAR SHIFT CAM

€ 7.50

17

0212206308
ref: 17
02122-0630B

SCREW

€ 2.00

18

0918006202
ref: 18

SPACER(6.1X10X16)

€ 4.00

19

0915906017
ref: 19
08319-31067

NUT

€ 2.50

20

0926225002
ref: 20
09262-25006

BEARING

€ 24.00

21

0916025059
ref: 21

WASHER(25X32X3)

€ 5.00

22

2535026D01
ref: 22

STOPPER,GEAR SHIFT CAM

€ 8.50

23

2535526D01
ref: 23
25355-26D21

SPRING,STOPPER ARM

€ 11.00

24

2535612C00
ref: 24

SUPPORT,CAM STOPPER ARM

€ 9.50

25

0821106141
ref: 25

WASHER

€ 2.50

26

2538012B00
ref: 26

PLATE,GEAR SHIFT CAM

€ 10.00

27

2551017E00
ref: 27
25510-17E10

SHAFT COMP,GEAR SHIFTING

€ 66.00

28

0944420002
ref: 28
09444-20003

SPRING

€ 5.50

29

2567101000
ref: 29
25671-01011

STOPPER,GEAR SHIFT CAM

€ 3.00

30

0928314005
ref: 30

SEAL,OIL(14X22X7.3)

€ 6.50

31

0821114221
ref: 31
09181-14167

WASHER,THRUST

€ 3.50

32

0916014034
ref: 32
09160-14060

WASHER

€ 3.00

33

0926314027
ref: 33

BEARING(14X20X12)

€ 11.00

34

0833131146
ref: 34
08331-3114A

CIRCLIP

€ 2.00

35

2552022A00
ref: 35

ARM,GEAR SHIFT LINK

€ 46.50

36

2552517E00
ref: 36
25525-17E11

ROD,GEAR SHIFT LINK

€ 19.00

37

0914006011
ref: 37

NUT

€ 1.50

38

0831011067
ref: 38
08310-00067

NUT 6MM

€ 2.50

39

0110706207
ref: 39
01500-06207

BOLT

€ 2.00

40

2560017C03
ref: 40
25600-33E00

LEVER ASSEMBLY,GEAR SHIFTING

€ 106.00

41

2565216500
ref: 41

RUBBER,GEAR SHIFT PEDAL

€ 4.00

42

0916018022
ref: 42

WASHER(18X24X1)

€ 3.00

43

3772048B00
ref: 43

TERMINAL BASE ASSY,NEUTRAL

€ 57.00

44

0928036001
ref: 44

O RING(D:2.4,ID:36.5)

€ 4.50

45

0211275166
ref: 45
02112-7516A

SCREW

€ 2.50

46

0920905011
ref: 46

PIN(5X15.5)

€ 2.00

47

0944004010
ref: 47

SPRING

€ 1.50

48

0940406401
ref: 48
09404-06432

CLAMP L:35

€ 2.50

49-1

0940406422
ref: 49-1
09404-06429

CLAMP

€ 2.50

49-2

0940406426
ref: 49-2
09404-06433

CLAMP

€ 3.00

all assemblies
