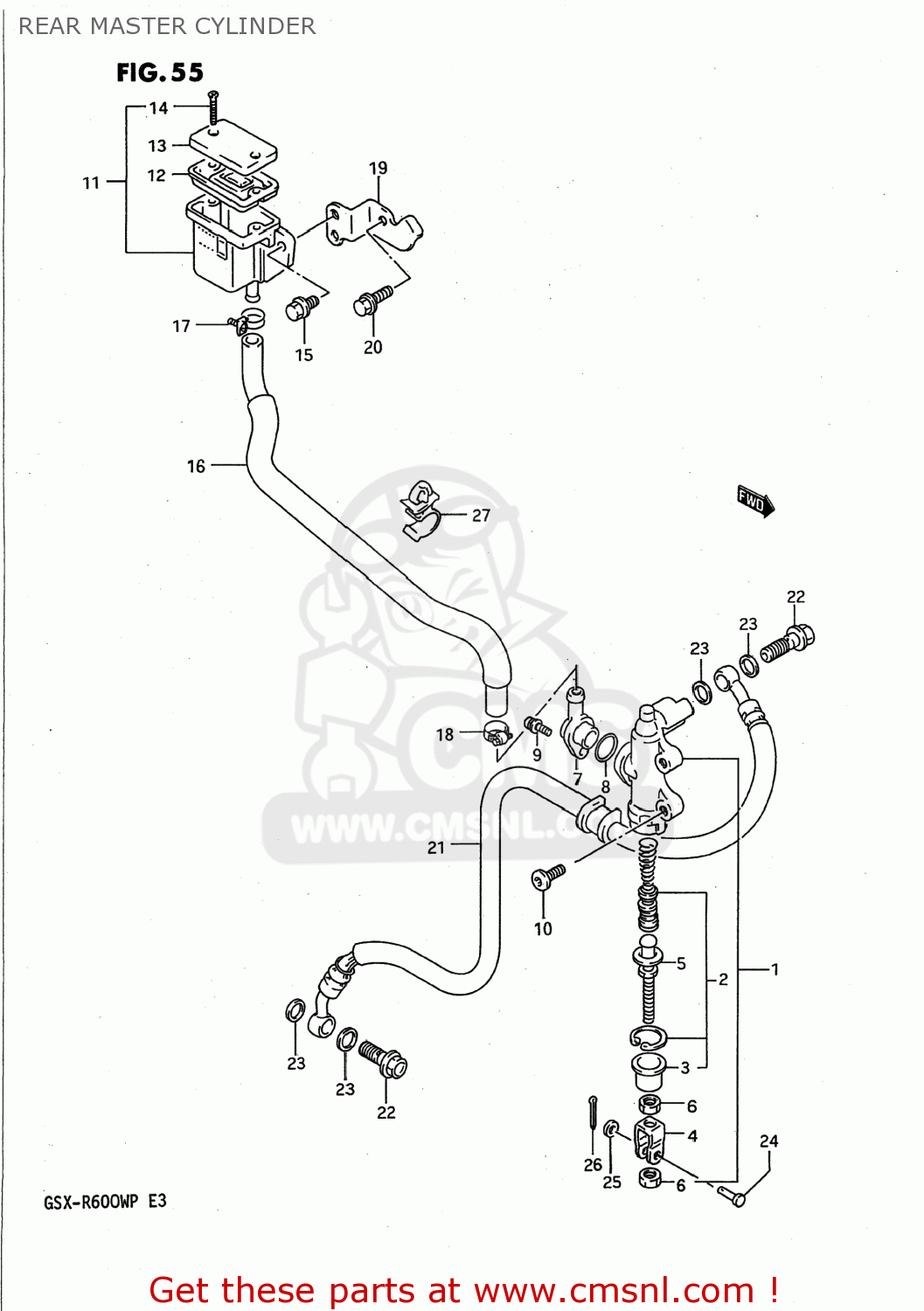

REAR MASTER CYLINDER

ref

part #

description

quantity

1

6960017E00
ref: 1

CYLINDER ASSEMBLY,REAR MASTER

€ 151.00

2

6960004820
ref: 2

PISTON/CUP SET

€ 31.00

3

6969100A00
ref: 3

BOOT

€ 3.50

4

6969227A30
ref: 4

YOKE

€ 12.50

5

6967017E00
ref: 5

ROD,PUSH

€ 25.00

6

6969305A00
ref: 6

NUT

€ 1.50

7

6967205A00
ref: 7

CONNECTOR

€ 4.50

8

6968634200
ref: 8

O RING

€ 3.50

9

0211274125
ref: 9
02112-7412A

SCREW

€ 2.50

10

0913908009
ref: 10

SCREW(8X22)

€ 6.50

11

6974024A01
ref: 11

TANK ASSY,RESERVOIR

€ 99.50

12

5966704700
ref: 12

DIAPHRAGM

€ 8.00

13

5966905D00
ref: 13

CAP

€ 13.50

14

6968904A00
ref: 14

SCREW

€ 2.00

15

0151706128
ref: 15
01550-06127

BOLT

€ 2.50

16

6973117E00
ref: 16

HOSE,RESERVOIR TANK

€ 29.00

17

0940016302
ref: 17
09400-16304

CLAMP

€ 4.50

18

0940215502
ref: 18
09402-17511

CLAMP

€ 8.00

19

6975017E00
ref: 19

PLATE COMP,RESERVOIR T

€ 6.50

20

0151706207
ref: 20
01550-06207

BOLT 6X20

€ 2.50

21-1

6948017E00
ref: 21-1

HOSE COMP,REAR BRAKE

€ 89.00

21-2

6948017E10
ref: 21-2

HOSE COMP,REAR BRAKE

€ 89.00

22

0936010017
ref: 22

BOLT UNION

€ 6.50

23

0916110009
ref: 23

WASHER(10X15X1.5)

€ 2.00

24

0920006037
ref: 24
09200-06068

PIN

€ 5.00

25

0832221067
ref: 25
08322-01067

WASHER

€ 2.00

26

0411120158
ref: 26
04111-2015A

PIN

€ 1.50

27

0940316307
ref: 27

CLAMP

€ 2.00

all assemblies
