prices are in EUR

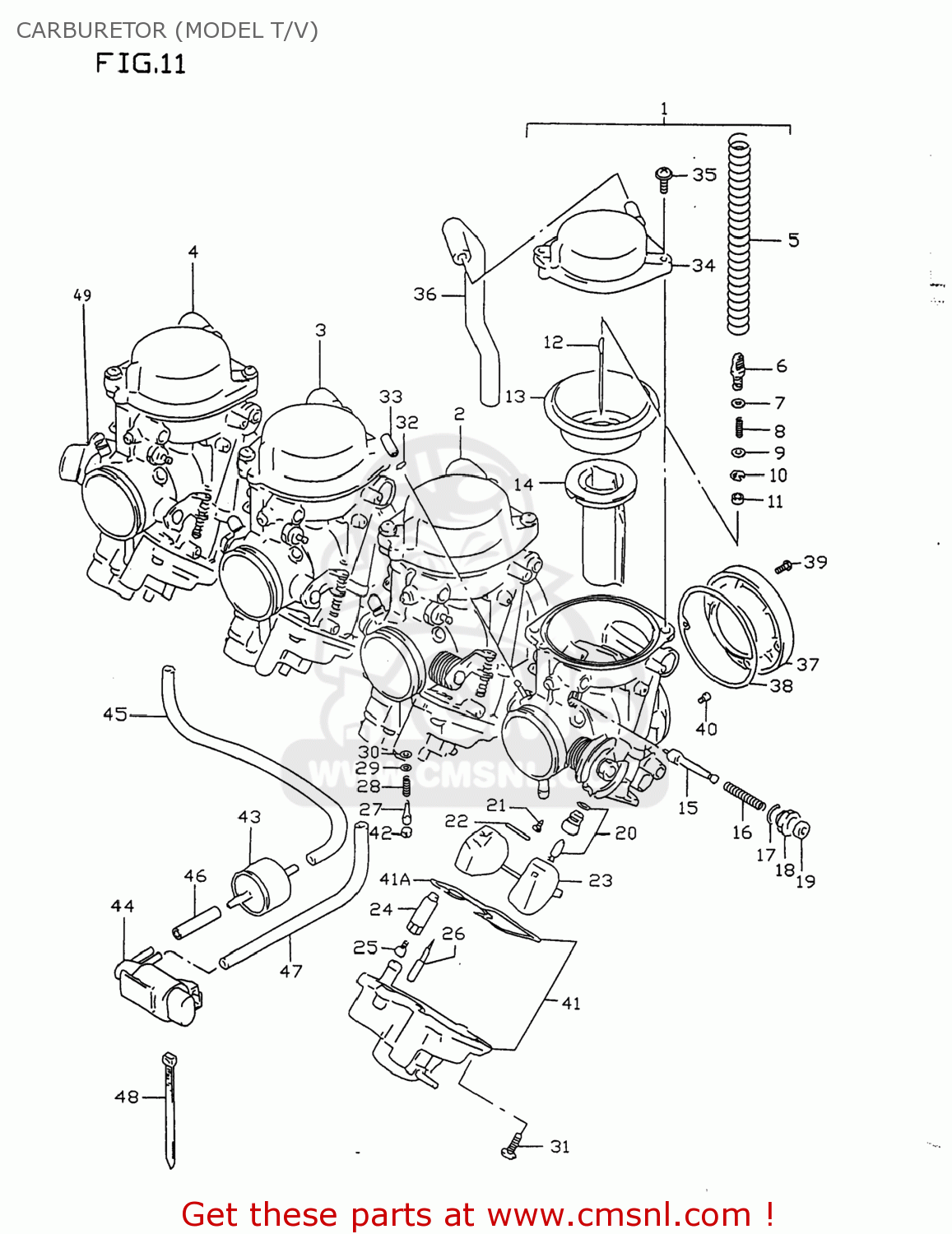

ref
part #
description
quantity
1-1
CARBURETOR ASSEMBLY,LEFT
1-2
CARBURETOR ASSY, LH
1-3
CARBURETOR ASSEMBLY,LEFT
1-4
CARBURETOR ASSEMBLY,LEFT
2-1
CARBURETOR ASSEMBLY,MIDDLE,LEFT
2-2
CARBURETOR ASSY, ML
2-3
CARBURETOR ASSEMBLY,MIDDLE,LEFT
2-4
CARBURETOR ASSEMBLY,MIDDLE,LEFT
3-1
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
3-3
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
3-4
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
4-1
CARBURETOR ASSEMBLY,RIGHT
4-2
CARBURETOR ASSY, RH
4-3
CARBURETOR ASSEMBLY,RIGHT
4-4
CARBURETOR ASSEMBLY,RIGHT
5
SPRING
6
HOLDER
7
O RING(D:1.9,ID:4.8)
8
SPRING
9
WASHER
10
E RING,MULTIPLE JET NOZZLE
12-1
JET,NEEDLE(6E41-55)
12-2
JET,NEEDLE(6E38-54)
12-3
JET,NEEDLE(6E41-55)
12-4
JET,NEEDLE (6E39-55)
13
DIAPHRAGM
14
VALVE,PISTON
15
PLUNGER
16
SPRING
17
O RING
18
GUIDE SCREW,PLUNGER
19
CAP,STARTER VALVE
21
SCREW
22
PIN,FLOAT
23
FLOAT ASSY
24
HOLDER,JET
25-1
JET,MAIN(127.5)
25-2
JET,MAIN(125)
26
JET,PILOT(12.5)
27-1
ADJUSTER
27-2
ADJUSTER
27-3
ADJUSTER
27-4
ADJUSTER
27-5
ADJUSTER
27-6
ADJUSTER
27-7
ADJUSTER
28
SPRING,THROTTLE SCREW
29
WASHER
30
O RING,PILOT AIR SCREW
31
SCREW
32
CLIP
33
CAP
34
COVER ASSY
35
SCREW
38
GASKET
39
SCREW
40-2
JET, PILOT AIR (110)
41A
O RING
41-1
BODY ASSEMBLY,FLOAT,LEFT
41-2
BODY ASSEMBLY,FLOAT,MIDDLE LEFT
41-3
BODY ASSEMBLY,FLOAT,MIDDLE RIGHT
41-4
BODY ASSEMBLY,FLOAT,RIGHT
41-5
BODY ASSEMBLY,FLOAT,LEFT
41-6
BODY ASSEMBLY,FLOAT,MIDDLE LEFT
41-7
BODY ASSEMBLY,FLOAT,MIDDLE RIGHT
41-8
BODY ASSEMBLY,FLOAT,RIGHT
42-1
PLUG
42-2
PLUG
43
VALVE,VACUUM TRANSMITTING
44
VALVE ASSY,3WAY SOLENOID
45
HOSE(4X8X600)
46
HOSE(4X8X600)
47
HOSE(4X8X600)
48
CLAMP(L:95)
