HANDLEBAR
GSXR750 1997 (V) USA (E03)

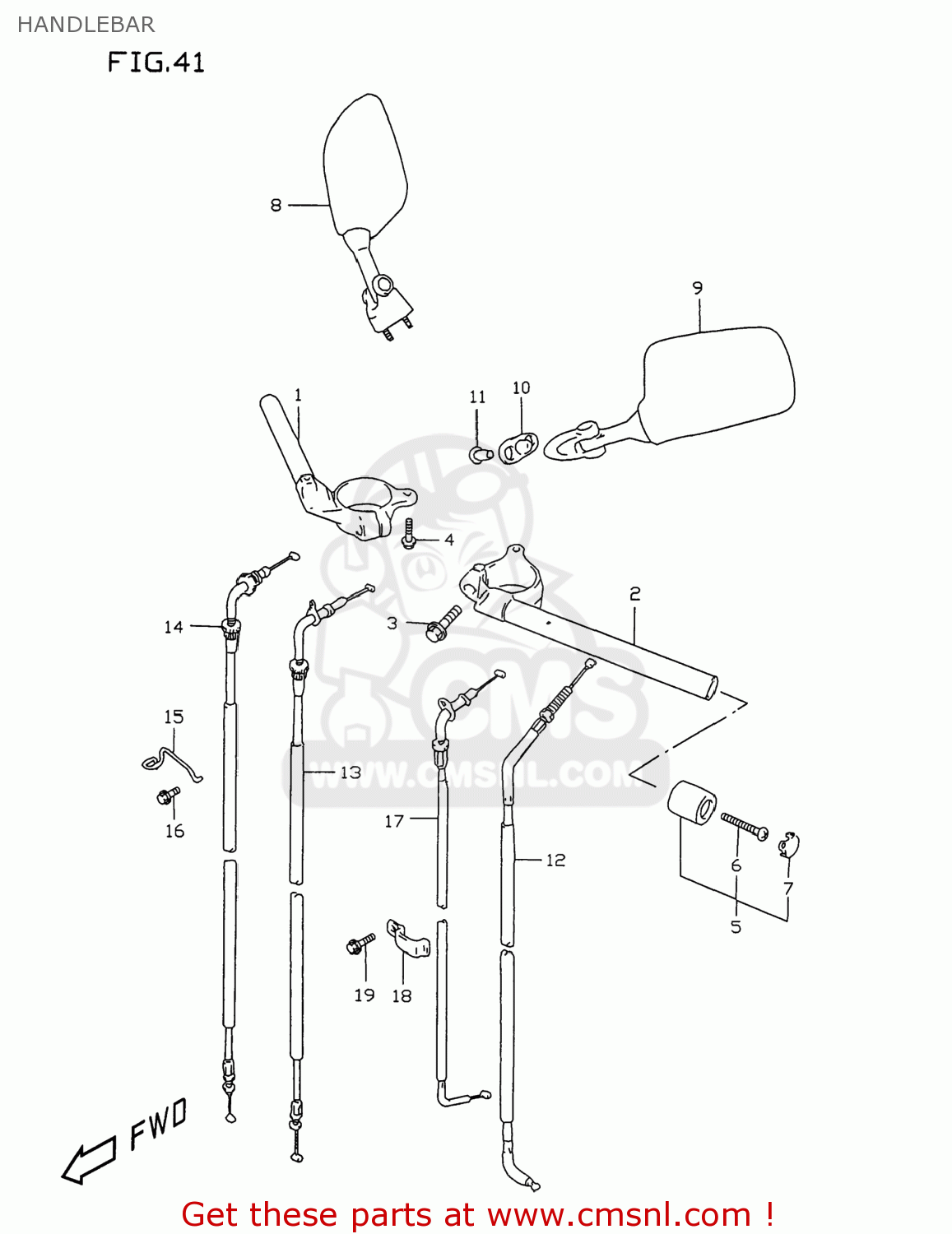

Handlebar diagram GSXR750 1997 (V) USA (E03)
HANDLEBAR GSXR750 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5611133E00
ref: 1
HANDLEBAR,R
€ 152.50
2-1
5615133E00
ref: 2-1
56151-33E01
HANDLEBAR,LEFT
€ 152.50
2-2
5615133E01
ref: 2-2
HANDLEBAR,L
€ 152.50
3
0155006203
ref: 3
01550-0620A
BOLT
€ 2.50
4
0910308269
ref: 4
BOLT(8X30)
€ 2.50
5
5620033841
ref: 5
56200-33843
BALANCER SET,HANDLEBAR
€ 27.50
6
0214206403
ref: 6
02142-0640B
SCREW
€ 2.00
7
5627933E00
ref: 7
CAP,BALANCER
€ 4.00
8
5650033E00
ref: 8
MIRROR ASSY,RR VIEW,R
€ 182.00
9
5660033E00
ref: 9
MIRROR ASSY,RR VIEW,L
€ 188.50
10
9457622D00
ref: 10
CUSHION,RR VIEW MIRRORR
€ 6.00
11
5661917C00
ref: 11
NUT,RR VIEW MIRROR
€ 8.00
12-1
5820033E00
ref: 12-1
58200-33E01
CABLE ASSEMBLY,CLUTCH
€ 38.50
12-2
5820033E01
ref: 12-2
CABLE ASSY,CLUTCH
€ 38.50
13-1
5830033E00
ref: 13-1
CABLE ASSY,THROTTLE NO.1
€ 43.00
13-2
5830033E20
ref: 13-2
CABLE ASSY,THROTTLE NO.1
€ 33.00
14-1
5830033E10
ref: 14-1
CABLE ASSY,THROTTLE NO.2
€ 40.50
14-2
5830033E30
ref: 14-2
CABLE ASSY,THROTTLE NO.2
€ 33.00
15
5862133E00
ref: 15
58621-33E0V
GUIDE,THROTTLE CABLE
€ 4.50
16
0155006163
ref: 16
01550-0616A
BOLT
€ 2.50
17-1
5841033E01
ref: 17-1
CABLE,STARTER
€ 41.00
17-2
5841033E10
ref: 17-2
CABLE,STARTER
€ 27.50
18
0940310307
ref: 18
CLAMP
€ 3.00
19
0155006103
ref: 19
01550-0610A
BOLT
€ 2.50
