CYLINDER
GSXR750 1997 (V) USA (E03)

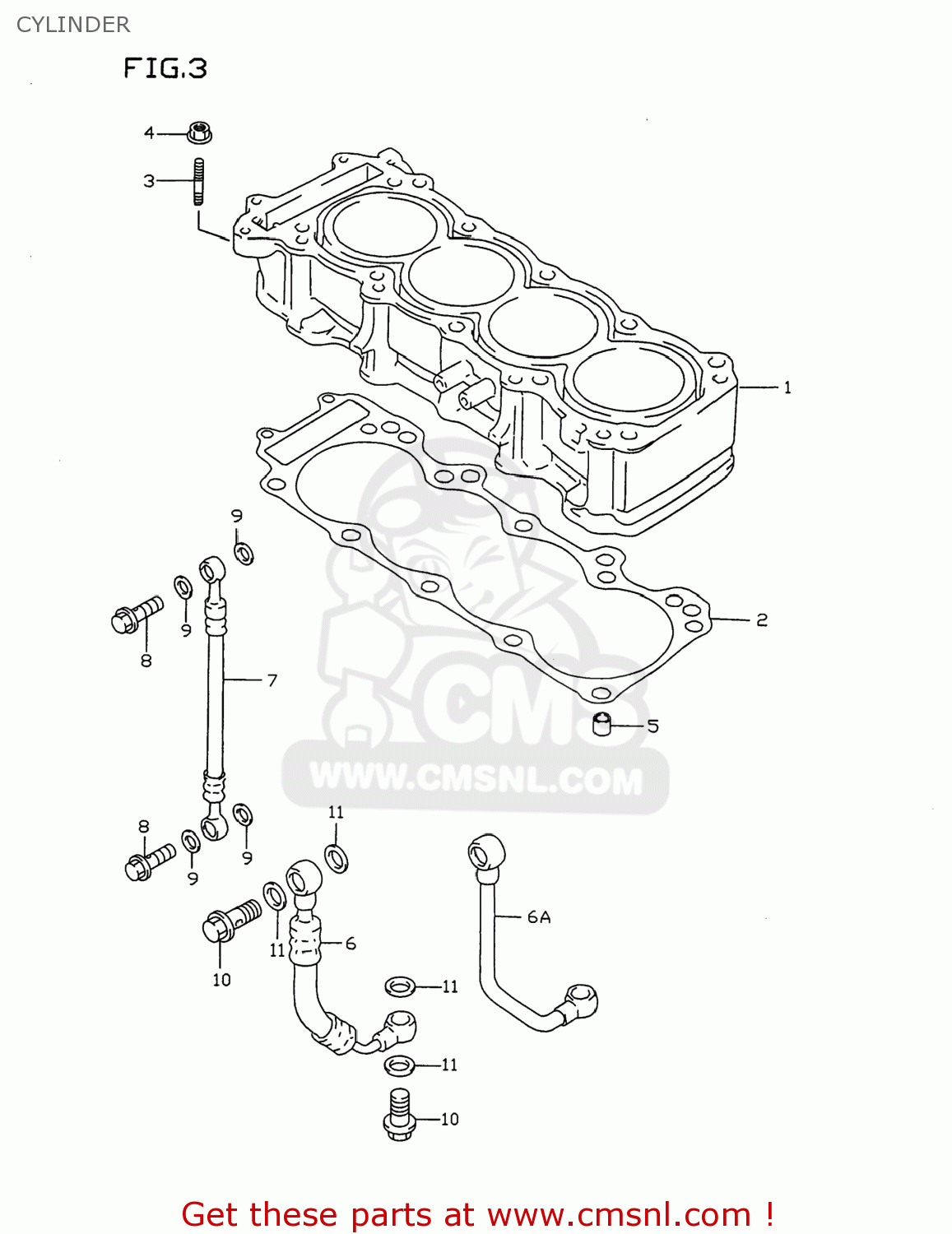

Cylinder diagram GSXR750 1997 (V) USA (E03)
CYLINDER GSXR750 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121133E00
ref: 1-1
11211-33E10
CYLINDER
€ 953.00
1-2
1121133E10
ref: 1-2
CYLINDER
€ 953.00
2
1124133E00
ref: 2
GASKET,CYLINDER(T:0.25)
€ 20.50
3
0142106203
ref: 3
01421-0620A
STUD,M6X1X32
€ 2.50
4
0831610063
ref: 4
08316-1006B
NUT
€ 2.50
5
0421111169
ref: 5
PIN
€ 2.00
6
1128133E00
ref: 6
HOSE,OIL GALLERY
€ 106.50
6A
1128033E50
ref: 6A
11281-33E00
PIPE COMP,CRANKCASE OIL
€ 106.50
6A
1128033E50
ref: 6A
11281-33E00
PIPE COMP,CRANKCASE OIL
€ 106.50
7
1128233E00
ref: 7
HOSE,CYLINDER HEAD OIL
€ 68.50
8-1
0936010033
ref: 8-1
09360-10062
BOLT 10X1.25X24
€ 5.00
8-2
0936010040
ref: 8-2
09360-10062
BOLT UNION
€ 5.00
9
0916810007
ref: 9
GASKET(10.1X16X1) (NAS)
€ 2.00
10
0936014012
ref: 10
BOLT UNION
€ 10.00
11
0916814015
ref: 11
GASKET(14X20X1.5) (NAS)
€ 1.50
