CRANKCASE (MODEL T/V)
GSXR750 1997 (V) USA (E03)

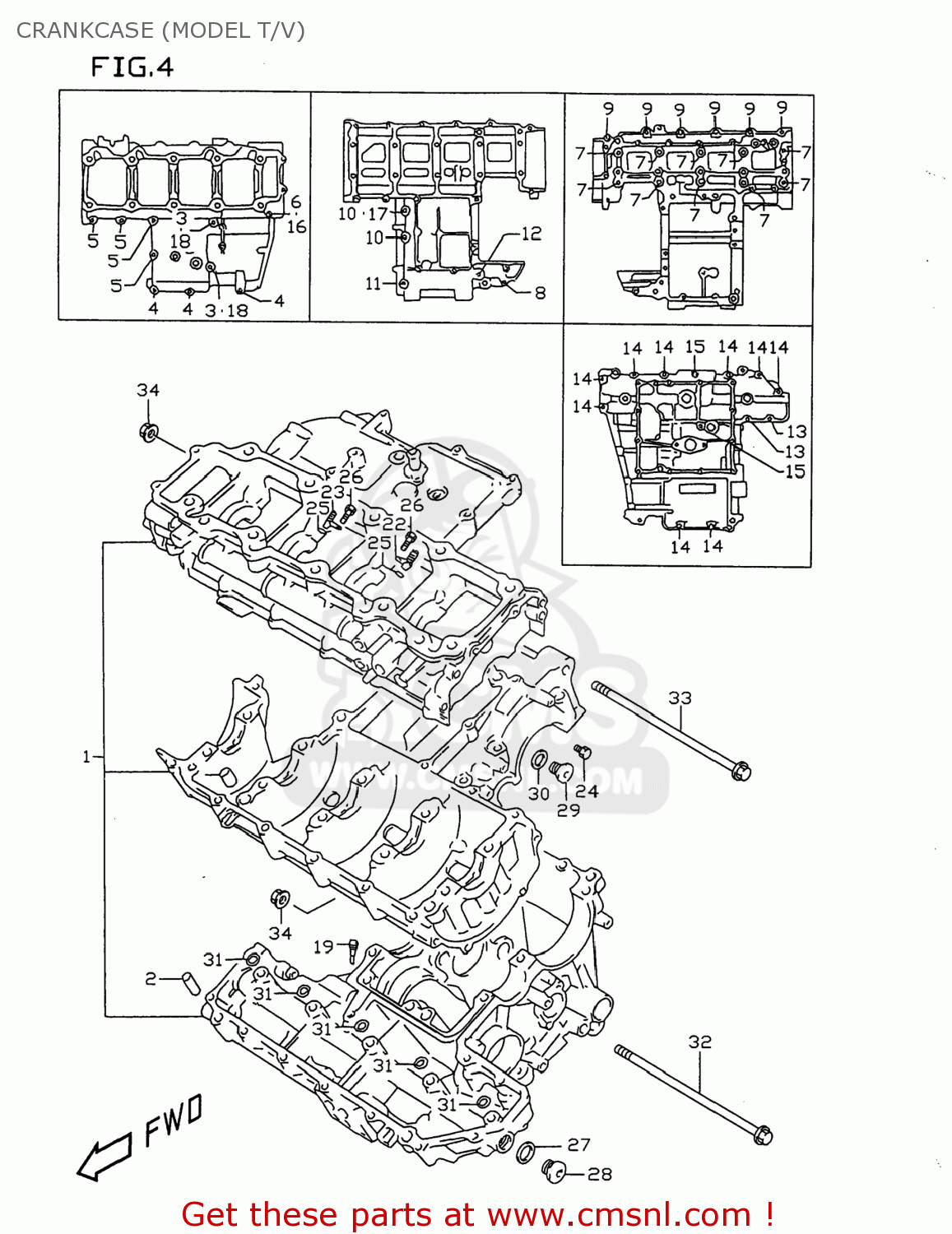

Crankcase (model t/v) diagram GSXR750 1997 (V) USA (E03)
CRANKCASE (MODEL T/V) GSXR750 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130133830
ref: 1-1
11301-33870
CRANKCASE SET
€ 1,990.50
1-2
1130133831
ref: 1-2
11301-33870
CRANKCASE SET
€ 1,990.50
1-3
1130133840
ref: 1-3
11301-33841
CRANKCASE SET
€ 1,990.50
1-4
1130133841
ref: 1-4
CRANKCASE SET
€ 1,990.50
2
1131933E00
ref: 2
PIN,CRANKCASE
€ 4.00
3
0910308109
ref: 3
BOLT(8X120)
€ 3.50
4
0155006353
ref: 4
01550-0635A
BOLT
€ 2.50
5
0155006403
ref: 5
01550-0640A
BOLT
€ 2.00
6
0155006803
ref: 6
BOLT
€ 2.50
7
0910309008
ref: 7
BOLT(9X95)
€ 6.00
8
0155006453
ref: 8
01550-0645A
BOLT (6X45)
€ 2.50
9
0155006503
ref: 9
01550-0650A
BOLT
€ 2.00
10
0712008603
ref: 10
07120-0860B
BOLT
€ 4.50
11
0713008553
ref: 11
07130-0855B
BOLT
€ 3.50
12
0713008803
ref: 12
07130-0880B
BOLT
€ 3.00
13
0155006303
ref: 13
01550-0630A
BOLT
€ 2.50
14
0155006403
ref: 14
01550-0640A
BOLT
€ 2.00
15
0155006903
ref: 15
01550-0690B
BOLT (6X90)
€ 3.50
16-1
0916806024
ref: 16-1
GASKET(5.8X11X1.2) (NAS)
€ 2.00
16-2
0916806024
ref: 16-2
GASKET(5.8X11X1.2) (NAS)
€ 2.00
17
0916808016
ref: 17
GASKET(8.2X14X1) (NAS)
€ 1.00
18
0916808016
ref: 18
GASKET(8.2X14X1) (NAS)
€ 1.00
19
0949328012
ref: 19
JET(140)
€ 8.00
20
1222817E000D0
ref: 20
BEARING,CRANK THRUST(GREEN)
€ 8.00
21-1
1222817E000A0
ref: 21-1
BEARING,CRANK THRUST(RED)
€ 7.50
21-2
1222817E000B0
ref: 21-2
BEARING,CRANK THRUST(BLACK)
€ 7.50
21-3
1222817E000C0
ref: 21-3
BEARING,CRANK THRUST(BLUE)
€ 7.50
21-4
1222817E000D0
ref: 21-4
BEARING,CRANK THRUST(GREEN)
€ 8.00
21-5
1222817E000E0
ref: 21-5
BEARING,CRANK THRUST(YELLOW)
€ 7.50
21-6
1222817E000F0
ref: 21-6
BEARING,CRANK THRUST(WHITE)
€ 7.50
22-1
1139133E00
ref: 22-1
JET,PISTON COOLINGR
€ 14.00
22-2
1139034E00
ref: 22-2
JET,PISTON COOLINGR
€ 13.50
23-1
1139133E10
ref: 23-1
JET,PISTON COOLINGL
€ 14.00
23-2
1139034E10
ref: 23-2
JET,PISTON COOLING
€ 13.50
24-1
1139333E00
ref: 24-1
11393-33E01
JET,MAGNETO COOLING
€ 14.00
24-2
1139333E01
ref: 24-2
JET,MAGNETO COOLING
€ 14.00
25
0928004004
ref: 25
O RING(D:1.2,ID:4)
€ 2.00
26
0910606075
ref: 26
BOLT(6X12)
€ 2.50
27
0916816002
ref: 27
GASKET(16X22X2) (NAS)
€ 2.00
28
0924816010
ref: 28
09248-16012
PLUG
€ 4.50
29
0924814005
ref: 29
PLUG,14X12
€ 5.00
30-1
0916814015
ref: 30-1
GASKET(14X20X1.5) (NAS)
€ 1.50
30-2
0916814002
ref: 30-2
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
31
0928008012
ref: 31
O RING(D:1.9,ID:7.8)
€ 4.00
32-1
0910310138
ref: 32-1
BOLT(10X200)
€ 11.50
32-2
0910310145
ref: 32-2
BOLT(10X205)
€ 13.00
33
0910310219
ref: 33
BOLT(10X185)
€ 16.50
34
0915910058
ref: 34
09159-10115
NUT
€ 4.00
