FRONT DAMPER (MODEL W/X)
GSXR750 1997 (V) USA (E03)

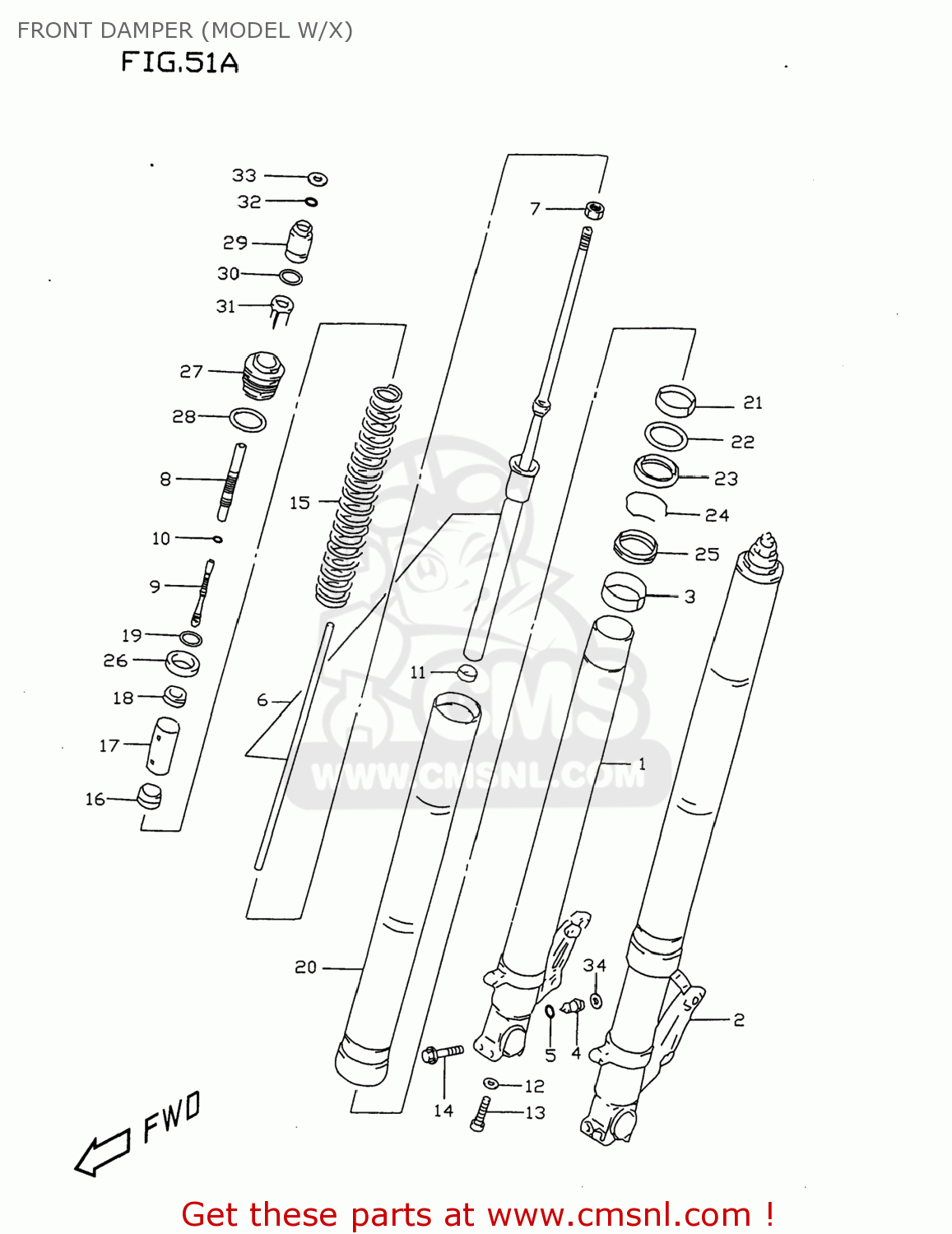

Front damper (model w/x) diagram GSXR750 1997 (V) USA (E03)
FRONT DAMPER (MODEL W/X) GSXR750 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110333E30
ref:
DAMPER ASSY,FR FORK,R
€ 1,042.50
5110433E30
ref:
DAMPER ASSY,FR FORK,L
€ 1,558.00
1
5111033E20
ref: 1
TUBE,INNER,R
€ 483.50
2
5112033E20
ref: 2
TUBE,INNER,L
€ 483.50
3
5112113E00
ref: 3
BUSH,SLIDE
€ 18.00
4
5183033E00
ref: 4
PIECE,ADJUST
€ 73.50
5
0928014011
ref: 5
O RING(D:2.5,ID:13.8)
€ 3.50
6
5211033E20
ref: 6
ROD,FR DAMPER
€ 421.00
7
5182733E00
ref: 7
NUT
€ 11.00
8
5182933E20
ref: 8
CASE,ADJUSTER
€ 87.50
9
5182133E00
ref: 9
PIECE,ADJUST
€ 36.00
10
0928003002
ref: 10
O RING(D:1.9,ID:3.8)
€ 2.00
11
5181533E00
ref: 11
PLATE,CENTERING
€ 15.50
12
0916110009
ref: 12
WASHER(10X15X1.5)
€ 2.00
13
5114717C00
ref: 13
BOLT
€ 21.00
14
0155008457
ref: 14
BOLT
€ 4.00
15
5117133E20
ref: 15
SPRING,FR
€ 77.00
16
5117217E00
ref: 16
JOINT,SPRING
€ 25.00
17
5117633E00
ref: 17
COLLAR,SPRING
€ 19.50
18
5117522D00
ref: 18
GUIDE,SPRING UPR
€ 15.00
19
5117234370
ref: 19
GUIDE,SPRING
€ 3.50
20
5113117E40
ref: 20
TUBE,OUTER
€ 500.50
21
5115213E00
ref: 21
BUSH,GUIDE
€ 23.50
22
5116817C00
ref: 22
SPACER,SEAL
€ 5.00
23
5115314D00
ref: 23
SEAL,OIL
€ 20.50
24
5155638B00
ref: 24
CIRCLIP,FORK OIL SEAL
€ 4.50
25
5117329E00
ref: 25
SEAL,DUST
€ 23.00
26
5119317D00
ref: 26
RUBBER,SEAT
€ 13.00
27
5118918D00
ref: 27
BOLT,FORK
€ 79.00
28
5118708D00
ref: 28
O RING,FORK BOLT
€ 6.00
29
5182817D00
ref: 29
ADJUSTER,SPRING
€ 42.50
30
5119917D00
ref: 30
O RING
€ 6.00
31
5182322D30
ref: 31
PLATE,SPRING ADJUSTER
€ 33.50
32
5183717D00
ref: 32
RING,STOPPER
€ 6.00
33
5114942E00
ref: 33
LABEL,ADJUST PIECE UPR
€ 4.00
34
5116942E00
ref: 34
LABEL,ADJUST PIECE LWR
€ 4.00
