prices are in EUR
ref
part #
description
quantity
1-1

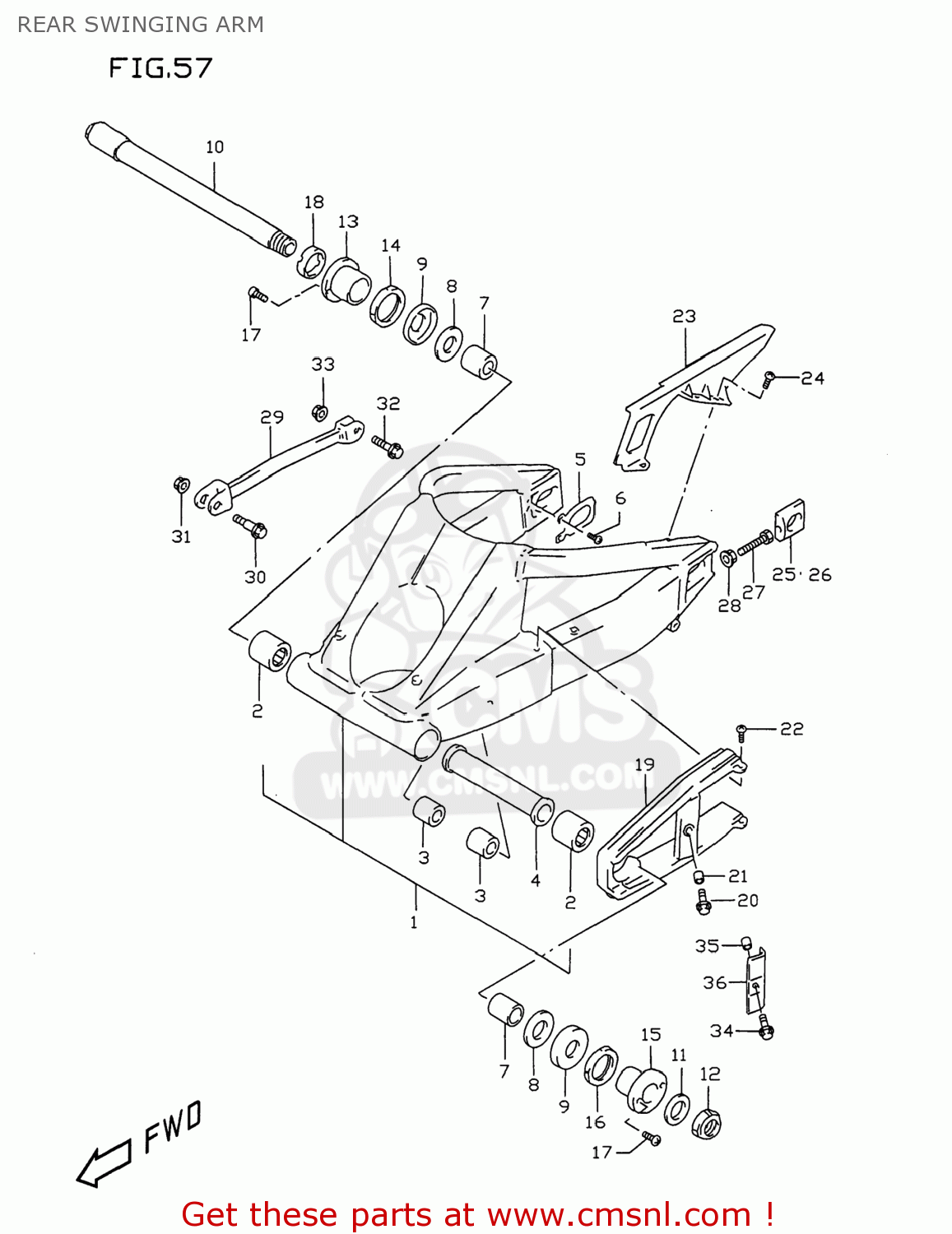

SWING ARM ASSEMBLY,REAR
2
BEARING(30X40X25)
3
BEARING(17X24X20)
4-1
SPACER COMP,REAR SWING PIVOT
4-2
SPACER COMP,REAR SWING PIVOT
4-2
SPACER COMP,REAR SWING PIVOT
4-3
SPACER,REAR SWING PIVOT,CENTER
4-4
SPACER,REAR SWING PIVOT,CENTER
5
PLATE,RR SWING ARM BRKT
6
SCREW 6X10
7
SPACER,REAR SWING ARM PIVOT
8
WASHER
9
DUST SEAL,RR SWGARM PIVOT
10
SHAFT,RR SWINGINGARM PIVOT
11
WASHER(25.2X42X3.2)
12
NUT
13
BOSS,RR SWINGINGARM PIVOT,R
14
NUT,RR SWGARM PIVOT BOSS,R
15
BOSS,RR SWINGINGARM PIVOT,L
16
NUT,RR SWGARM PIVOT BOSS,L
18
NUT,REAR SWING ARM PIVOT
19-1
BUFFER,CHAIN TOUCH DEFLECTOR
19-1
BUFFER,CHAIN TOUCH DEFLECTOR
19-1
BUFFER,CHAIN TOUCH DEFLECTOR
19-1
BUFFER,CHAIN TOUCH DEFLECTOR
19-1
BUFFER,CHAIN TOUCH DEFLECTOR
19-2
BUFFER,CHAIN TOUCH DEFENSE
20
BOLT 6X20,WITH PLAIN WASHER
21
SPACER(6.5X10X8)
22-1
SCREW
24
SCREW(6X16)
25
ADJUSTER,CHAIN,R
26-1
ADJUSTER,CHAIN,LEFT
27
BOLT(8X50)
28
NUT
29
TORQUELINK,RR
31
NUT
32
BOLT(10X37)
33
NUT
34
BOLT
35
SPACER(6.5X10X10)
36
PLATE,CHAIN BUFFER
