CRANKSHAFT
GSXR750 2002 (K2) USA (E03)

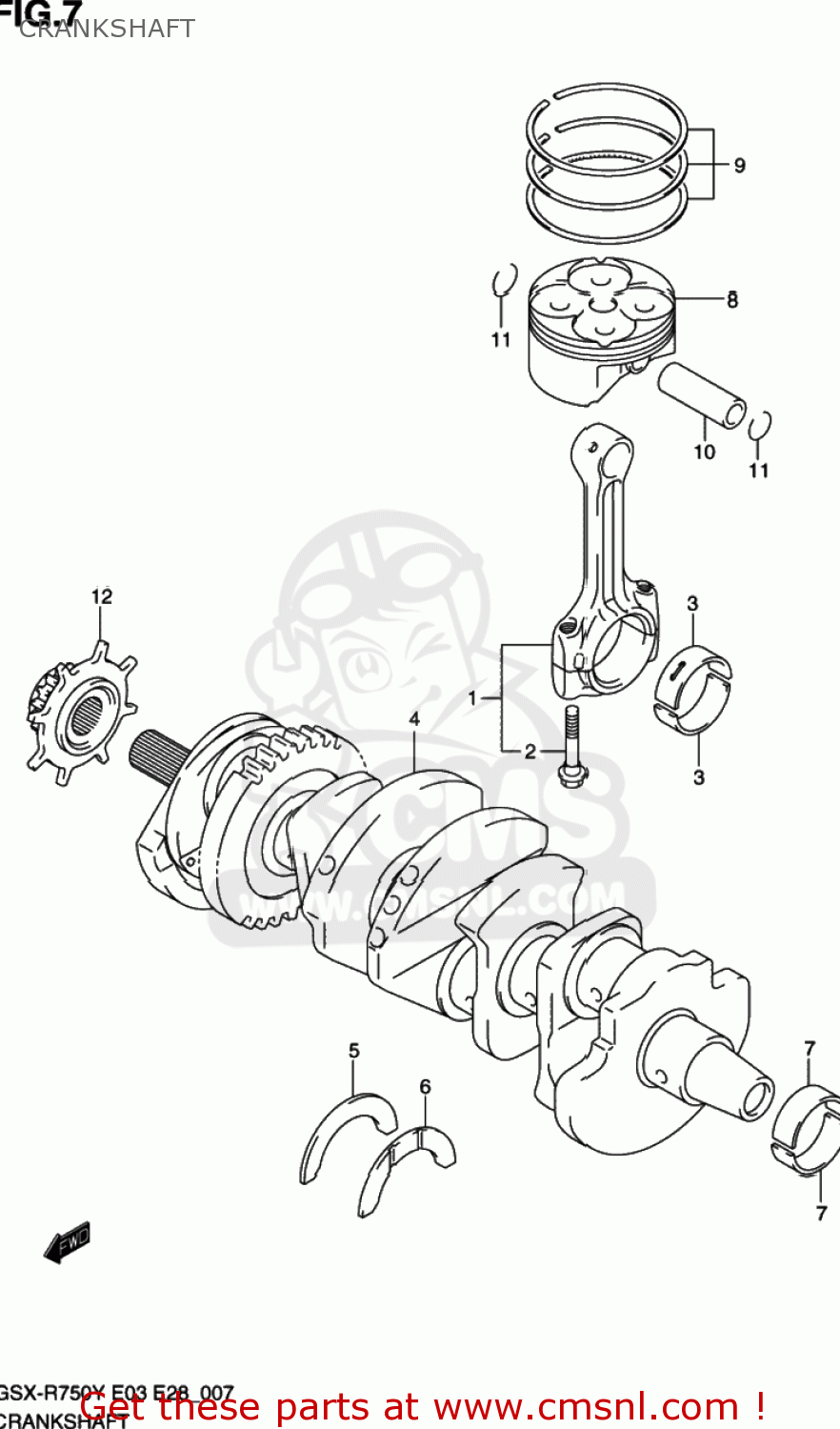

Crankshaft diagram GSXR750 2002 (K2) USA (E03)
CRANKSHAFT GSXR750 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1216035F00
ref: 1
CONNECTING ROD ASSY
€ 224.50
2
1216335F00
ref: 2
BOLT,CONNECTING ROD
€ 9.00
3-1
1216435F000A0
ref: 3-1
BEARING,CRANK PIN
€ 12.50
3-2
1216435F000B0
ref: 3-2
BEARING,CRANK PIN
€ 12.50
3-3
1216435F000C0
ref: 3-3
BEARING,CRANK PIN
€ 12.50
3-4
1216435F000D0
ref: 3-4
BEARING,CRANK PIN
€ 12.00
4-1
1200035820
ref: 4-1
12000-35830
CRANKSHAFT SET
€ 1,265.50
4-2
1200035830
ref: 4-2
CRANKSHAFT SET
€ 1,265.50
5
1222817E000D0
ref: 5
BEARING,CRANK THRUST(GREEN)
€ 8.00
6-1
1222817E000A0
ref: 6-1
BEARING,CRANK THRUST(RED)
€ 7.50
6-2
1222817E000B0
ref: 6-2
BEARING,CRANK THRUST(BLACK)
€ 7.50
6-3
1222817E000C0
ref: 6-3
BEARING,CRANK THRUST(BLUE)
€ 7.50
6-4
1222817E000D0
ref: 6-4
BEARING,CRANK THRUST(GREEN)
€ 8.00
6-5
1222817E000E0
ref: 6-5
BEARING,CRANK THRUST(YELLOW)
€ 7.50
6-6
1222817E000F0
ref: 6-6
BEARING,CRANK THRUST(WHITE)
€ 7.50
7-1
1222935F000A0
ref: 7-1
BEARING,CRANKSHAFT
€ 18.00
7-2
1222935F000B0
ref: 7-2
BEARING,CRANKSHAFT
€ 17.50
7-3
1222935F000C0
ref: 7-3
BEARING,CRANKSHAFT
€ 17.50
7-4
1222935F000D0
ref: 7-4
BEARING,CRANKSHAFT
€ 18.00
8
1211135F000F0
ref: 8
PISTON
€ 95.50
9
1214035F00
ref: 9
RING SET,PISTON
€ 80.00
10
1215135F00
ref: 10
PIN,PISTON
€ 16.50
11
0938115001
ref: 11
CIRCLIP
€ 1.50
12
1273135F00
ref: 12
SPROCKET,CAM CHAIN DRIVE
€ 84.00
