HANDLEBAR (MODEL K2/K3)
GSXR750 2002 (K2) USA (E03)

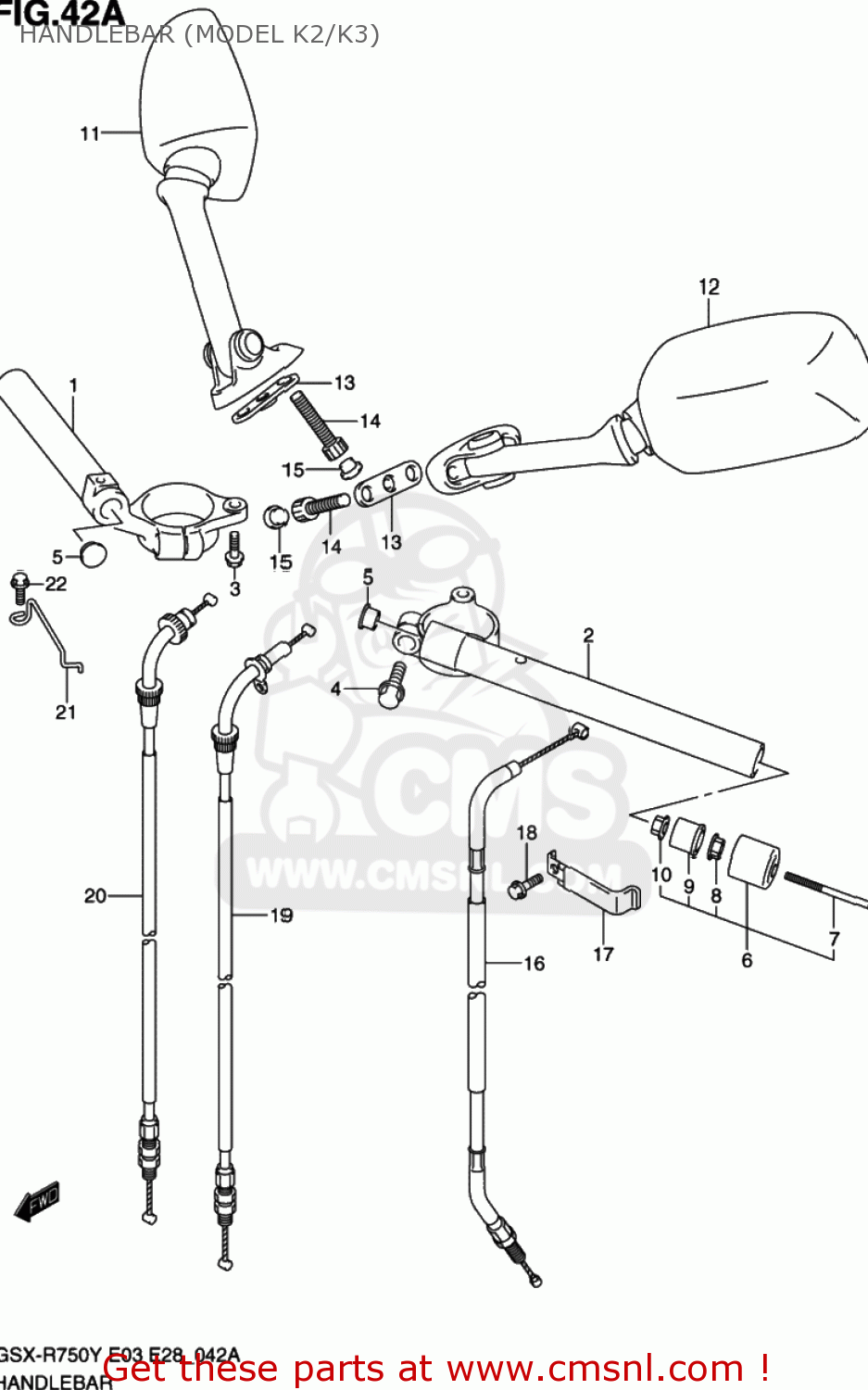

Handlebar (model k2/k3) diagram GSXR750 2002 (K2) USA (E03)
HANDLEBAR (MODEL K2/K3) GSXR750 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5611135F02
ref: 1
HANDLEBAR,R
€ 216.50
2
5615135F01
ref: 2
HANDLEBAR,L
€ 302.00
3
0155006203
ref: 3
01550-0620A
BOLT
€ 2.50
4
5612335F00
ref: 4
BOLT,HANDLEBAR
€ 5.50
5
0925014006
ref: 5
PLUG(OD:17)
€ 3.00
6
5620035830
ref: 6
56200-35831
BALANCER,HANDLEBAR
€ 30.00
7
0212206603
ref: 7
02122-0660B
SCREW
€ 3.00
8
0831610083
ref: 8
08316-1008B
NUT
€ 3.00
9
5627244500
ref: 9
EXPANDER,HANDLE BALANCER
€ 3.00
10
0915906024
ref: 10
NUT
€ 2.00
11
5650040F10
ref: 11
MIRROR ASSY,RR VIEW,R
€ 184.50
12
5660040F10
ref: 12
MIRROR ASSY,RR VIEW,L
€ 161.00
13
9457624F00
ref: 13
CUSHION,RR VIEW MIRRORR
€ 5.00
14
0713006303
ref: 14
07130-0630B
BOLT
€ 3.00
15
0925005009
ref: 15
CAP(OD:10)
€ 2.50
16
5820035F10
ref: 16
CABLE ASSY,CLUTCH
€ 36.50
17
3665135F01
ref: 17
CLAMP
€ 3.50
18
0155005123
ref: 18
01550-0512B
BOLT
€ 2.50
19
5830035F20
ref: 19
CABLE ASSY,THROTTLE NO.1
€ 38.00
20
5830035F30
ref: 20
CABLE ASSY,THROTTLE NO.2
€ 40.50
21
5862135F10
ref: 21
58621-35F1V
GUIDE, CABLE
€ 5.00
22
0155006163
ref: 22
01550-0616A
BOLT
€ 2.50
