FRAME
GSXR750 2002 (K2) USA (E03)

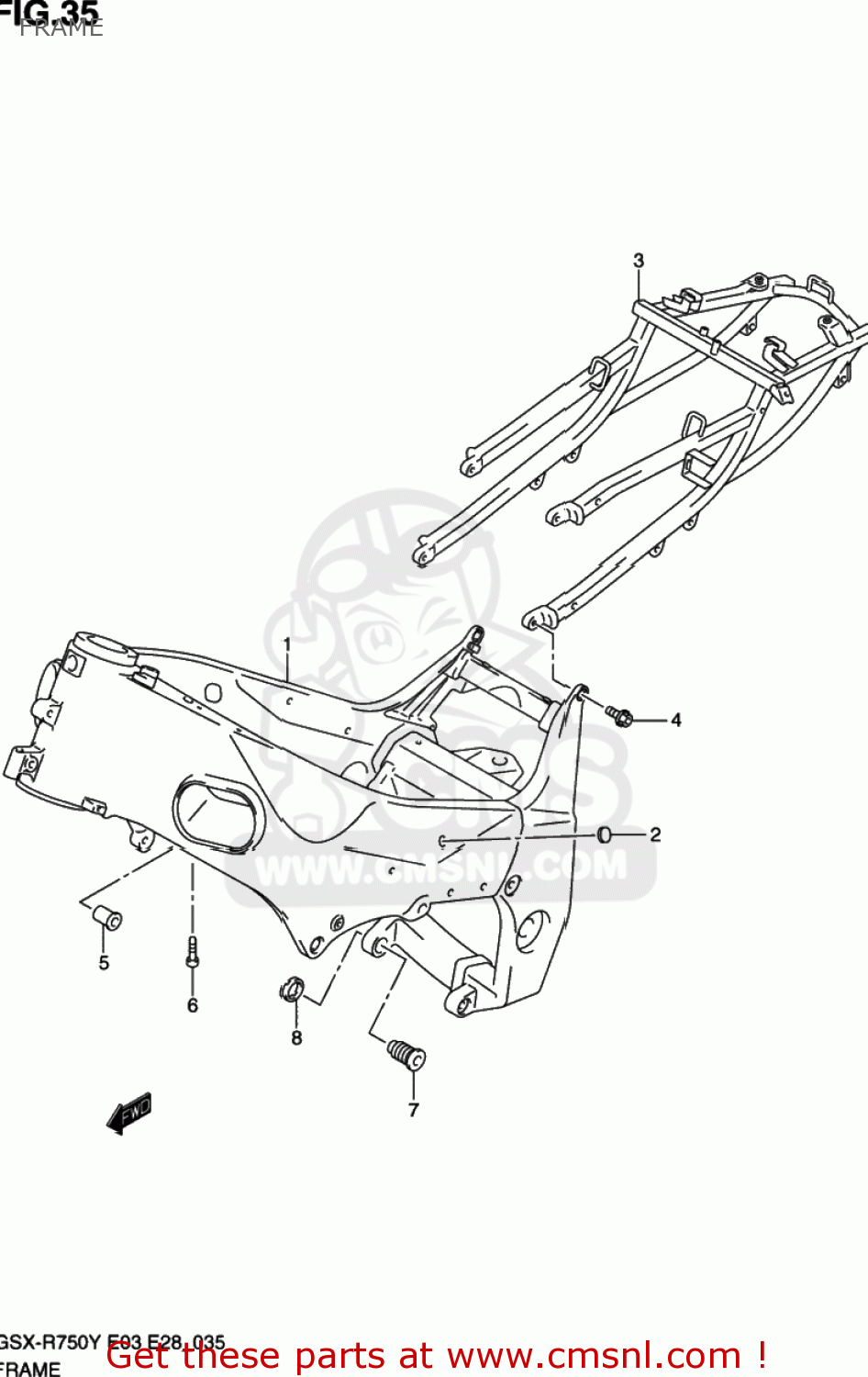

Frame diagram GSXR750 2002 (K2) USA (E03)
FRAME GSXR750 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110035F00
ref: 1-1
41100-35F01
FRAME COMP
€ 1,556.00
1-2
4110035F10
ref: 1-2
41100-35F11
FRAME R750K2
€ 2,161.50
1-3
4110035F20
ref: 1-3
FRAME
€ 1,530.00
2
4358533E00
ref: 2
CAP,TANK RAIL
€ 9.00
3-1
4120035F00
ref: 3-1
41200-35F02
RAIL,SEAT
€ 854.00
3-2
4120035F20
ref: 3-2
41200-35F24
RAIL COMP,SEAT
€ 892.50
3-3
4120035F20
ref: 3-3
41200-35F24
RAIL COMP,SEAT
€ 892.50
4
4123335F00
ref: 4
41233-35F0V
BOLT,SEAT RAIL
€ 9.50
5-1
4191133E00
ref: 5-1
41911-40F01
SPACER,ENGINE MOUNTING
€ 16.50
5-2
4191140F01
ref: 5-2
SPACER,ENGINE MOUNTING
€ 16.50
6
0910608149
ref: 6
09106-08170
BOLT
€ 3.00
7
4192135F00
ref: 7
BOLT,CRANK CASE ADJUST
€ 35.00
8
4192233E00
ref: 8
NUT,CRANK CASE ADJUST BOLT
€ 18.50
