HANDLEBAR (MODEL Y/K1)
GSXR750 2002 (K2) USA (E03)

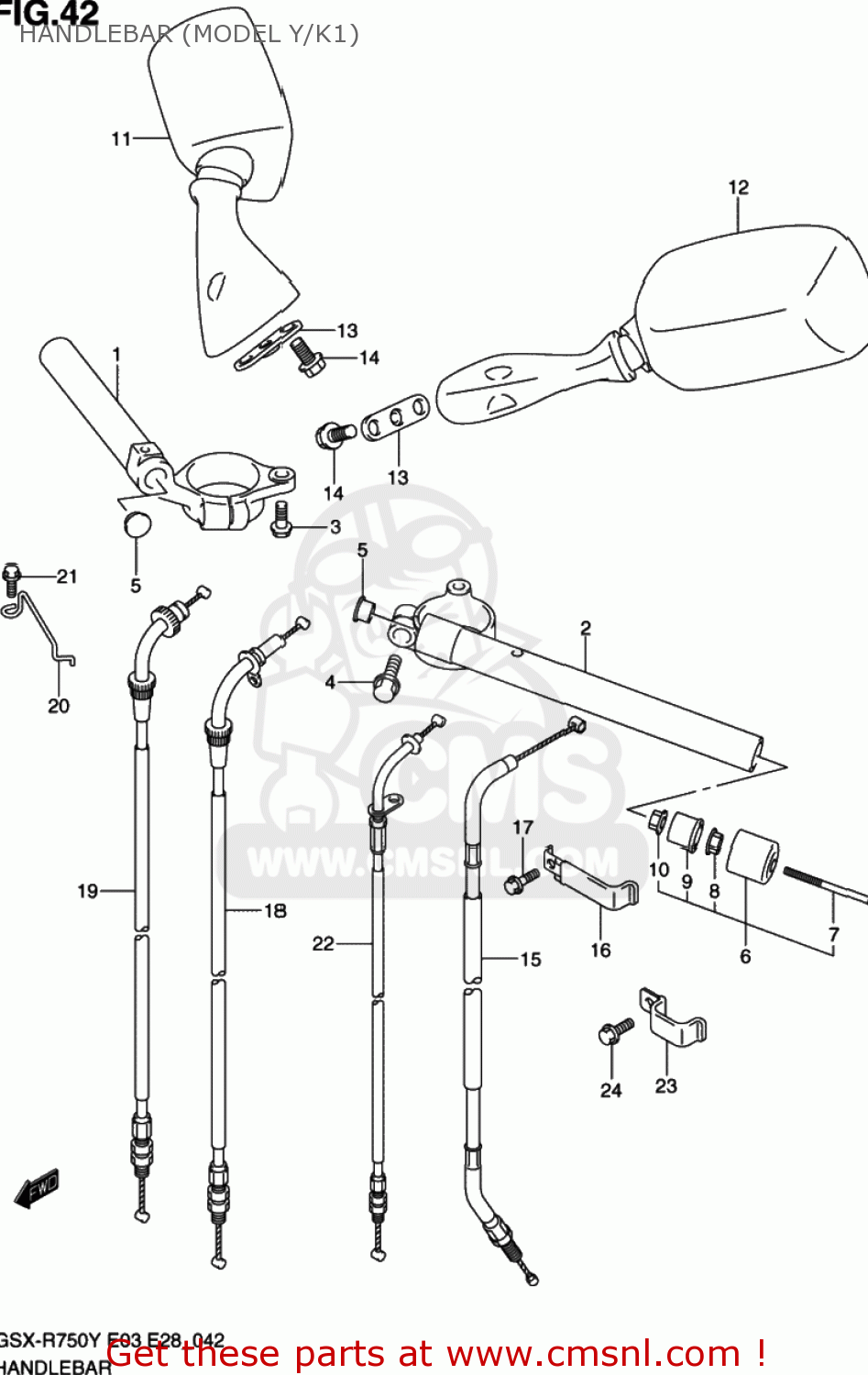

Handlebar (model y/k1) diagram GSXR750 2002 (K2) USA (E03)
HANDLEBAR (MODEL Y/K1) GSXR750 2002 (K2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5611135F00
ref: 1-1
56111-35F02
HANDLEBAR,RIGHT
€ 216.50
1-2
5611135F02
ref: 1-2
HANDLEBAR,R
€ 216.50
2-1
5615135F00
ref: 2-1
56151-35F01
HANDLEBAR,LEFT
€ 302.00
2-2
5615135F01
ref: 2-2
HANDLEBAR,L
€ 302.00
3
0155006203
ref: 3
01550-0620A
BOLT
€ 2.50
4
5612335F00
ref: 4
BOLT,HANDLEBAR
€ 5.50
5
0925014006
ref: 5
PLUG(OD:17)
€ 3.00
6
5620035830
ref: 6
56200-35831
BALANCER,HANDLEBAR
€ 30.00
7
0212206603
ref: 7
02122-0660B
SCREW
€ 3.00
8
0831610083
ref: 8
08316-1008B
NUT
€ 3.00
9
5627244500
ref: 9
EXPANDER,HANDLE BALANCER
€ 3.00
10
0915906024
ref: 10
NUT
€ 2.00
11
5650024F00
ref: 11
MIRROR ASSY,RR VIEW,R
€ 150.50
12
5660024F00
ref: 12
56600-24F20
MIRROR ASSEMBLY,REAR VIEW
€ 71.50
13
9457624F00
ref: 13
CUSHION,RR VIEW MIRRORR
€ 5.00
14
0154706303
ref: 14
01547-0630B
BOLT,G/S SWITC
€ 3.00
15-1
5820035F00
ref: 15-1
CABLE ASSY,CLUTCH
€ 29.50
15-2
5820039F00
ref: 15-2
CABLE ASSY,CLUTCH
€ 38.50
16
3665135F00
ref: 16
36651-35F01
CLAMP,WIRING HARNESS
€ 3.50
17
0155005123
ref: 17
01550-0512B
BOLT
€ 2.50
18
5830035F00
ref: 18
CABLE ASSY,THROTTLE NO.1
€ 40.00
19
5830035F10
ref: 19
CABLE ASSY,THROTTLE NO.2
€ 40.00
20-1
5862135F00
ref: 20-1
GUIDE,THROTTLE CABLE
€ 5.50
20-2
5862135F10
ref: 20-2
58621-35F1V
GUIDE, CABLE
€ 5.00
21
0155006163
ref: 21
01550-0616A
BOLT
€ 2.50
22
5841035F00
ref: 22
CABLE,STARTER
€ 27.50
23
0940310307
ref: 23
CLAMP
€ 3.00
24
0155006103
ref: 24
01550-0610A
BOLT
€ 2.50
