EVAPO SYSTEM (E33)

GSXR750 2002 (K2) USA (E03)

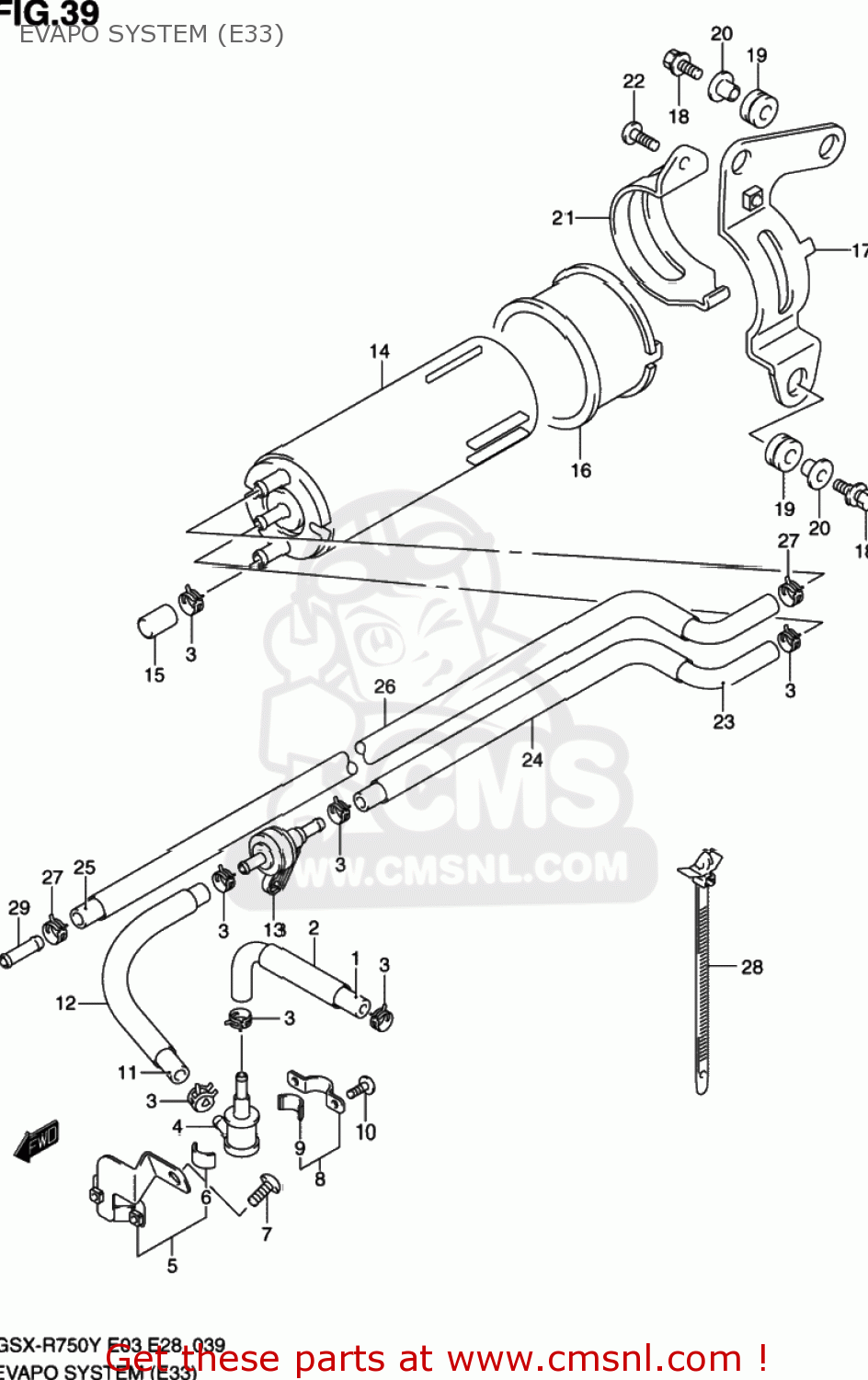

Evapo system (e33) diagram GSXR750 2002 (K2) USA (E03)

EVAPO SYSTEM (E33) GSXR750 2002 (K2) USA (E03)
EVAPO SYSTEM (E33) GSXR750 2002 (K2) USA (E03)
EVAPO SYSTEM (E33) GSXR750 2002 (K2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4443435F00
ref: 1
HOSE,TANK & BREATHER VALVE
€ 0.00
2
0935114152600
ref: 2
PROTECTOR(14.5X15.5X600)
0935114152600
€ 9.00
3
0940111413
ref: 3
CLIP
0940111413
€ 2.50
4
4424017C00
ref: 4
VALVE,FUEL TANK BREATHER
4424017C00
€ 40.00
5
4489024F00
ref: 5
PLATE,TANK BREATHER VALVE
€ 9.50
6
4489424A00
ref: 6
CUSHION
4489424A00
€ 1.50
7
0214206103
ref: 7
02142-0610A
SCREW 6X10
0214206103
€ 2.00
8
4489224A00
ref: 8
PLATE,FUEL TANK BREATHER NO.2
€ 3.00
9
4489424A00
ref: 9
CUSHION
4489424A00
€ 1.50
10
0214204083
ref: 10
02142-0408B
SCREW
0214204083
€ 1.50
11
0935554116600
ref: 11
HOSE(5.4X11.4X600)
0935554116600
€ 12.00
11
0935554116600
ref: 11
HOSE(5.4X11.4X600)
0935554116600
€ 12.00
12
0935114152600
ref: 12
PROTECTOR(14.5X15.5X600)
0935114152600
€ 9.00
13
4424024F00
ref: 13
VALVE,2 WAY & BREATHER VALVE
4424024F00
€ 44.50
14
1721026E00
ref: 14
CANISTER ASSY,CHARCOAL
1721026E00
€ 261.50
15
0925107003
ref: 15
CAP,OD:11.5
0925107003
€ 2.00
16
4488326E00
ref: 16
CUSHION,CANISTER
€ 9.00
17
4488135F00
ref: 17
BRACKET,CANISTER
€ 0.00
18
0911606146
ref: 18
09116-06150
BOLT(6X25)
0911606146
€ 2.50
19
0932008001
ref: 19
CUSHION
0932008001
€ 3.50
20
0916906062
ref: 20
WASHER
0916906062
€ 3.00
21
4488235F00
ref: 21
HOLDER,CANISTER
€ 0.00
22
0214206103
ref: 22
02142-0610A
SCREW 6X10
0214206103
€ 2.00
23
0935554116600
ref: 23
HOSE(5.4X11.4X600)
0935554116600
€ 12.00
24
0935114152600
ref: 24
PROTECTOR(14.5X15.5X600)
0935114152600
€ 9.00
25
0935954112760
ref: 25
HOSE(5.4X11.4X760)
€ 28.00
26
093511415200B
ref: 26
HOSE
€ 0.00
27
0940112404
ref: 27
CLIP
0940112404
€ 2.50
28-1
0940714408
ref: 28-1
09407-17402
CLAMP(L:120)
0940714408
€ 5.00
28-2
0940718402
ref: 28-2
CLAMP(L:165)
0940718402
€ 2.50
29
0936406005
ref: 29
UNION
0936406005
€ 4.00
