FRAME COVER (MODEL K2)

GSXR750 2002 (K2) USA (E03)

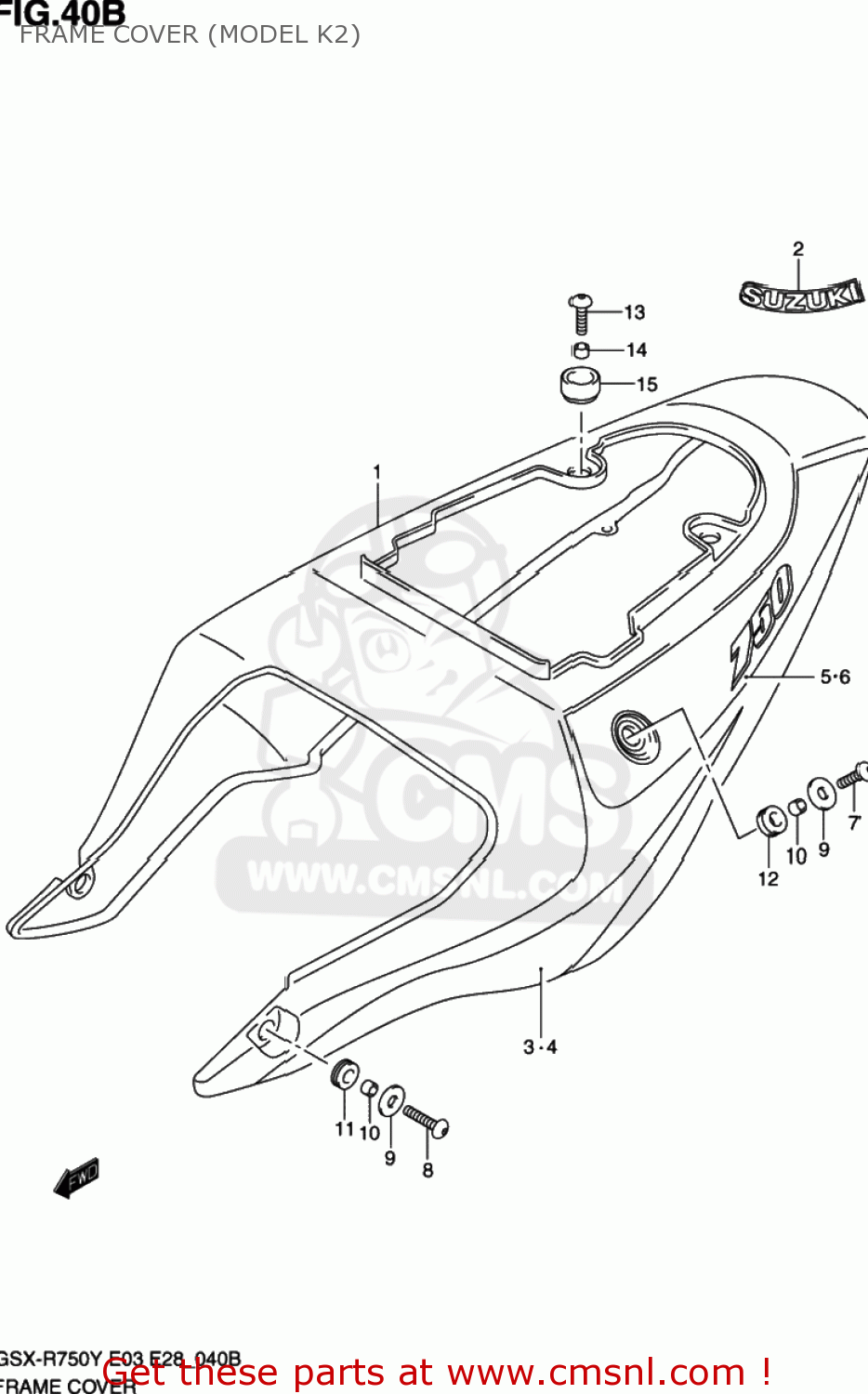

Frame cover (model k2) diagram GSXR750 2002 (K2) USA (E03)

FRAME COVER (MODEL K2) GSXR750 2002 (K2) USA (E03)

FRAME COVER (MODEL K2) GSXR750 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4710035F200JW
ref: 1-1

COVER ASSY,FRAME(WHITE)

€ 1,547.50

1-2

4710035F20Y7L
ref: 1-2

COVER ASSY,FRAME(BLACK)

€ 429.00

1-3

4710035F20Y7M
ref: 1-3

COVER ASSY,FRAME

€ 429.00

2-1

6813139F00019
ref: 2-1

EMBLEM,SUZUKI

€ 9.50

2-2

6813139F00YD8
ref: 2-2

EMBLEM,FRAME COVER

€ 12.00

3-1

6813535F501LE
ref: 3-1

TAPE,FRAME COVER,R(BLUE)

€ 25.00

3-2

6813535F50Y9H
ref: 3-2

TAPE,FRAME COVER,R(YELLOW)

€ 23.50

3-3

6813535F50YD8
ref: 3-3

TAPE,FRAME COVER,R(SILVER)

€ 18.00

4-1

6814535F501LE
ref: 4-1

TAPE,FRAME COVER,L(BLUE)

€ 25.00

4-2

6814535F50Y9H
ref: 4-2

TAPE,FRAME COVER,L(YELLOW)

€ 24.00

4-3

6814535F50YD8
ref: 4-3

TAPE,FRAME COVER,L(SILVER)

€ 18.00

5-1

6813535F40FS8
ref: 5-1

TAPE,FRAME COVER,R

€ 46.00

5-2

6813535F40HB8
ref: 5-2

TAPE,FRAME COVER,R

€ 23.00

5-3

6813535F40BZ9
ref: 5-3

TAPE,FRAME COVER,R

€ 25.50

6-1

6814535F40FS8
ref: 6-1

TAPE,COVER,L

€ 43.00

6-2

6814535F40HB8
ref: 6-2

TAPE,FRAME COVER,L

€ 23.00

6-3

6814535F40BZ9
ref: 6-3

TAPE,FRAME COVER,L

€ 25.50

7

0913906029
ref: 7

SCREW(6X25)

€ 5.00

8

0913906042
ref: 8

SCREW(6X30)

€ 7.50

9

0916006047
ref: 9

WASHER(6.5X20X2)

€ 2.00

10

0918006283
ref: 10

SPACER(6.5X10X7)

€ 2.00

11

4716135F00
ref: 11

CUSHION,FRAME COVER FR

€ 5.50

12

4716135F10
ref: 12

CUSHION,FRAME COVER SIDE

€ 6.50

13

0913906029
ref: 13

SCREW(6X25)

€ 5.00

14

0918006286
ref: 14

SPACER(6.5X10X9.4)

€ 2.50

15

0932010045
ref: 15

CUSHION

€ 3.50
