CRANKSHAFT

GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

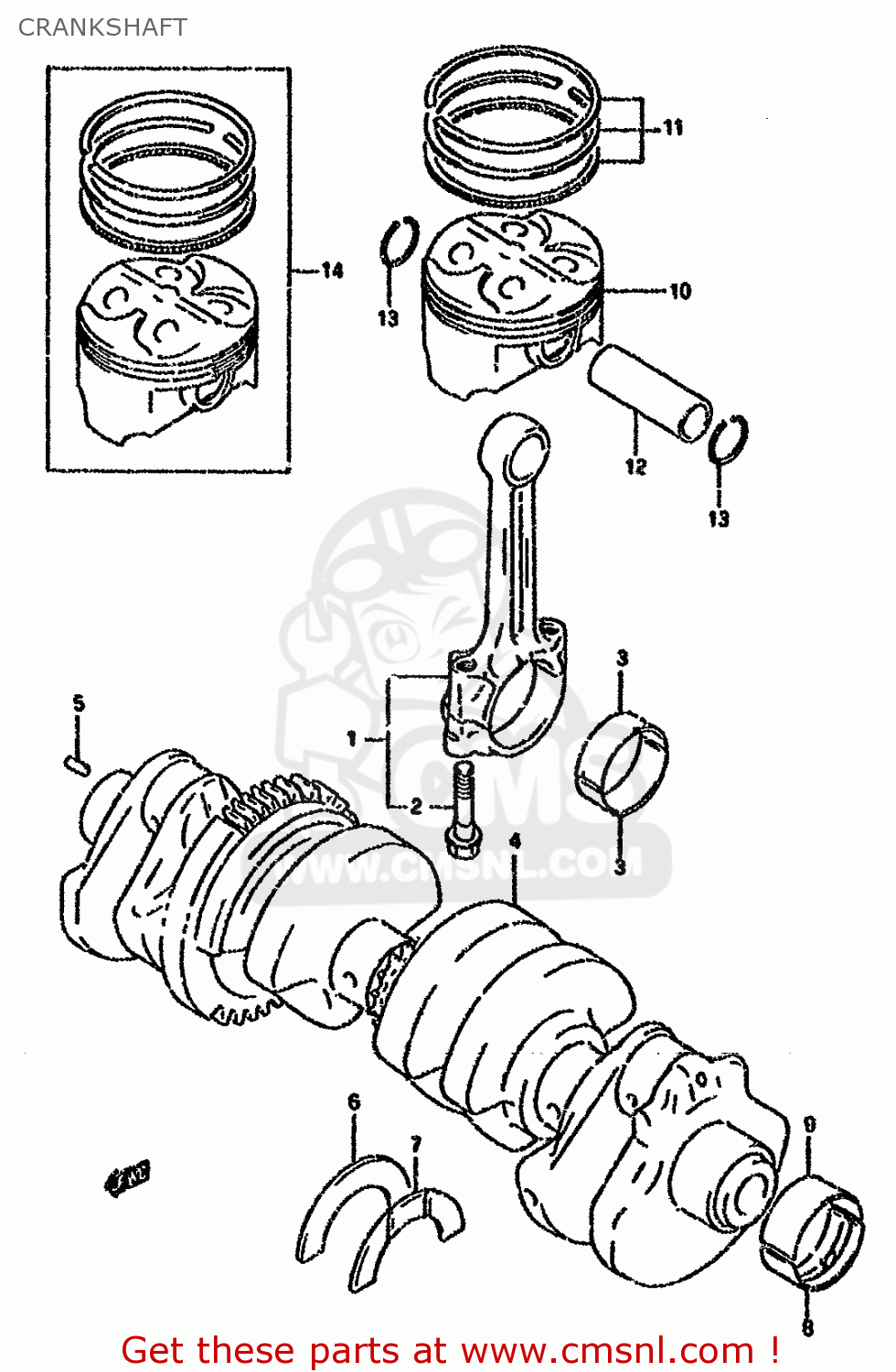

Crankshaft diagram GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

CRANKSHAFT GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
CRANKSHAFT GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
CRANKSHAFT GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
1216017D00
ref: 1-1
MODEL N/P
ROD ASSEMBLY,CONNECTING
€ 197.00
1-2
1216017E00
ref: 1-2
MODEL R/S
CONNECTING ROD ASSEMBLY
€ 197.00
2
1216327A52
ref: 2
BOLT,CONNECTING ROD
1216327A52
€ 20.00
3-1
1216417E010A0
ref: 3-1
BEARING,CRANK PIN
1216417E010A0
€ 14.50
3-2
1216417E010B0
ref: 3-2
BEARING,CRANK PIN
1216417E010B0
€ 14.50
3-3
1216417E010C0
ref: 3-3
BEARING,CRANK PIN
1216417E010C0
€ 15.00
3-4
1216417E010D0
ref: 3-4
BEARING,CRANK PIN
1216417E010D0
€ 15.50
4
1200017821
ref: 4
CRANKSHAFT SET
1200017821
€ 1,346.00
5
0422104089
ref: 5
PIN
0422104089
€ 1.50
6
1222817E000D0
ref: 6
BEARING,CRANK THRUST(GREEN)
1222817E000D0
€ 8.00
7-1
1222817E000A0
ref: 7-1
BEARING,CRANK THRUST(RED)
1222817E000A0
€ 7.50
7-2
1222817E000B0
ref: 7-2
BEARING,CRANK THRUST(BLACK)
1222817E000B0
€ 7.50
7-3
1222817E000C0
ref: 7-3
BEARING,CRANK THRUST(BLUE)
1222817E000C0
€ 7.50
7-4
1222817E000D0
ref: 7-4
BEARING,CRANK THRUST(GREEN)
1222817E000D0
€ 8.00
7-5
1222817E000E0
ref: 7-5
BEARING,CRANK THRUST(YELLOW)
1222817E000E0
€ 7.50
7-6
1222817E000F0
ref: 7-6
BEARING,CRANK THRUST(WHITE)
1222817E000F0
€ 7.50
8-1
1222917E000A0
ref: 8-1
LOWER
BEARING,CRANKSHAFT(GREEN)
1222917E000A0
€ 15.50
8-2
1222917E000B0
ref: 8-2
BEARING,CRANKSHAFT(BLACK)
1222917E000B0
€ 16.50
8-3
1222917E000C0
ref: 8-3
BEARING,CRANKSHAFT(BROWN)
1222917E000C0
€ 16.50
8-4
1222917E000D0
ref: 8-4
BEARING,CRANKSHAFT(YELLOW)
1222917E000D0
€ 15.50
9-1
1222917E100A0
ref: 9-1
UPPER
BEARING,CRANKSHAFT(GREEN)
1222917E100A0
€ 14.00
9-2
1222917E100B0
ref: 9-2
BEARING,CRANKSHAFT(BLACK)
1222917E100B0
€ 16.50
9-3
1222917E100C0
ref: 9-3
BEARING,CRANKSHAFT(BROWN)
1222917E100C0
€ 16.50
9-4
1222917E100D0
ref: 9-4
BEARING,CRANKSHAFT(YELLOW)
1222917E100D0
€ 15.00
10-1
1211117E040F0
ref: 10-1
MODEL N/P
PISTON (70.00MM)
1211117E040F0
€ 84.00
10-2
1211117E200F0
ref: 10-2
MODEL R/S
PISTON (70.00MM)
1211117E200F0
€ 84.00
11-1
1214007D10
ref: 11-1
MODEL N/P
RING SET,PISTON
1214007D10
€ 103.50
11-2
1214017E10
ref: 11-2
MODEL R/S
RING SET,PISTON
1214017E10
€ 83.50
12
1215107D00
ref: 12
PIN,PISTON
1215107D00
€ 13.50
13
0938118003
ref: 13
CIRCLIP
0938118003
€ 3.00
14-1
1210317820050
ref: 14-1
OPT,MODEL N/P
PISTON SET(OS:0.5)
€ 127.50
14-2
1210317820100
ref: 14-2
OPT,MODEL N/P
PISTON SET (OS:1.0)
€ 162.00
14-3
1210017E20050
ref: 14-3
OPT,MODEL R/S
PISTON SET(OS:0.5)
1210017E20050
€ 206.00
14-4
1210017E20100
ref: 14-4
OPT,MODEL R/S
PISTON SET (OS:1.0)
€ 125.00
