HANDLE SWITCH

GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

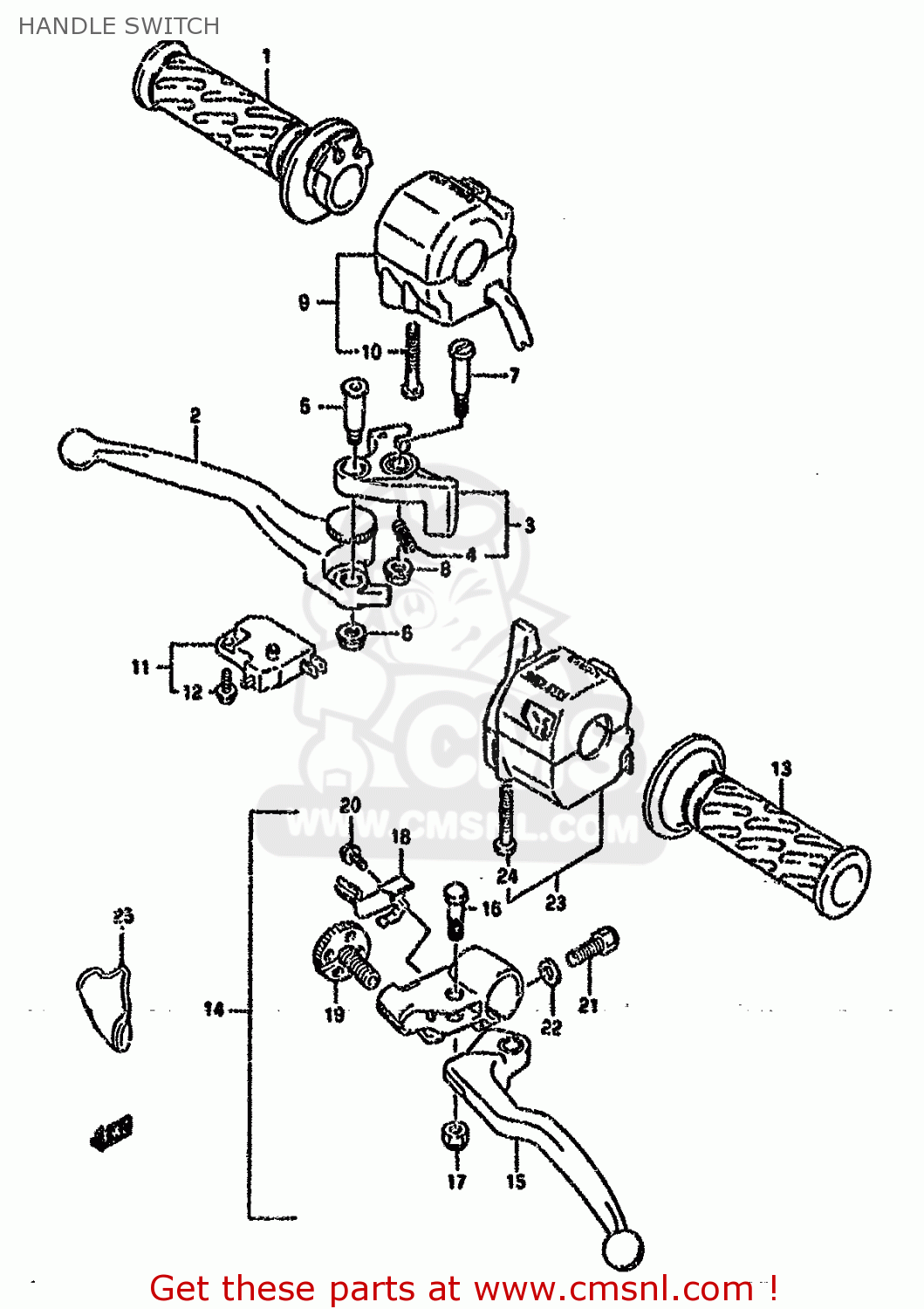

Handle switch diagram GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

HANDLE SWITCH GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

HANDLE SWITCH GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1-1

5711022D01
ref: 1-1
MODEL P/R

GRIP,THROTTLE

€ 22.50

1-2

5711046E00
ref: 1-2
MODEL S

GRIP,THROTTLE

€ 26.00

2

5742032C00
ref: 2

LEVER,ADJUST

€ 39.50

3

5743040C00
ref: 3

KNOCKER

€ 51.00

4

5743832C00
ref: 4

SPRING

€ 4.00

5

5743732C00
ref: 5

BOLT,LEVER

€ 6.50

6

0831931065
ref: 6

NUT

€ 2.50

7

5743117C00
ref: 7

BOLT,LEVER PIVOT

€ 8.00

8

0831616064
ref: 8

NUT 6MM

€ 2.50

9-1

3720017E12
ref: 9-1

SWITCH,HANDLE,

€ 121.00

9-2

3720017E31
ref: 9-2
E24

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 108.00

10

0211205455
ref: 10

SCREW, 5X45

€ 4.00

11

5746017C00
ref: 11

SWITCH ASSEMBLY,STOP

€ 32.50

12

5746517C00
ref: 12

SCREW

€ 1.50

13

5721122D00
ref: 13

GRIP,LEFT

€ 11.50

14

5750032C01
ref: 14

LEVER ASSY,CLUTCH

€ 53.00

15

5762027A31
ref: 15

LEVER,CLUTCH

€ 34.00

16

5743149110
ref: 16

BOLT,LEVER PIVOT

€ 5.00

17

0831921065
ref: 17

NUT

€ 2.50

18

5764420A02
ref: 18

ADJUST,SPRING

€ 5.00

19

5764120A03
ref: 19

ADJUSTER,LOCK

€ 24.00

20

0211274083
ref: 20

SCREW

€ 3.50

21

0120406204
ref: 21

BOLT

€ 2.00

22

0832221064
ref: 22

WASHER

€ 2.00

23

3740017E11
ref: 23

SWITCH,HANDLE,

€ 157.00

24

0211205455
ref: 24

SCREW, 5X45

€ 4.00

25

5766120A01
ref: 25
MODEL R/S

COVER,CLUTCH LEVER

€ 10.00
