WIRING HARNESS (MODEL R/S)

GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

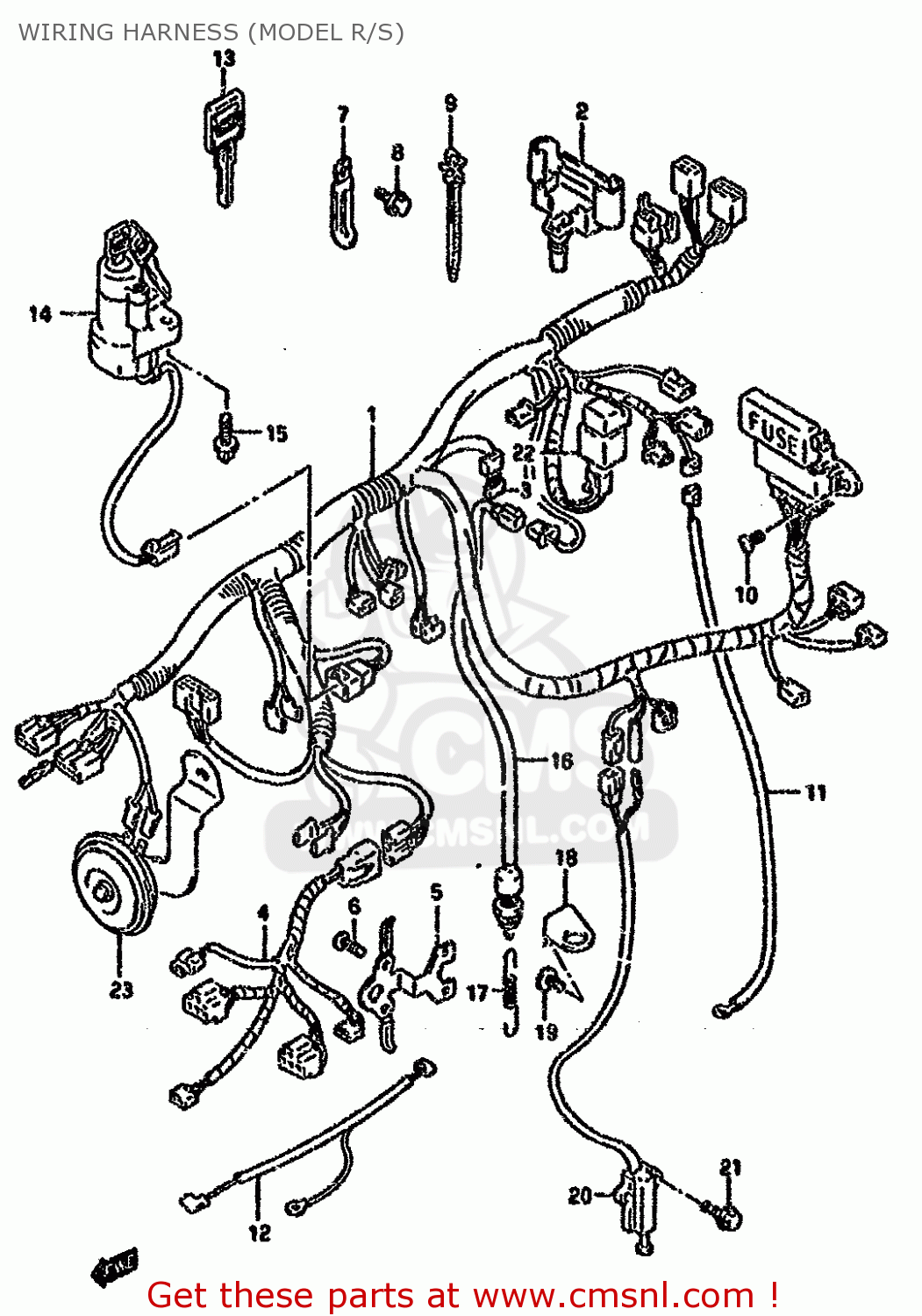

Wiring harness (model r/s) diagram GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

WIRING HARNESS (MODEL R/S) GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
WIRING HARNESS (MODEL R/S) GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
WIRING HARNESS (MODEL R/S) GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
3661017E20
ref: 1
HARNESS,WIRING NO.1
€ 457.50
2
3186117E20
ref: 2
CAP,STARTER RELAY
€ 13.00
3
3661138A00
ref: 3
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
4
3662017E00
ref: 4
HARNESS,WIRING NO.2
€ 74.50
5
3668017E20
ref: 5
HOLDER COMP,COUPLER
€ 7.00
6
0354105083
ref: 6
SCREW 5X8
0354105083
€ 2.00
7-1
0940406206
ref: 7-1
CLAMP(L:45)
€ 2.50
7-2
0940406413
ref: 7-2
CLAMP
0940406413
€ 2.50
7-3
0940406426
ref: 7-3
CLAMP
0940406426
€ 3.00
7-4
0940406429
ref: 7-4
CLAMP(L:45)
€ 2.50
7-5
0940406431
ref: 7-5
CLAMP(L:65)
0940406431
€ 2.50
7-6
0940406434
ref: 7-6
CLAMP(L:80 T:1.0)
0940406434
€ 3.00
7-7
0940408418
ref: 7-7
CLAMP(L:65)
€ 3.50
7-8
0940408420
ref: 7-8
CLAMP(L:120 T:1.0)
0940408420
€ 3.50
8
0155006103
ref: 8
BOLT
0155006103
€ 2.50
9-1
0940711402
ref: 9-1
CLAMP(L:90)
0940711402
€ 2.50
9-2
0940714403
ref: 9-2
CLAMP(L:125)
0940714403
€ 2.50
9-3
0940718403
ref: 9-3
CLAMP L:165
€ 2.50
9-4
0940725401
ref: 9-4
CLAMP(L:235)
0940725401
€ 4.00
10
0214206123
ref: 10
SCREW 6X12
0214206123
€ 2.00
11
3685246E10
ref: 11
WIRE,WATER TEMPERATURE GAUGE
€ 9.50
12
3685117E10
ref: 12
WIRE,OIL PRESSURE SWITCH LEAD
3685117E10
€ 13.50
13
3714618E00
ref: 13
OPT
KEY,BLANK
€ 13.00
14-1
3710018E00
ref: 14-1
MODEL R
LOCK ASSEMBLY,STEERING
€ 110.00
14-2
3710018E01
ref: 14-2
MODEL S
LOCK ASSEMBLY,STEERING
€ 110.00
14-3
3710018E10
ref: 14-3
MODEL R E24
SWITCH ASSY,IGNITION
€ 136.50
14-4
3710018E11
ref: 14-4
MODEL S E24
SWITCH ASSY,IGNITION
€ 136.50
15
0911908082
ref: 15
BOLT M8X20
0911908082
€ 3.00
16
3774024A00
ref: 16
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
17
0944306012
ref: 17
SPRING
0944306012
€ 3.00
18
4325033C00
ref: 18
BRACKET,STOP LAMP SWITCH
4325033C00
€ 5.00
19
0913906027
ref: 19
SCREW(6X12)
0913906027
€ 3.00
20
3784012D00
ref: 20
SWITCH ASSEMBLY,SIDE STAND
€ 76.00
21
0155006203
ref: 21
BOLT
0155006203
€ 2.50
22
3874024B10
ref: 22
RELAY ASSEMBLY
3874024B10
€ 37.50
23-1
3850217E11
ref: 23-1
HORN ASSEMBLY,LOW PITCH
€ 78.00
23-2
3850117E10
ref: 23-2
E25,E34,E37,E39
HORN ASSY, HIGH
€ 72.00
21
4325033C00
ref: 21
BRACKET,STOP LAMP SWITCH
4325033C00
€ 5.00
22
0913906027
ref: 22
SCREW(6X12)
0913906027
€ 3.00
23
3784048B21
ref: 23
SWITCH ASSEMBLY,SIDE STAND
3784048B21
€ 76.00
24
0151706204
ref: 24
BOLT 6X20
0151706204
€ 2.50
25
3874024B10
ref: 25
RELAY ASSEMBLY
3874024B10
€ 37.50
26-1
3850217E00
ref: 26-1
HORN ASSEMBLY,LOW PITCH
€ 78.00
26-2
3850117E00
ref: 26-2
E24,E25,E34,E39
HORN ASSY, HIGH
€ 72.00
up

all assemblies
