TAIL LAMP (MODEL R/S)

GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

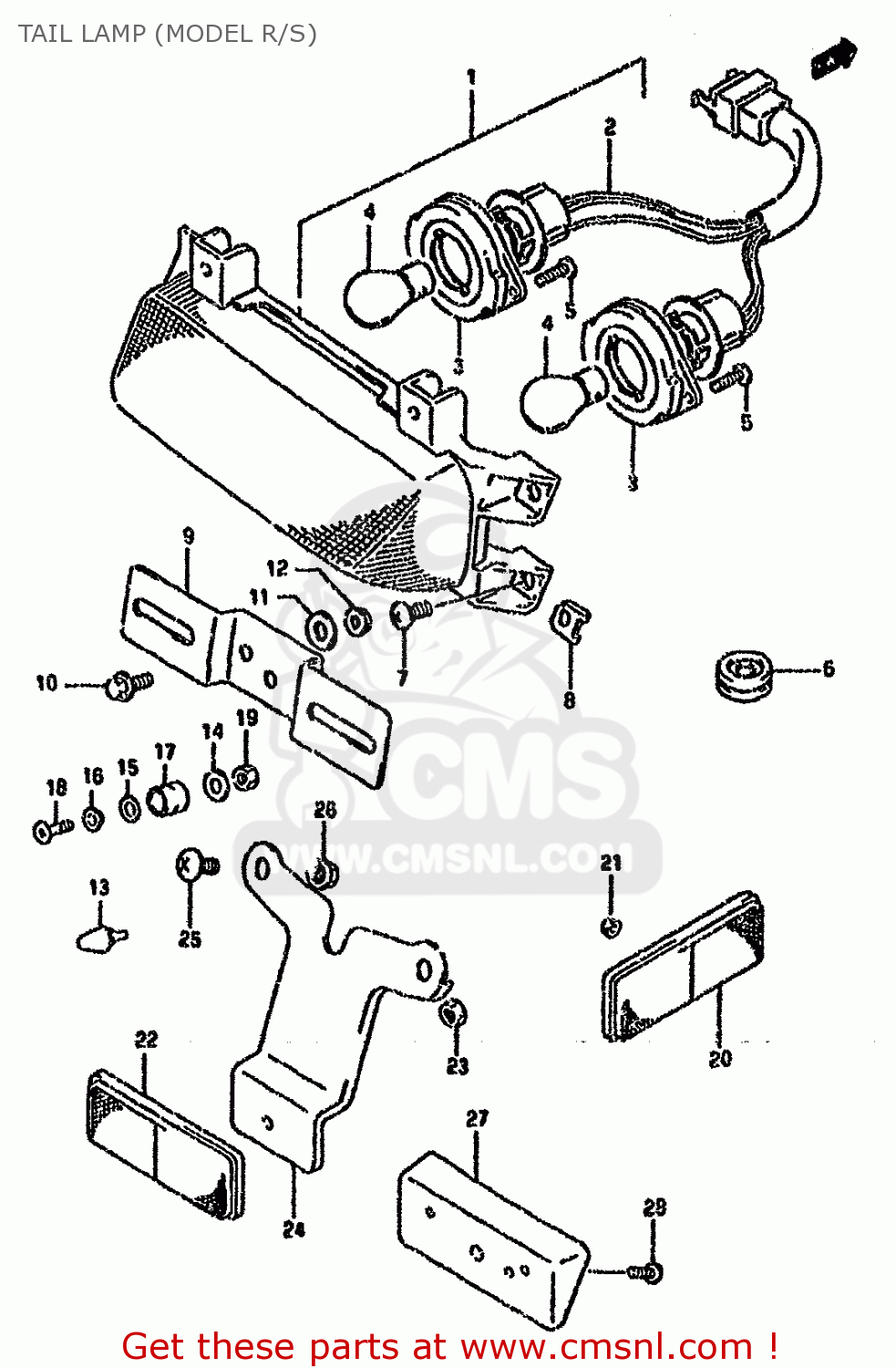

Tail lamp (model r/s) diagram GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

TAIL LAMP (MODEL R/S) GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
TAIL LAMP (MODEL R/S) GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
TAIL LAMP (MODEL R/S) GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
3571017E00
ref: 1
LAMP ASSY, REAR COMBINATION
3571017E00
€ 208.00
2
3571817E00
ref: 2
SOCKET & CORD ASSY
€ 70.00
3
3576548B21
ref: 3
CUSHION
3576548B21
€ 10.50
4
0947112083
ref: 4
BULB(12V21/5W)
0947112083
€ 6.00
5
0321104123
ref: 5
SCREW
0321104123
€ 1.50
6
0930807013
ref: 6
GROMMET
0930807013
€ 3.50
7
0214205123
ref: 7
SCREW 5X12
0214205123
€ 1.50
8
0914805021
ref: 8
NUT
0914805021
€ 1.50
9
3592717E00
ref: 9
BRACKET,LICENSE PLATE
3592717E00
€ 14.00
10
0155006163
ref: 10
BOLT
0155006163
€ 2.50
11
0916006088
ref: 11
WASHER(6.5X20X1.6)
0916006088
€ 2.00
12
0831620063
ref: 12
NUT
0831620063
€ 2.00
13-1
0932106028
ref: 13-1
CUSHION
0932106028
€ 3.00
13-2
0932106026
ref: 13-2
E18,E22,E25,E39
CUSHION
0932106026
€ 3.50
14
0916006006
ref: 14
E18,E22,E25,E39
WASHER
0916006006
€ 2.00
15
0916006079
ref: 15
E18,E22,E25,E39
WASHER(6.5X16X1.2)
0916006079
€ 2.00
16
0916906032
ref: 16
E18,E22,E25,E39
WASHER
€ 2.50
17
0932008058
ref: 17
E18,E22,E25,E39
CUSHION, PLATE
€ 3.00
18
0214206203
ref: 18
E18,E22,E25,E39
SCREW
0214206203
€ 2.00
19
0831921066
ref: 19
E18,E22,E25,E39
NUT
0831921066
€ 2.00
20
3595043431
ref: 20
E39
REFLEX REFLECTOR,FR SIDE
3595043431
€ 12.00
21
0831000053
ref: 21
E39
NUT
€ 2.50
22-1
3597000A21
ref: 22-1
MODEL R
REFLECTOR ASSEMBLY,REAR
3597000A21
€ 22.00
22-2
3597024D60
ref: 22-2
E24,MODEL S
REFLECTOR ASSY,RR
3597024D60
€ 19.50
23
0831000053
ref: 23
NUT
€ 2.50
24-1
3597418D00
ref: 24-1
BRACKET,REAR,REAR
3597418D00
€ 3.50
24-2
3597418D10
ref: 24-2
E2,E34
BRACKET,RR RR
3597418D10
€ 13.00
25
0214206123
ref: 25
SCREW 6X12
0214206123
€ 2.00
26
0831620063
ref: 26
NUT
0831620063
€ 2.00
27
3597718D00
ref: 27
E18,E22,E25,E39
SPACER,RR RR
€ 8.00
28
0354104123
ref: 28
E18,E22,E25,E39
SCREW
0354104123
€ 1.50
27
0214206123
ref: 27
SCREW 6X12
0214206123
€ 2.00
28
0831626065
ref: 28
NUT
0831626065
€ 2.00
29
3597718D00
ref: 29
E15,E17,E18,E22,E25,
SPACER,RR RR
€ 8.00
30
0354104125
ref: 30
E15,E17,E18,E22,E25,
SCREW
0354104125
€ 1.50
