TRANSMISSION

GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

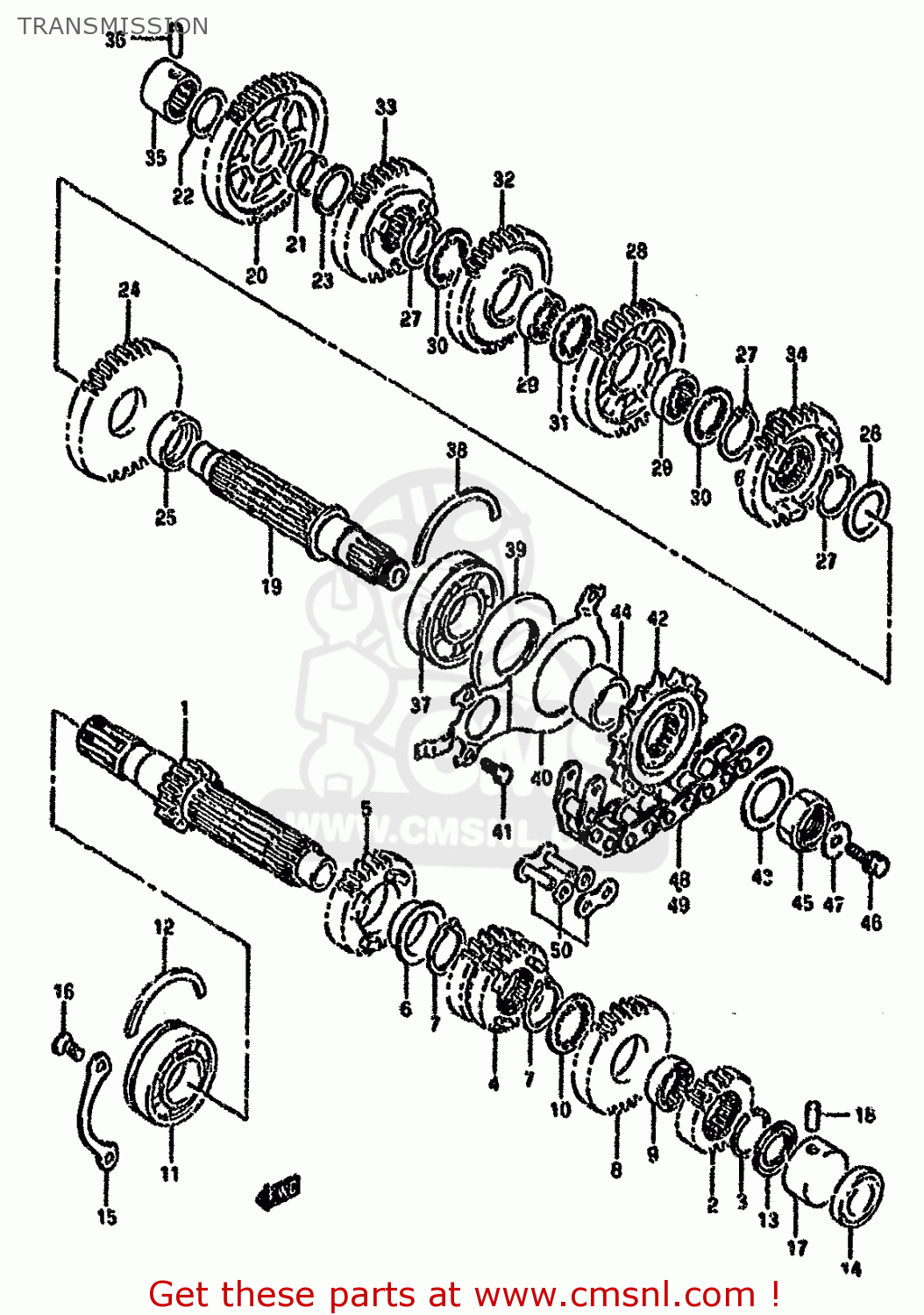

Transmission diagram GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

TRANSMISSION GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
TRANSMISSION GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
TRANSMISSION GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
2412117E01
ref: 1-1
MODEL N/P
SHAFT,COUNTER
2412117E01
€ 205.50
1-2
2412017E20
ref: 1-2
MODEL R/S
SHAFT,COUNTER
2412017E20
€ 205.50
2
2422117E00
ref: 2
GEAR,SECOND DRIVE
2422117E00
€ 70.00
3
0938027004
ref: 3
CIRCLIP
0938027004
€ 3.50
4
2423117E00
ref: 4
GEAR,THIRD & FOURTH DRIVE
2423117E00
€ 146.50
5-1
2425117E01
ref: 5-1
MODEL N/P
GEAR,FIFTH DRIVE
€ 146.00
5-2
2425117E10
ref: 5-2
MODEL R/S
GEAR,FIFTH DRIVE
€ 146.00
6
0930128001
ref: 6
BUSH(28X32X2)
0930128001
€ 19.50
7
0938027001
ref: 7
CIRCLIP
0938027001
€ 2.00
8-1
2426117E01
ref: 8-1
MODEL N/P
GEAR,SIXTH DRIVE
€ 153.50
8-2
2426117E10
ref: 8-2
MODEL R/S
GEAR,SIXTH DRIVE
2426117E10
€ 153.50
9
2426217E00
ref: 9
BUSHING,SIXTH DRIVE GEAR
€ 29.00
10
0916727001
ref: 10
WASHER,LOCK
0916727001
€ 3.50
11-1
0926225051
ref: 11-1
MODEL N/P/R
BEARING(25X62X17)
0926225051
€ 59.50
11-2
0926225115
ref: 11-2
MODEL S
BEARING(25X62X17)
€ 54.00
12-1
0939062006
ref: 12-1
MODEL N/P/R
C-RING
0939062006
€ 5.00
12-2
0939062012
ref: 12-2
MODEL S
C RING
0939062012
€ 5.00
13
0928520006
ref: 13
SEAL,OIL(20X31.2X2.7)
0928520006
€ 7.00
14
2311627A30
ref: 14
CAP,COUNTER SHAFT,L
2311627A30
€ 10.00
15
2474127A00
ref: 15
RETAINER,CNTR SHAFT BEARING
2474127A00
€ 7.00
16-1
0212206167
ref: 16-1
MODEL N/P
SCREW
0212206167
€ 2.00
16-2
0212206163
ref: 16-2
MODEL R/S
SCREW ,6X16
0212206163
€ 2.00
17
0926320069
ref: 17
BEARING(20X34X17.5)
0926320069
€ 39.50
18
0422107129
ref: 18
PIN
0422107129
€ 1.50
19-1
2413117E01
ref: 19-1
MODEL N/P
SHAFT,DRIVE
€ 212.50
19-2
2413117E10
ref: 19-2
MODEL R/S
SHAFT,DRIVE
2413117E10
€ 212.50
20
2431117E01
ref: 20
GEAR,1ST DRIVEN(NT:43)
€ 109.00
21
0930022008
ref: 21
BUSH(22X26X9)
0930022008
€ 10.50
22
0821120341
ref: 22
WASHER
0821120341
€ 2.00
23
0821122341
ref: 23
WASHER
0821122341
€ 3.00
24-1
2432117E02
ref: 24-1
MODEL N/P,-24321-17E
GEAR,2ND DRIVEN
2432117E02
€ 85.50
24-2
2432117E10
ref: 24-2
MODEL R/S
GEAR,2ND DRIVEN
2432117E10
€ 90.00
25-1
09300280030A0
ref: 25-1
MODEL N/P
BUSHING
€ 19.50
25-2
0930028003
ref: 25-2
MODEL R/S
BUSH(28X32X9.5)
0930028003
€ 19.50
26
0821128381
ref: 26
WASHER, THRUST
0821128381
€ 3.50
27
0938027001
ref: 27
CIRCLIP
0938027001
€ 2.00
28
2433117E02
ref: 28
GEAR,3RD DRIVEN(NT:33)
2433117E02
€ 103.00
29
2433217E02
ref: 29
BUSH,3RD DRIVEN GEAR
2433217E02
€ 25.00
30
0916727001
ref: 30
WASHER,LOCK
0916727001
€ 3.50
31
0916727002
ref: 31
WASHER,LOCK
0916727002
€ 5.00
32
2434117E02
ref: 32
GEAR,FOURTH DRIVEN
€ 131.00
33
2435117E02
ref: 33
GEAR,5TH DRIVEN(NT:29)
€ 101.00
34-1
2436117E10
ref: 34-1
MODEL N/P-24361-17E0
GEAR,SIXTH DRIVEN
2436117E10
€ 100.50
34-2
2436117E20
ref: 34-2
MODEL R/S
GEAR,6TH DRIVEN
2436117E20
€ 110.00
35
0926320040
ref: 35
BEARING(20X34X20)
0926320040
€ 42.50
36
0422107209
ref: 36
PIN
0422107209
€ 1.50
37
0926228025
ref: 37
BEARING(28X70X18)
0926228025
€ 97.50
38
0939070001
ref: 38
C RING
0939070001
€ 5.50
39
0928336008
ref: 39
SEAL,OIL(34.8X70X6)
0928336008
€ 16.50
40
2475117E00
ref: 40
RETAINER,DRIVE SHAFT OIL SEAL
2475117E00
€ 9.00
41-1
0110706107
ref: 41-1
MODEL N/P
BOLT
€ 2.00
41-2
0150006123
ref: 41-2
MODEL R/S
BOLT
0150006123
€ 2.00
42
2751017C00
ref: 42
SPROCKET,ENGINE (NT:15)
€ 67.00
43
0821125402
ref: 43
WASHER,THRUST
0821125402
€ 3.00
44
0918025098
ref: 44
SPACER(25X36X17.7)
0918025098
€ 19.00
45
0915920004
ref: 45
NUT
0915920004
€ 12.00
46
0114706168
ref: 46
MODEL N/P
BOLT
€ 2.50
47
0821206222
ref: 47
MODEL N/P
WASHER
0821206222
€ 1.50
48
2760017C20108
ref: 48
MODEL N/P
CHAIN ASSEMBLY,DRIVE 50GSV
€ 258.00
49
2760017E20108
ref: 49
MODEL R/S
CHAIN ASSEMBLY RK50GSVZ1.1
€ 258.00
50
2762017E20
ref: 50
MODEL R/S
JOINT SET,DRIVE CHAIN
€ 8.00
up

all assemblies
