FRAME (MODEL R/S)

GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

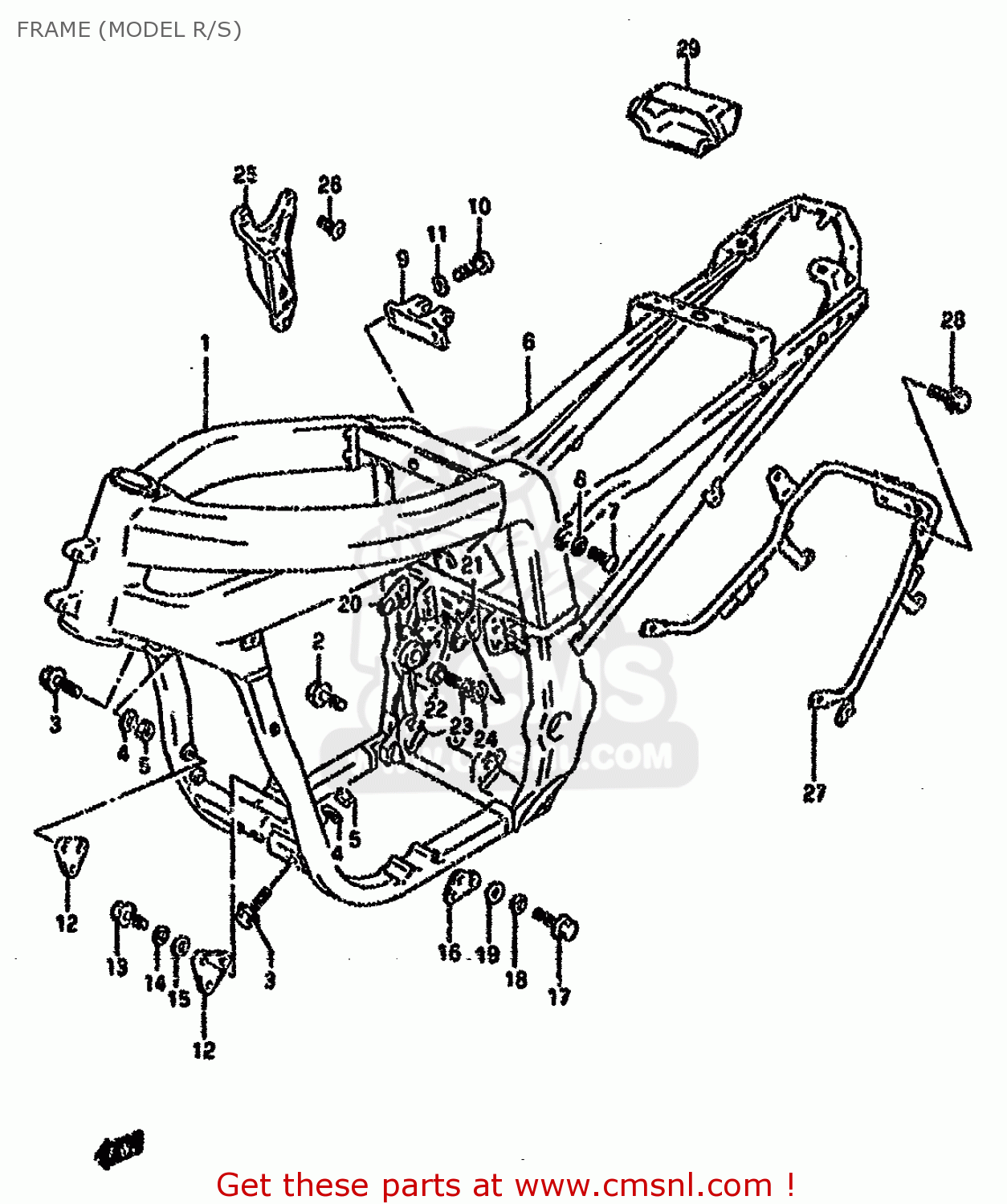

Frame (model r/s) diagram GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)

FRAME (MODEL R/S) GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
FRAME (MODEL R/S) GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
FRAME (MODEL R/S) GSXR750W 1992 (N) (E01 E02 04 15 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
4110117081
ref: 1
FRAME SET
€ 0.00
2-1
0135010307
ref: 2-1
MODEL R
BOLT,RH
€ 0.00
2-2
0155010303
ref: 2-2
MODEL S
BOLT
0155010303
€ 3.00
3
0155010453
ref: 3
BOLT
0155010453
€ 3.00
4
0916010013
ref: 4
WASHER (10.1X21X2.3)
0916010013
€ 2.00
5
0915910027
ref: 5
NUT
0915910027
€ 3.00
6
4120017E50
ref: 6
RAIL COMP,SEAT
€ 1,232.00
7
4352917D00
ref: 7
BOLT,FOOTREST BRACKET
4352917D00
€ 5.50
8
0916410010
ref: 8
WASHER
0916410010
€ 6.50
9
4176217E00
ref: 9
BRACKET,R.C.U.
4176217E00
€ 89.00
10
0910608056
ref: 10
BOLT(8X28)
0910608056
€ 2.00
11
0916408015
ref: 11
WASHER
0916408015
€ 3.00
12
4191117E00
ref: 12
PLATE,ENG MTG NO.1
€ 27.00
13
0910308255
ref: 13
BOLT
€ 2.50
14
0832101083
ref: 14
LOCK WASHER
0832101083
€ 2.50
15
0916008010
ref: 15
WASHER (8.2X20X1.6)
0916008010
€ 1.50
16-1
4192117E00
ref: 16-1
PLATE,ENGINE MOUNTING
€ 8.50
16-2
4193117E00
ref: 16-2
PLATE,ENG MTG NO.2,R
4193117E00
€ 8.00
17
0910308255
ref: 17
BOLT
€ 2.50
18
0832101083
ref: 18
LOCK WASHER
0832101083
€ 2.50
19
0916008010
ref: 19
WASHER (8.2X20X1.6)
0916008010
€ 1.50
20
4194017E00
ref: 20
PLATE,ENGINE MOUNTING NO.3
4194017E00
€ 14.50
21
4195017E00
ref: 21
PLATE,ENG MTG NO.3,L
4195017E00
€ 16.00
22
0910608005
ref: 22
BOLT(8X22)
0910608005
€ 2.00
23
0832101083
ref: 23
LOCK WASHER
0832101083
€ 2.50
24
0916008010
ref: 24
WASHER (8.2X20X1.6)
0916008010
€ 1.50
25-1
4196117E60
ref: 25-1
PLATE,ENGINE MOUNTING,UPPER
€ 153.00
25-2
4197117E60
ref: 25-2
PLATE,ENGINE MOUNT UPR
€ 154.50
26
0910608112
ref: 26
BOLT
0910608112
€ 5.00
27-1
4398017E03
ref: 27-1
MODEL R
GRIP,REAR
€ 135.50
27-2
4398017E04
ref: 27-2
MODEL S
GRIP,REAR
4398017E04
€ 135.50
27-3
4398017E13
ref: 27-3
MODEL R E39
GRIP COMP,REAR
€ 145.00
27-4
4398017E14
ref: 27-4
MODEL S E39
GRIP,REAR
€ 145.00
28
0155008203
ref: 28
BOLT
0155008203
€ 3.00
29
4743117E00
ref: 29
HOLDER,TOOL
€ 26.50
28
4155049200
ref: 28
HOLDER,TOOL
€ 10.00
29
3692002200
ref: 29
COVER,HARNESS
3692002200
€ 3.00
30
0946200008
ref: 30
BAND
0946200008
€ 4.50
31
0916006086
ref: 31
WASHER (6.5X20X1)
€ 2.00
32
0831921066
ref: 32
NUT
0831921066
€ 2.00
