AIR CLEANER
GT200E 1979 (N) GENERAL EXPORT (E01)

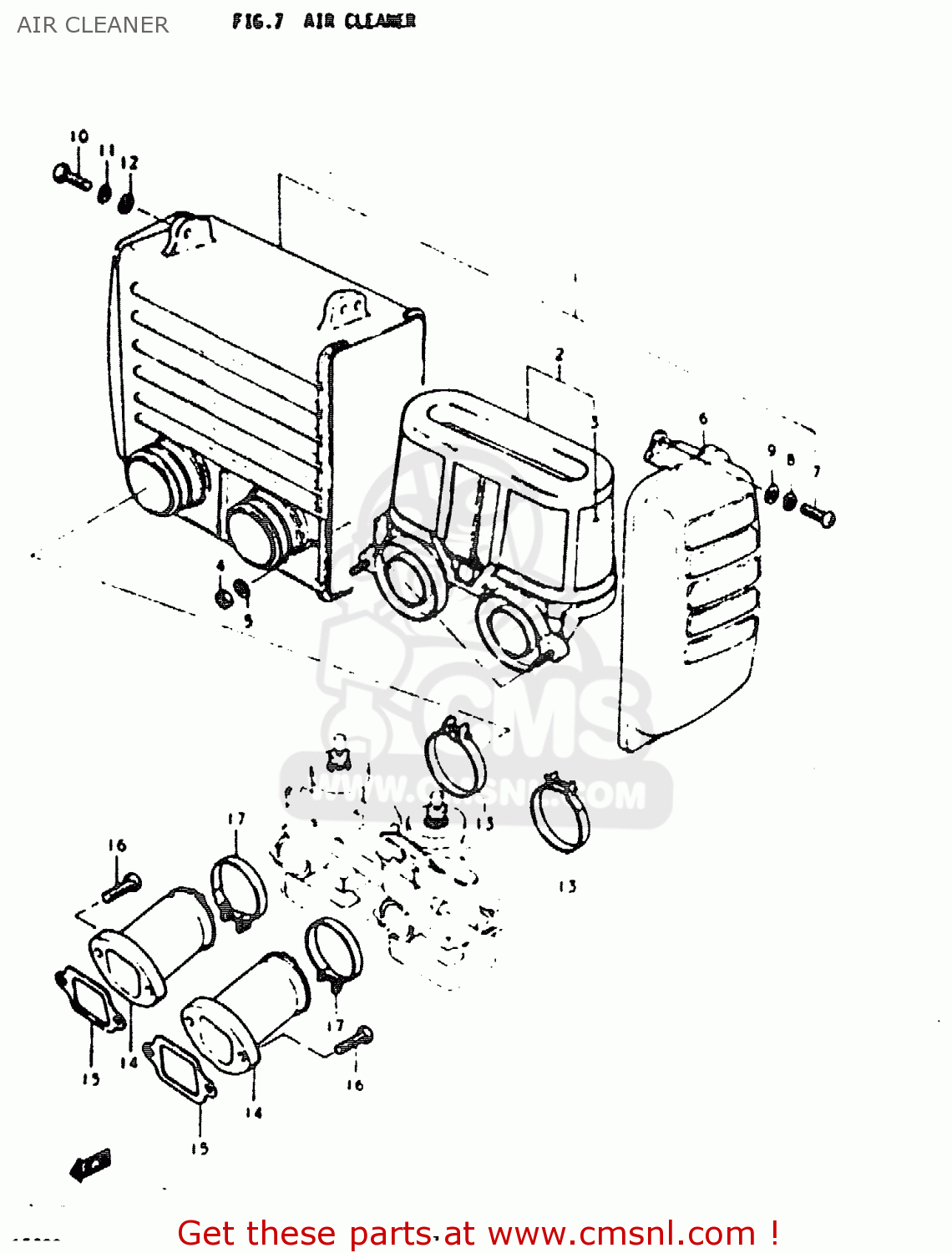

Air cleaner diagram GT200E 1979 (N) GENERAL EXPORT (E01)
AIR CLEANER GT200E 1979 (N) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
1370010210
ref: 1
CLEANER ASSY, AIR
€ 0.00
2
1378010200
ref: 2
FILTER ASSY
€ 35.00
3
1378110200
ref: 3
FILTER
€ 15.00
4
0831011058
ref: 4
NUT
€ 2.50
5
0832221058
ref: 5
WASHER
€ 2.50
6
1374010210
ref: 6
CAP
€ 0.00
7
0211205168
ref: 7
SCREW
€ 2.50
8
0832121058
ref: 8
LOCK WASHER
€ 2.00
9
0832221058
ref: 9
WASHER
€ 2.50
10
0211206168
ref: 10
SCREW
€ 2.50
11
0832121068
ref: 11
LOCK WASHER
€ 2.50
12
0832221068
ref: 12
WASHER
€ 2.00
13
0940242306
ref: 13
CLAMP
€ 4.50
14
1311010300
ref: 14
PIPE, INTAKE
€ 55.00
15
1312110200
ref: 15
GASKET,INTAKE PIPE (NAS)
€ 2.50
16
0211206208
ref: 16
SCREW
€ 2.00
17
0940238306
ref: 17
CLAMP
€ 3.00
