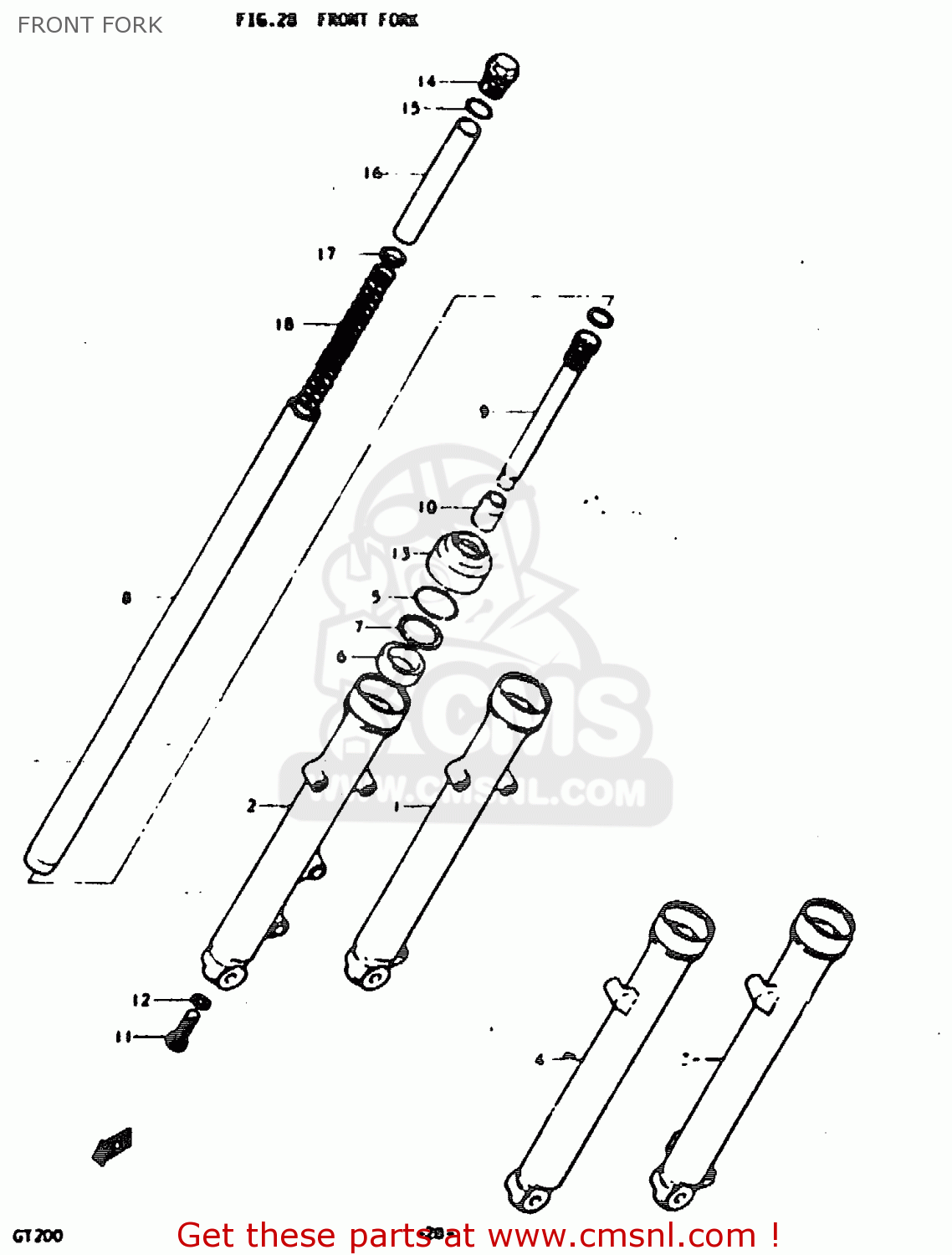

FRONT FORK

ref

part #

description

quantity

0

5110310310
ref: 0

DAMPER ASSY, RH

€ 0.00

0

5110410310
ref: 0

DAMPER ASSY, LH

€ 0.00

1

5113010310
ref: 1

OUTER TUBE, RH

€ 0.00

3

5114010310
ref: 3

OUTER TUBE, LH

€ 0.00

5

5115636010
ref: 5

RING,SNAP

€ 5.50

6

5115329400
ref: 6

OIL SEAL,FRONT FORK

€ 11.00

7

5115836010
ref: 7

WASHER,FRONT FORK

€ 4.00

8

5111010300
ref: 8

INNER TUBE

€ 209.00

9

5114610300
ref: 9

CYLINDER

€ 0.00

10

5119536220
ref: 10

PIECE,OIL LOCK

€ 11.50

11

5114716510
ref: 11

BOLT,FORK CYLINDER(10X25)

€ 3.50

12

5114841310
ref: 12

GASKET (NAS)

€ 2.50

13

5117329310
ref: 13

SEAL,DUST

€ 10.00

14

5135125011
ref: 14

BOLT,FR FORK

€ 16.50

15

5118125010
ref: 15

O-RING,FORK INNER TUBE

€ 2.50

16

5117636211
ref: 16

SPACER

€ 5.50

17

5117218630
ref: 17

GUIDE,SPRING COVER

€ 5.50

18

5117110300
ref: 18

SPRING

€ 0.00

all assemblies
