MUFFLER
GT200E 1979 (N) GENERAL EXPORT (E01)

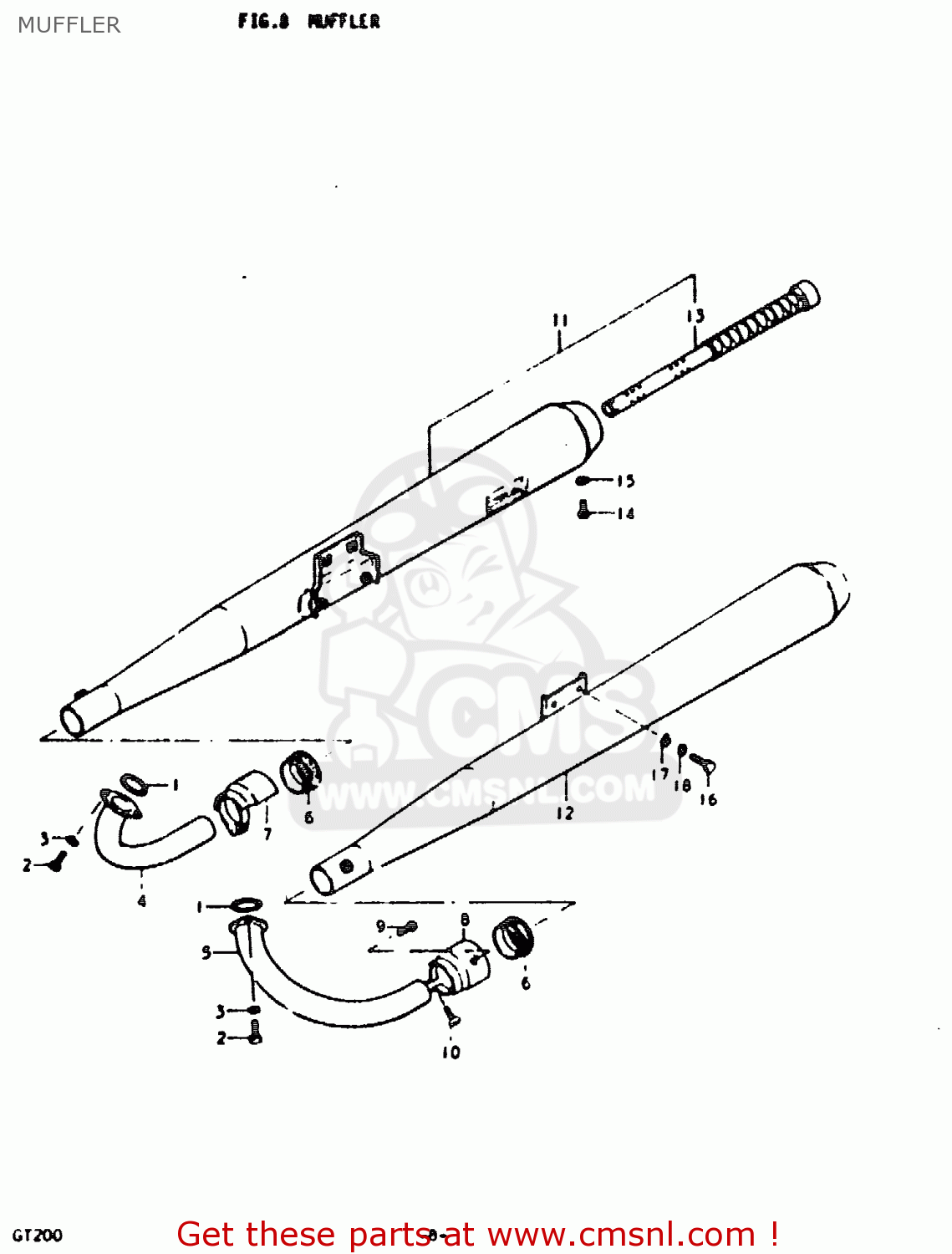

Muffler diagram GT200E 1979 (N) GENERAL EXPORT (E01)
MUFFLER GT200E 1979 (N) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
1418111010
ref: 1
GASKET,EXHAUST PIPE (NAS)
€ 8.00
2
0110708208
ref: 2
BOLT
€ 3.00
3
0832121088
ref: 3
LOCK WASHER
€ 2.00
4
1415010300
ref: 4
PIPE, EXHAUST RH
€ 0.00
5
1416010300
ref: 5
PIPE, EXHAUST LH
€ 0.00
6
1477110300
ref: 6
CONNECTOR,MUFFLER
€ 15.50
7
1478010300
ref: 7
COVER, RH
€ 15.50
8
1479010300
ref: 8
COVER, LH
€ 16.00
9
0211205068
ref: 9
SCREW
€ 4.00
10
0211205168
ref: 10
SCREW
€ 2.50
11
1430110310
ref: 11
MUFFLER ASSY, RH
€ 385.00
12
1430210310
ref: 12
MUFFLER ASSY, LH
€ 385.00
13
1451039002
ref: 13
PIPE,BAFFLE
€ 42.00
14
0912805004
ref: 14
BOLT(5X8)
€ 2.00
15
0832121058
ref: 15
LOCK WASHER
€ 2.00
16
0110708208
ref: 16
BOLT
€ 3.00
17
0832211088
ref: 17
WASHER
€ 2.00
18
0832121088
ref: 18
LOCK WASHER
€ 2.00
