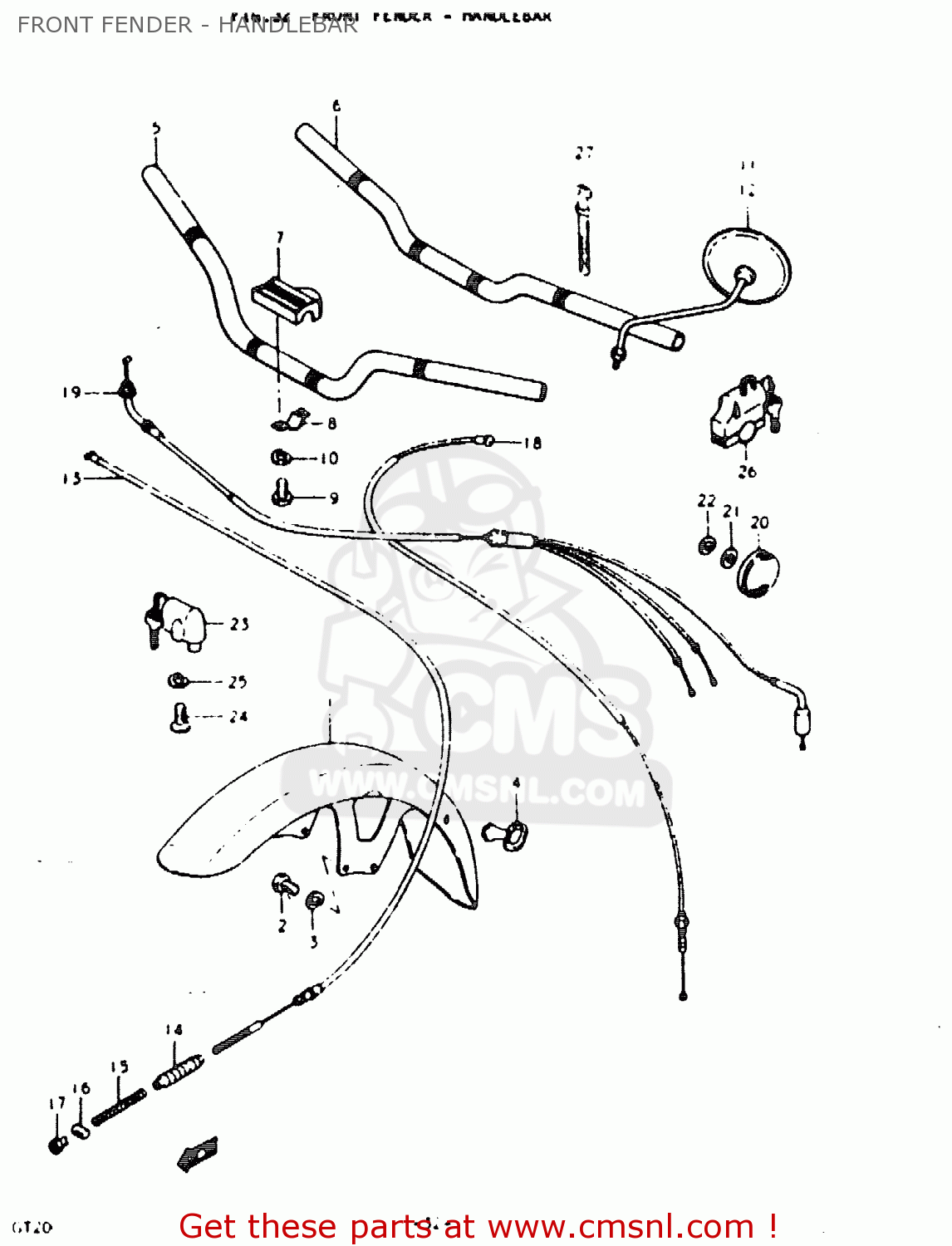

FRONT FENDER - HANDLEBAR - GT200E 1979 (N) GENERAL EXPORT (E01)

ref

part #

description

quantity

1

5311010300
ref: 1

FENDER, FRONT

€ 125.00

2

0110708168
ref: 2

BOLT

€ 2.00

3

0832121088
ref: 3

LOCK WASHER

€ 2.00

4

5862121203A
ref: 4

GUIDE,CABLE

€ 7.50

5

5611110300
ref: 5
NEUTRAL HANDLE

HANDLEBAR

€ 55.50

6

5611110310
ref: 6
FLAT HANDLE *OPT

HANDLEBAR

€ 51.00

7

5617010200
ref: 7

COVER, STEERING HEAD

€ 16.00

8

5617510200
ref: 8

BRACKET

€ 3.00

9

0211204088
ref: 9

SCREW

€ 1.50

10

0832121048
ref: 10

LOCK WASHER

€ 2.00

11

5650045012
ref: 11

MIRROR ASSEMBLY,RIGHT

€ 72.50

12

5660045012
ref: 12

MIRROR ASSEMBLY,LEFT

€ 73.00

13-1

5810010300A
ref: 13-1

CABLE, FRONT BRAKE

€ 0.00

13-2

5810010310
ref: 13-2
OPT FLAT HANDLE

CABLE, FRONT BRAKE

€ 17.00

14

0928708001
ref: 14

SEAL,DUST(8X17X72)

€ 4.50

15

0944007007
ref: 15

SPRING

€ 3.00

16

0920913003
ref: 16

PIN

€ 3.50

17

0915006001
ref: 17

NUT

€ 3.50

18-1

5820010300
ref: 18-1
NEUTRAL HANDLE

CABLE ASSY,CLUTCH

€ 22.50

18-2

5820010310
ref: 18-2
FLAT HANDLE *OPT

CABLE, CLUTCH

€ 18.00

19-1

5830010300
ref: 19-1
NEUTRAL HANDLE

CABLE, THROTTLE

€ 46.50

19-2

5830010310
ref: 19-2
FLAT HANDLE *OPT

CABLE, THROTTLE

€ 37.00

20

3595045010
ref: 20

REFLEX REFLECTOR,FR

€ 17.00

21

0832221058
ref: 21

WASHER

€ 2.50

22

0832121058
ref: 22

LOCK WASHER

€ 2.00

23

5191025310
ref: 23

LOCK ASSEMBLY,STEERING

€ 22.50

24

0211205128
ref: 24

SCREW

€ 2.50

25

0832121058
ref: 25

LOCK WASHER

€ 2.00

26

9000131817
ref: 26

LOCK ASSY, HELMET

€ 57.50

27

0940712402
ref: 27
L:120

CLAMP(L:120)

€ 3.00

FRONT FENDER - HANDLEBAR

all assemblies
