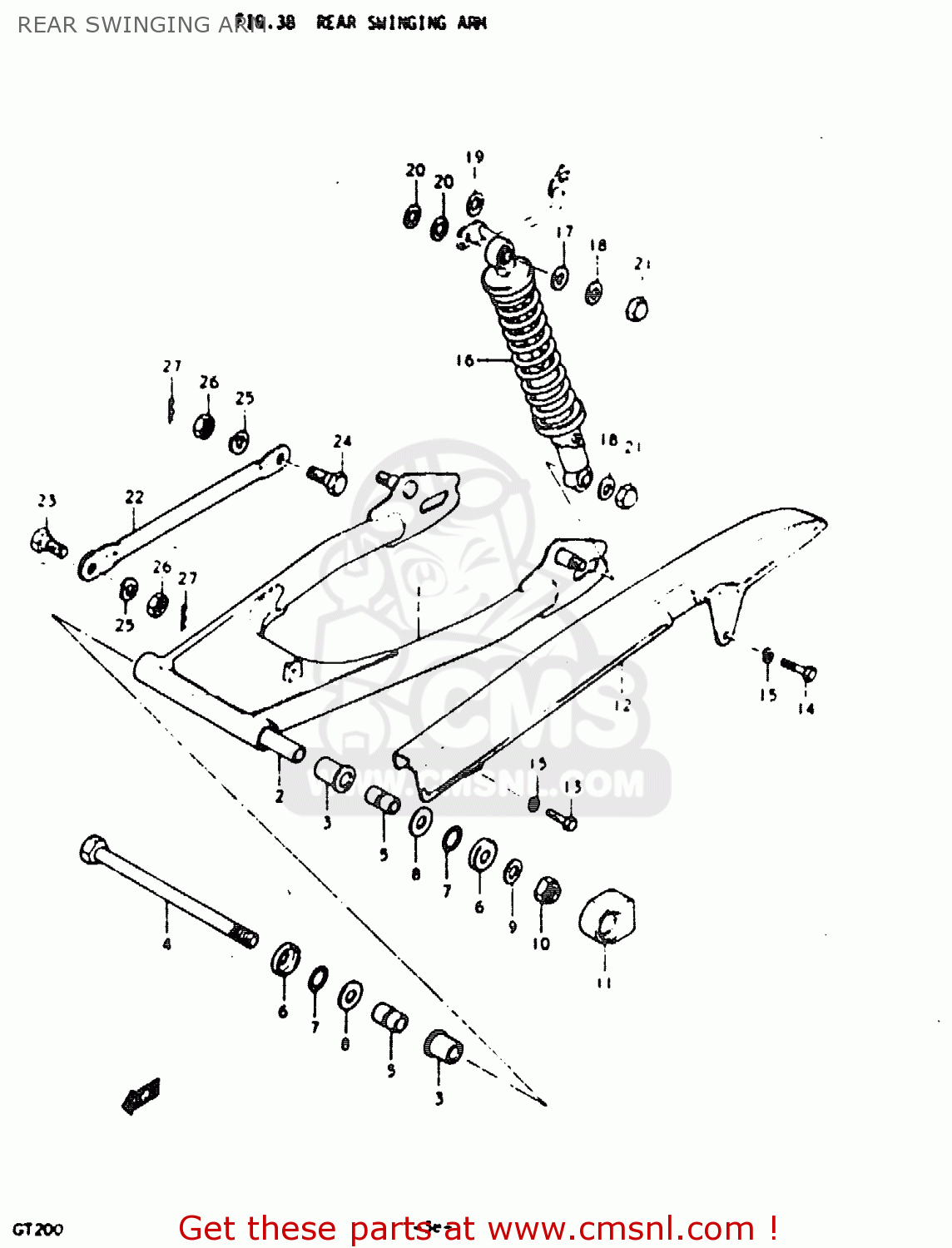

REAR SWINGING ARM

ref

part #

description

quantity

1

6110010830019
ref: 1

REAR SWINGING ARM SET

€ 0.00

2

6128028000
ref: 2

SPACER,SWING ARM,CENTER

€ 12.00

3

0930718002
ref: 3

BUSH

€ 10.50

4

6121110200
ref: 4

SHAFT, PIVOT

€ 0.00

5

6125128000
ref: 5

SPACER,RR SWGARM PIVOT

€ 8.50

6

6126209200
ref: 6

COVER,SWGARM BUSH DUST SEAL

€ 2.50

7

0928024001
ref: 7

O RING(D:2,ID:24.5)

€ 2.00

8

0916012005
ref: 8
12.5*24*2.3

WASHER(12.5X24X2.3)

€ 3.00

9

0832211128
ref: 9

WASHER

€ 2.00

10

0831921128
ref: 10

NUT 12MM

€ 4.00

11

6127336000
ref: 11

BUFFER,CHAIN TOUCH DEFLECTOR

€ 6.50

12

6131036203
ref: 12

CHAIN CASE

€ 149.00

13

0110706108
ref: 13

BOLT

€ 2.00

14

0110706128
ref: 14

BOLT

€ 2.00

15

0832121068
ref: 15

LOCK WASHER

€ 2.50

16

6210010300
ref: 16

SHOCK ABSORBER ASSY, REAR

€ 0.00

17

0916010033
ref: 17
10.5*24*3.2

WASHER(10.5X24X3.2)

€ 2.00

18

0916010001
ref: 18
10.5*24*2.3

WASHER

€ 2.00

19

0916012012
ref: 19
12.5*24*3.2

WASHER (12.5X24X3.2)

€ 2.50

20

0832211128
ref: 20

WASHER

€ 2.00

21

0831311108
ref: 21

NUT, LOWER LH

€ 2.50

22

6431039000
ref: 22

TORQUE LINK, REAR

€ 13.50

23

0911108012
ref: 23

BOLT(8X22.5)

€ 3.00

24

0911108C
ref: 24

BOLT

€ 0.00

25

0832121088
ref: 25

LOCK WASHER

€ 2.00

26

0914008008
ref: 26

NUT

€ 1.50

27

0938510001
ref: 27

CLIP

€ 1.50

all assemblies
