FOOTREST

GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)

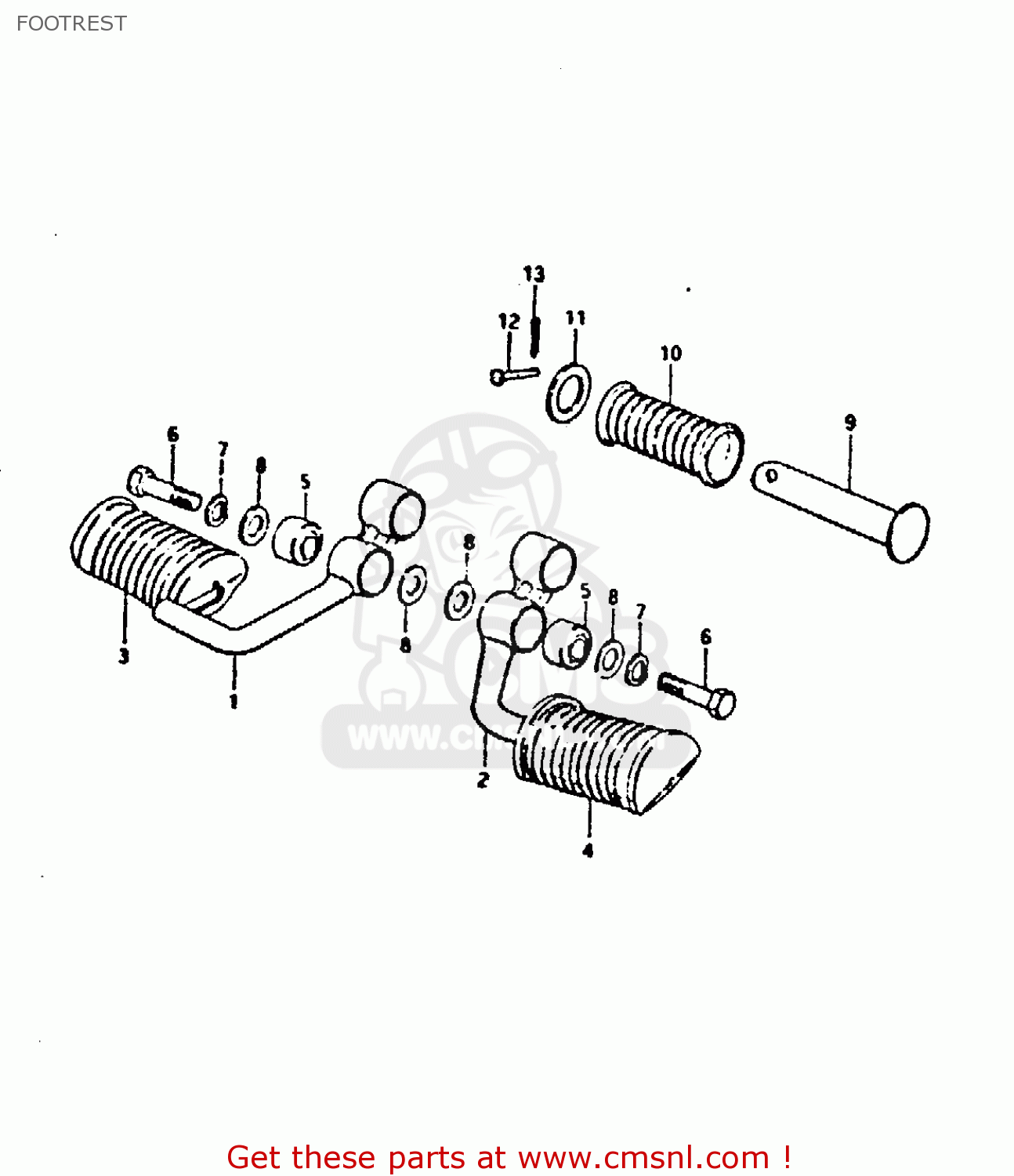

Footrest diagram GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)

FOOTREST GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)

FOOTREST GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)

prices are in EUR

ref

part #

description

quantity

1

4351111300
ref: 1

BAR, FRONT FOOTREST RH

€ 31.00

2

4352111300
ref: 2

BAR, FRONT FOOTREST LH

€ 21.00

3

4355111300
ref: 3

RUBBER,FR.FOOT

€ 17.50

4

4355139100
ref: 4

RUBBER,FR FOOTREST

€ 7.50

5

0931910008
ref: 5

BUSH

€ 8.00

6

0110710408
ref: 6

BOLT 10X40

€ 3.00

7

0832121108
ref: 7

LOCK WASHER

€ 2.00

8

0916010013
ref: 8

WASHER (10.1X21X2.3)

€ 2.00

9

4361003001
ref: 9

BAR,FOOTREST RUBBER

€ 5.50

10

4361203001
ref: 10

RUBBER,PILLION FOOTREST

€ 3.50

11

0916019006
ref: 11

WASHER (19.5X32X2)

€ 2.00

12

0920006010
ref: 12

PIN

€ 2.50

13

0411120208
ref: 13

PIN 20X20

€ 1.50
