STAND

GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)

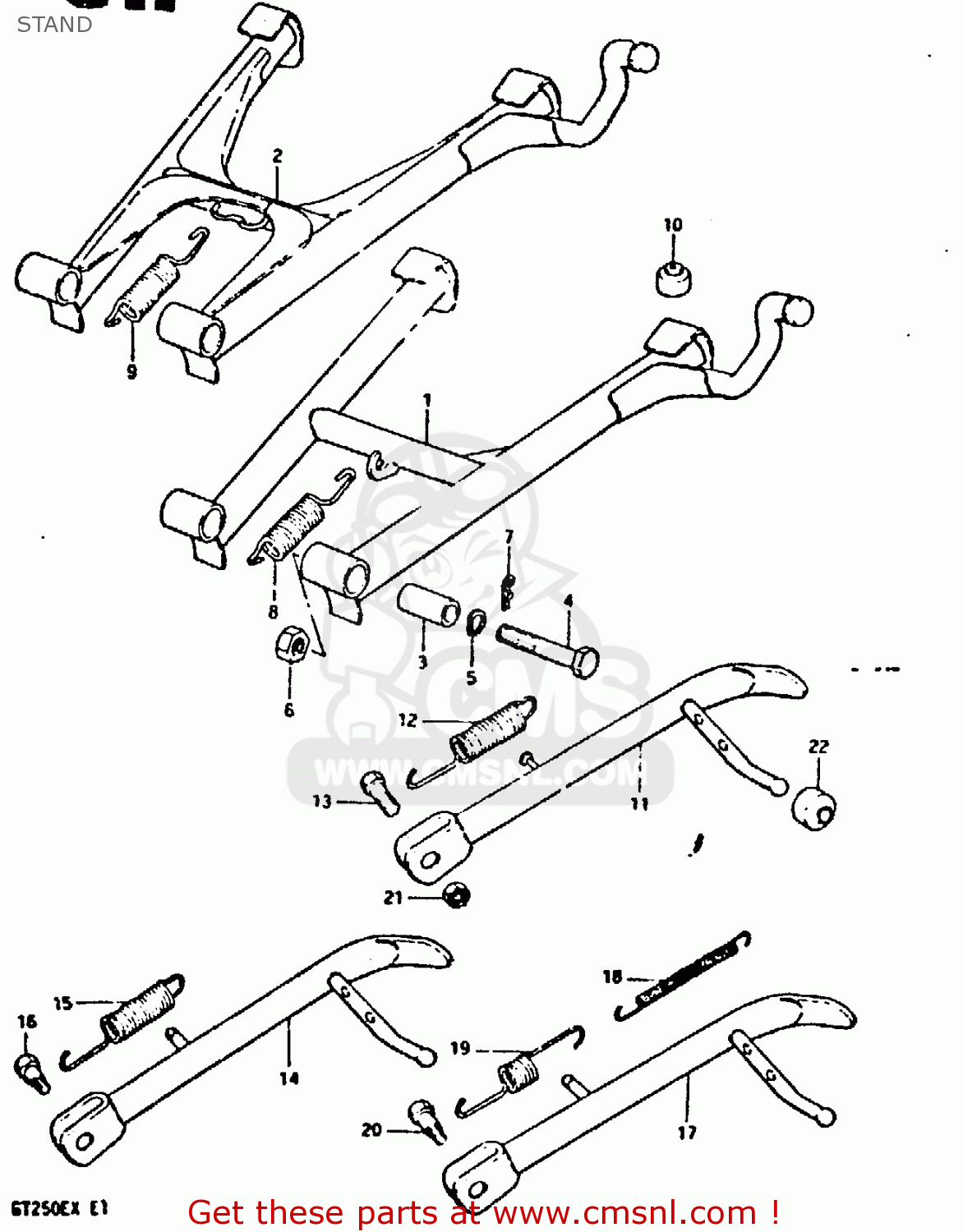

Stand diagram GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)

STAND GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)
STAND GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)
STAND GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)
prices are in EUR
ref
part #
description
quantity
1
4210011300
ref: 1
STAND, CENTER
€ 0.00
2
NOTUSED
ref: 2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
0918010040
ref: 3
SPACER(10X16X38.8)
0918010040
€ 3.00
4-1
0910110018
ref: 4-1
BOLT
0910110018
€ 5.50
4-2
NOTUSED
ref: 4-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
5
0832121108
ref: 5
LOCK WASHER
0832121108
€ 2.00
6
0831012108
ref: 6
NUT
0831012108
€ 2.50
7
0938510001
ref: 7
CLIP
0938510001
€ 1.50
8
0944318004
ref: 8
SPRING
€ 6.00
9
NOTUSED
ref: 9
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
10
0932110001
ref: 10
CUSHION
0932110001
€ 2.50
11
4231011300
ref: 11
STAND, PROP
€ 19.50
12
0944317005
ref: 12
SPRING
0944317005
€ 11.50
13
0910010067
ref: 13
BOLT(10X30)
0910010067
€ 3.50
14
NOTUSED
ref: 14
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
15
NOTUSED
ref: 15
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
16
NOTUSED
ref: 16
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
17
NOTUSED
ref: 17
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
18
NOTUSED
ref: 18
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
19
NOTUSED
ref: 19
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
20
NOTUSED
ref: 20
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
21
0831022108
ref: 21
NUT
0831022108
€ 2.50
22
0932007001
ref: 22
CUSHION
0932007001
€ 4.00
