FRONT FORK

GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)

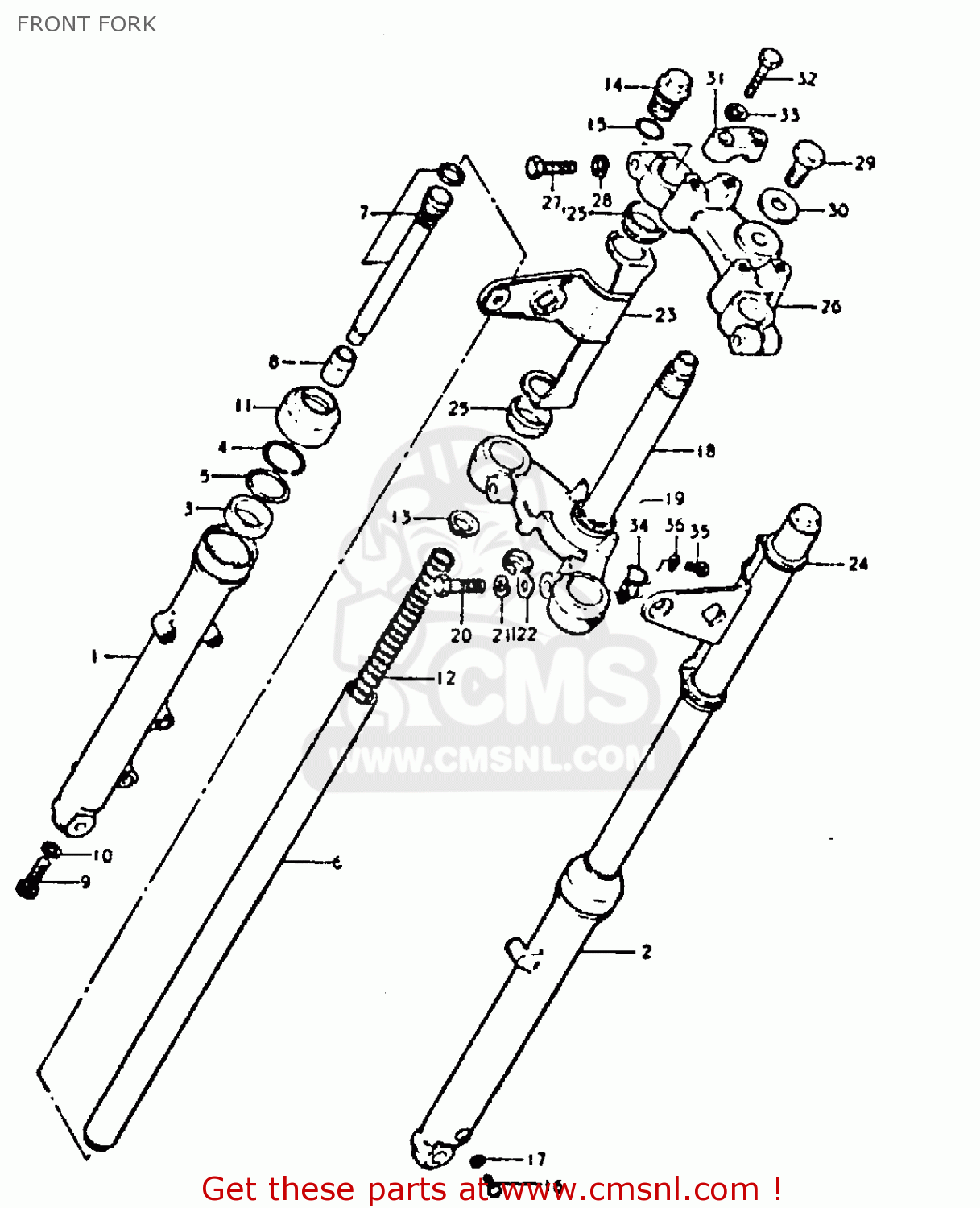

Front fork diagram GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)

FRONT FORK GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)
FRONT FORK GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)
FRONT FORK GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)
prices are in EUR
ref
part #
description
quantity
0
5110011302291
ref: 0
FRONT FORK ASSY
€ 1,003.50
0
NOTUSED
ref: 0
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
0
NOTUSED
ref: 0
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1
5113011300
ref: 1
OUTER TUBE, RH
€ 171.00
2
5114011300
ref: 2
OUTER TUBE, LH
€ 56.00
3
5115311300
ref: 3
OIL SEAL,FRONT FORK
€ 9.00
4
5115641603
ref: 4
RING,SNAP
5115641603
€ 7.50
5
5115841603
ref: 5
WASHER
5115841603
€ 5.00
6
5111011301
ref: 6
TUBE,INNER
5111011301
€ 200.50
7
5114611300
ref: 7
CYLINDER
€ 0.00
8
5119536220
ref: 8
PIECE,OIL LOCK
5119536220
€ 11.50
9
5114716510
ref: 9
BOLT,FORK CYLINDER(10X25)
5114716510
€ 3.50
10
5114841310
ref: 10
GASKET (NAS)
5114841310
€ 2.50
11
5117341603
ref: 11
SEAL,DUST
5117341603
€ 6.00
12
5117111300
ref: 12
SPRING
€ 30.50
13
5117218630
ref: 13
GUIDE,SPRING COVER
5117218630
€ 5.50
14
5135141603
ref: 14
CAP
5135141603
€ 11.00
15
5118125010
ref: 15
O-RING,FORK INNER TUBE
5118125010
€ 2.50
16
0211204088
ref: 16
SCREW
€ 1.50
17
5118303010
ref: 17
GASKET,DRAIN,PLUG (NAS)
5118303010
€ 3.00
18-1
5141011300
ref: 18-1
STEM,STEERING
€ 157.50
18-2
NOTUSED
ref: 18-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
18-3
NOTUSED
ref: 18-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
19
5162133001
ref: 19
RACE,STEERING OUTER LWR
5162133001
€ 10.00
20
5115128012
ref: 20
BOLT
€ 0.00
21
0832121128
ref: 21
WASHER,LOCK 12
0832121128
€ 2.50
22
5145536010
ref: 22
CLIP
5145536010
€ 6.50
23
5153011300291
ref: 23
BRACKET, HEADLAMP RH
€ 87.50
24
5154011300291
ref: 24
BRACKET, HEADLAMP LH
€ 2.00
25
5155311300
ref: 25
CUSHION,HEADLAMP BRACKET
5155311300
€ 3.50
26
5131111300291
ref: 26
HEAD,STEERING STEM(BLACK)
5131111300291
€ 128.00
27
5145115113
ref: 27
BOLT,FORK INNER TUBE F
5145115113
€ 2.50
28
0832121108
ref: 28
LOCK WASHER
0832121108
€ 2.00
29
5135120010
ref: 29
BOLT,FORK INNER TUBE
5135120010
€ 25.00
30
5135622012
ref: 30
WASHER,STEM HEAD(10.5X30X3.2)
5135622012
€ 4.00
31
5621129320291
ref: 31
HOLDER,HANDLE(BLACK)
5621129320291
€ 12.00
32
0120408357
ref: 32
BOLT
0120408357
€ 3.50
33
0832121088
ref: 33
LOCK WASHER
0832121088
€ 2.00
34
5145305110
ref: 34
CLIP,BRAKE CABLE
5145305110
€ 4.50
35
0211206108
ref: 35
SCREW
0211206108
€ 1.50
36
0832121068
ref: 36
LOCK WASHER
0832121068
€ 2.50
