MASTER CYLINDER (MODEL N)

GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)

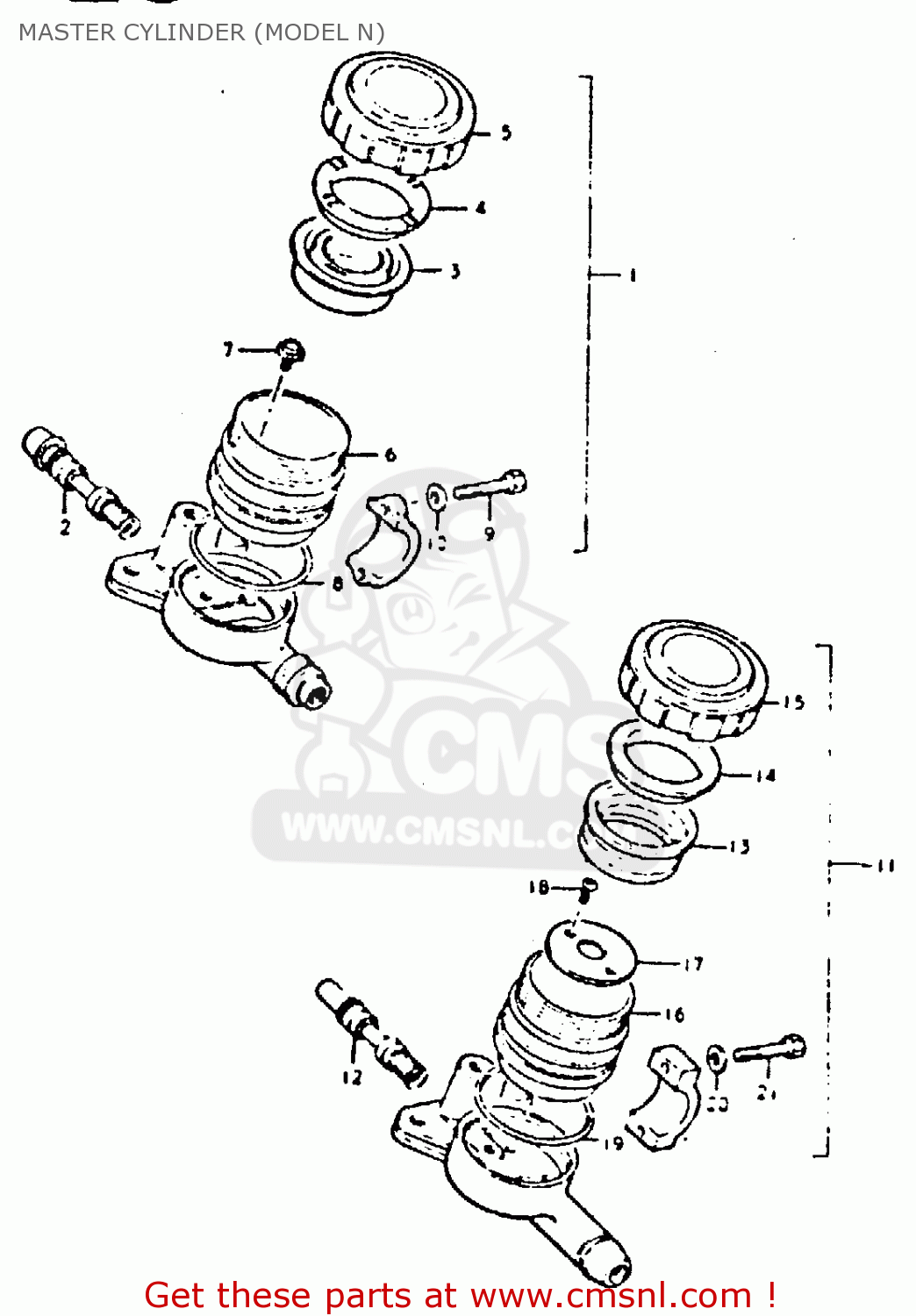

Master cylinder (model n) diagram GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)

MASTER CYLINDER (MODEL N) GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)
MASTER CYLINDER (MODEL N) GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)
MASTER CYLINDER (MODEL N) GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)
prices are in EUR
ref
part #
description
quantity
1
5960033623
ref: 1
AISHIN
CYLINDER ASSY, MASTER
€ 240.00
2
5960033810
ref: 2
PISTON & CUP SET
5960033810
€ 44.50
3
5966733620
ref: 3
DIAPHRAGM
5966733620
€ 25.00
4
5966833620
ref: 4
PLATE
5966833620
€ 6.00
5
5966933621
ref: 5
CAP
5966933621
€ 35.00
6
5968747021
ref: 6
RESERVOIR
5968747021
€ 50.00
7
5968833620
ref: 7
SCREW,MASTER CYLINDER
5968833620
€ 1.50
8
5968633620
ref: 8
O RING
5968633620
€ 6.00
9
0110706258
ref: 9
BOLT
€ 2.00
10
0832221068
ref: 10
WASHER
0832221068
€ 2.00
11
5960033606
ref: 11
NISSIN
CYLINDER ASSY,
€ 231.00
12
5960045821
ref: 12
FROM 59600-18824
PISTON & CUP SET
5960045821
€ 44.50
13
5966718440
ref: 13
DIAPHRAGM,MASTER CYLINDER
5966718440
€ 8.50
14
5966818441
ref: 14
PLATE,DIAPHRAGM
5966818441
€ 3.50
15
5966933621
ref: 15
CAP
5966933621
€ 35.00
16
5968745000
ref: 16
RESERVOIR
5968745000
€ 28.50
17
5968533601
ref: 17
PLATE
5968533601
€ 54.00
18
0912503105
ref: 18
SCREW
0912503105
€ 2.50
19
5968633600
ref: 19
O RING
5968633600
€ 14.00
20
0832221068
ref: 20
WASHER
0832221068
€ 2.00
21
0110706258
ref: 21
BOLT
€ 2.00
