Buy Suzuki GT Parts Online


FUEL TANK (MODEL N : ~F.NO. 107281)

GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)

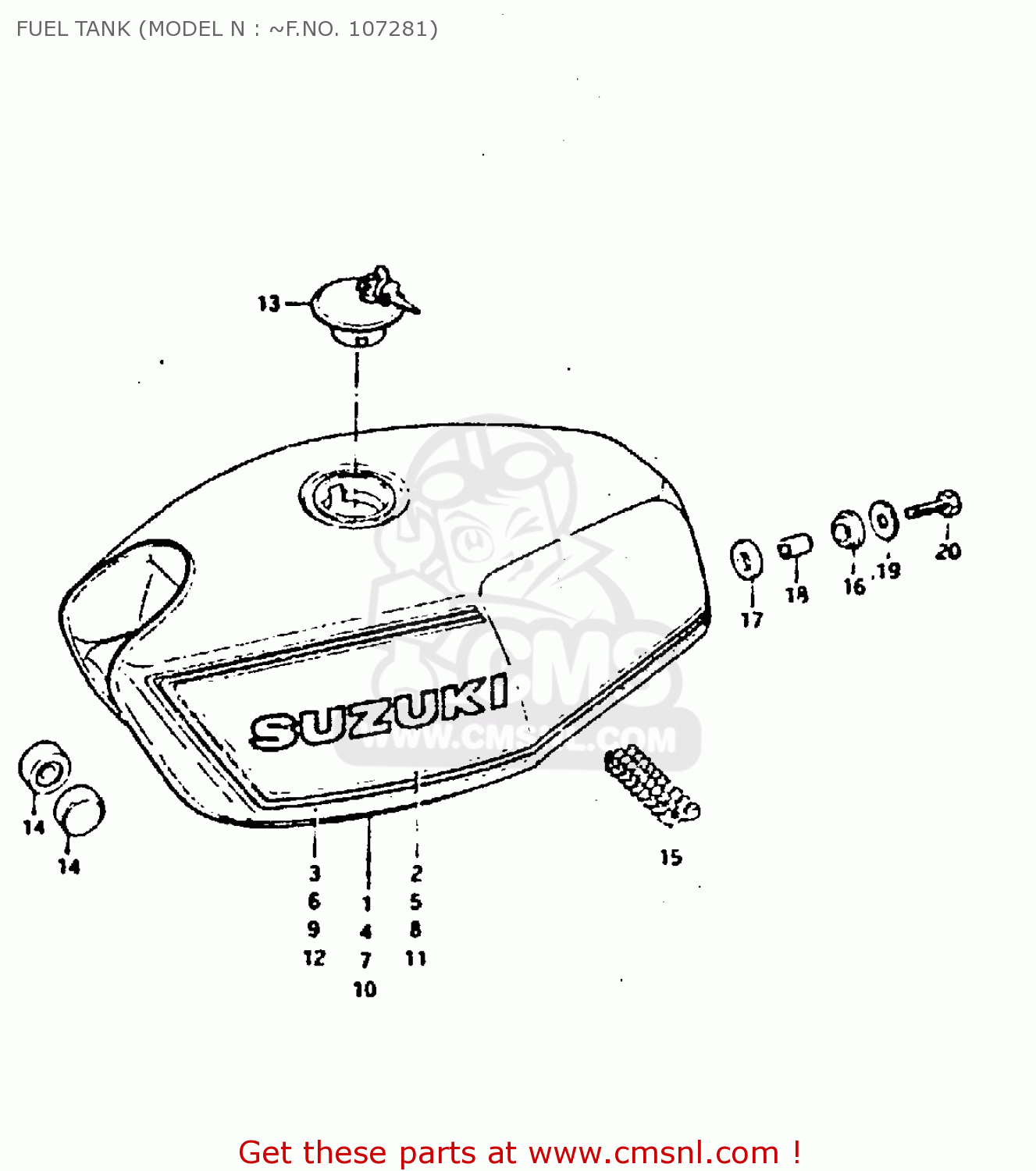

Fuel tank (model n : ~f.no. 107281) diagram GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)

FUEL TANK (MODEL N : ~F.NO. 107281) GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)
FUEL TANK (MODEL N : ~F.NO. 107281) GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)
FUEL TANK (MODEL N : ~F.NO. 107281) GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)
prices are in EUR
ref
part #
description
quantity
1
4410011300189
ref: 1
TANK, FUEL (WHITE)
€ 356.00
2
681111130065H
ref: 2
EMBLEM
€ 0.00
3
6810011850019
ref: 3
TAPE SET (BLACK)
€ 0.00
4-1
441001130005J
ref: 4-1
TO 44100-11830-05J
TANK, FUEL (RED)
€ 356.00
4-2
441001183005J
ref: 4-2
TANK, FUEL (RED)
€ 356.00
5-1
681111130060A
ref: 5-1
TO 68111-11300-70N
EMBLEM
€ 9.00
5-2
681111130070N
ref: 5-2
EMBLEM
€ 9.00
6
6810011850019
ref: 6
TAPE SET (BLACK)
€ 0.00
7-1
441001130005K
ref: 7-1
TO 44100-11840-05K
TANK, FUEL (BLUE)
€ 356.00
7-2
441001184005K
ref: 7-2
TANK, FUEL (BLUE)
€ 356.00
8-1
681111130060A
ref: 8-1
TO 68111-11300-70N
EMBLEM
€ 9.00
8-2
681111130070N
ref: 8-2
EMBLEM
€ 9.00
9
6810011850189
ref: 9
TAPE SET (WHITE)
€ 0.00
10
NOTUSED
ref: 10
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
11
NOTUSED
ref: 11
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
12
NOTUSED
ref: 12
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
13
4420030702
ref: 13
CAP SET,FUEL TANK
4420030702
€ 112.00
14
0932910007
ref: 14
CUSHION
0932910007
€ 3.00
15
4454147000
ref: 15
CUSHION
4454147000
€ 8.50
16
0932012010
ref: 16
CUSHION
0932012010
€ 3.00
17
0932012023
ref: 17
CUSHION
0932012023
€ 2.50
18
0918008067
ref: 18
SPACER(8.5X12X19)
0918008067
€ 2.50
19
0916008002
ref: 19
WASHER (8.5X29X1.6)
0916008002
€ 2.00
20
0110708308
ref: 20
BOLT (8X30)
0110708308
€ 2.50
