SEAT (MODEL N : F.NO. 107282~)

GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)

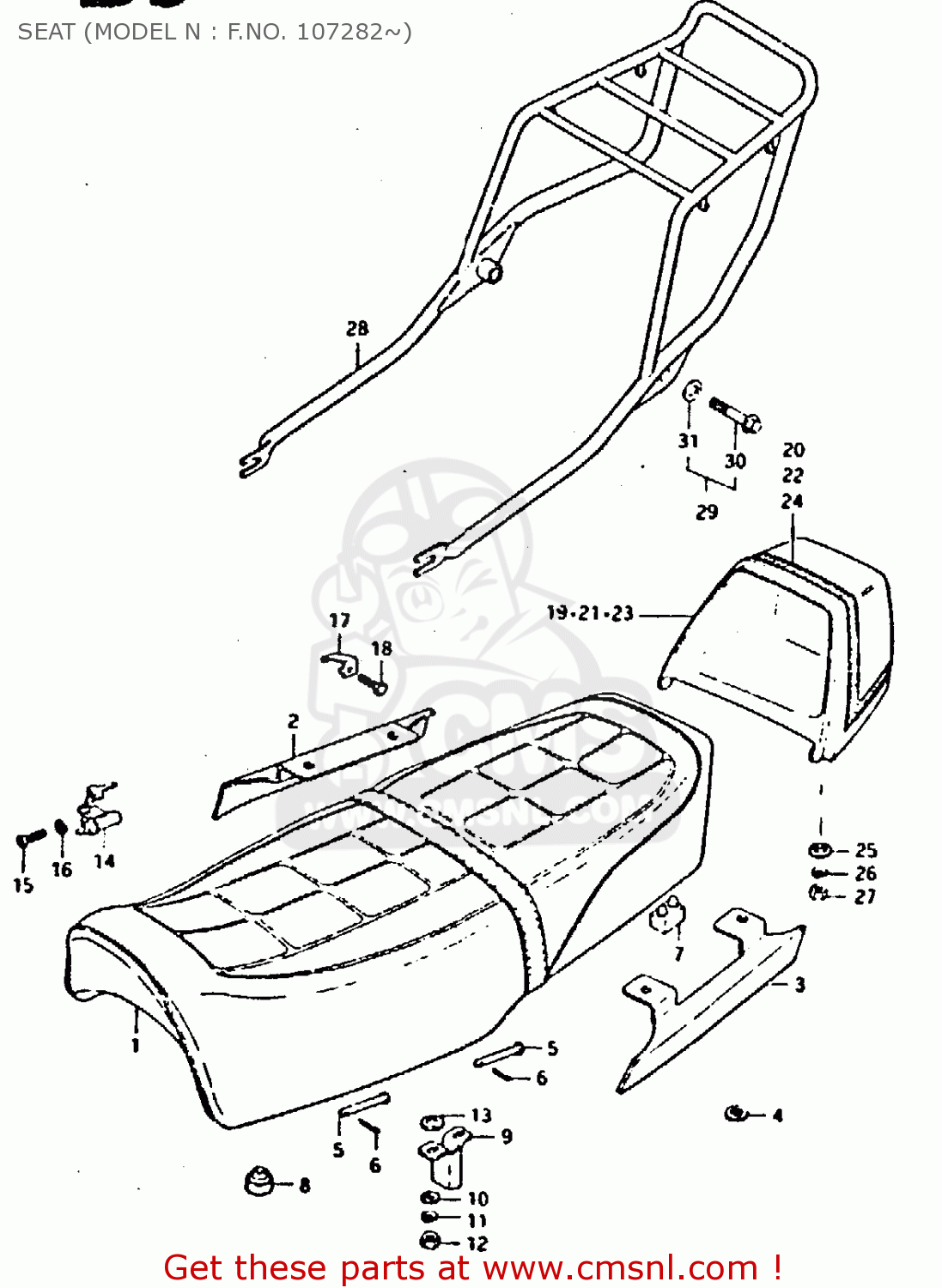

Seat (model n : f.no. 107282~) diagram GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)

SEAT (MODEL N : F.NO. 107282~) GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)
SEAT (MODEL N : F.NO. 107282~) GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)
SEAT (MODEL N : F.NO. 107282~) GT250E 1979 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E30 E39)
prices are in EUR
ref
part #
description
quantity
1
4510011301865
ref: 1
SEAT (BLACK)
€ 255.00
2-1
4519111300189
ref: 2-1
MOULDING, RH (WHITE)
€ 16.00
2-2
451911130005K
ref: 2-2
MOULDING, RH (BLUE)
€ 16.00
2-3
451911130005J
ref: 2-3
MOULDING, RH (RED)
€ 16.00
3-1
4519211300189
ref: 3-1
MOULDING, LH (WHITE)
€ 16.00
3-2
451921130005K
ref: 3-2
MOULDING, LH (BLUE)
€ 16.00
3-3
451921130005J
ref: 3-3
MOULDING, LH (RED)
€ 16.00
4
0914806005
ref: 4
NUT
0914806005
€ 1.50
5
0920006018
ref: 5
PIN
0920006018
€ 2.00
6
0411120158
ref: 6
PIN
0411120158
€ 1.50
7
0932108006
ref: 7
CUSHION
0932108006
€ 3.00
8
0932110001
ref: 8
CUSHION
0932110001
€ 2.50
9
4521345000
ref: 9
STRIKER,SEAT LOCK
4521345000
€ 7.50
10
0832221068
ref: 10
WASHER
0832221068
€ 2.00
11
0832121068
ref: 11
LOCK WASHER
0832121068
€ 2.50
12
0831921068
ref: 12
NUT 6MM
0831921068
€ 2.00
13
0916006028
ref: 13
WASHER(6.5X18X1)
0916006028
€ 1.50
14
9570045813
ref: 14
LOCK ASSY,SEAT
9570045813
€ 59.50
15
0211205128
ref: 15
SCREW
€ 2.50
16
0832121058
ref: 16
LOCK WASHER
0832121058
€ 2.00
17
9572245000
ref: 17
SPRING,HELMET HOLDER
9572245000
€ 8.50
18
0110405088
ref: 18
BOLT 5X16
€ 2.00
19
4551011300189
ref: 19
COVER, SEAT TAIL (WHITE)
€ 65.00
20
681671131070J
ref: 20
TAPE
€ 0.00
21
455101130005J
ref: 21
COVER, SEAT TAIL (RED)
€ 65.00
22
681671131069R
ref: 22
TAPE
€ 0.00
23
455101130005K
ref: 23
COVER, SEAT TAIL (BLUE)
€ 65.00
24
681671131070K
ref: 24
TAPE (BLUE & WHITE)
€ 0.00
25
0916906016
ref: 25
WASHER
0916906016
€ 1.50
26
0832121068
ref: 26
LOCK WASHER
0832121068
€ 2.50
27
0831921068
ref: 27
NUT 6MM
0831921068
€ 2.00
28
4631011300
ref: 28
OPT
CARRIER, SPORTS
€ 51.50
29
4630011850
ref: 29
OPT
BOLT SET, CARRIER
€ 0.00
30
0151708858
ref: 30
OPT
BOLT
€ 3.50
31
0916010041
ref: 31
OPT
WASHER(10.3X25X1.5
0916010041
€ 4.00
