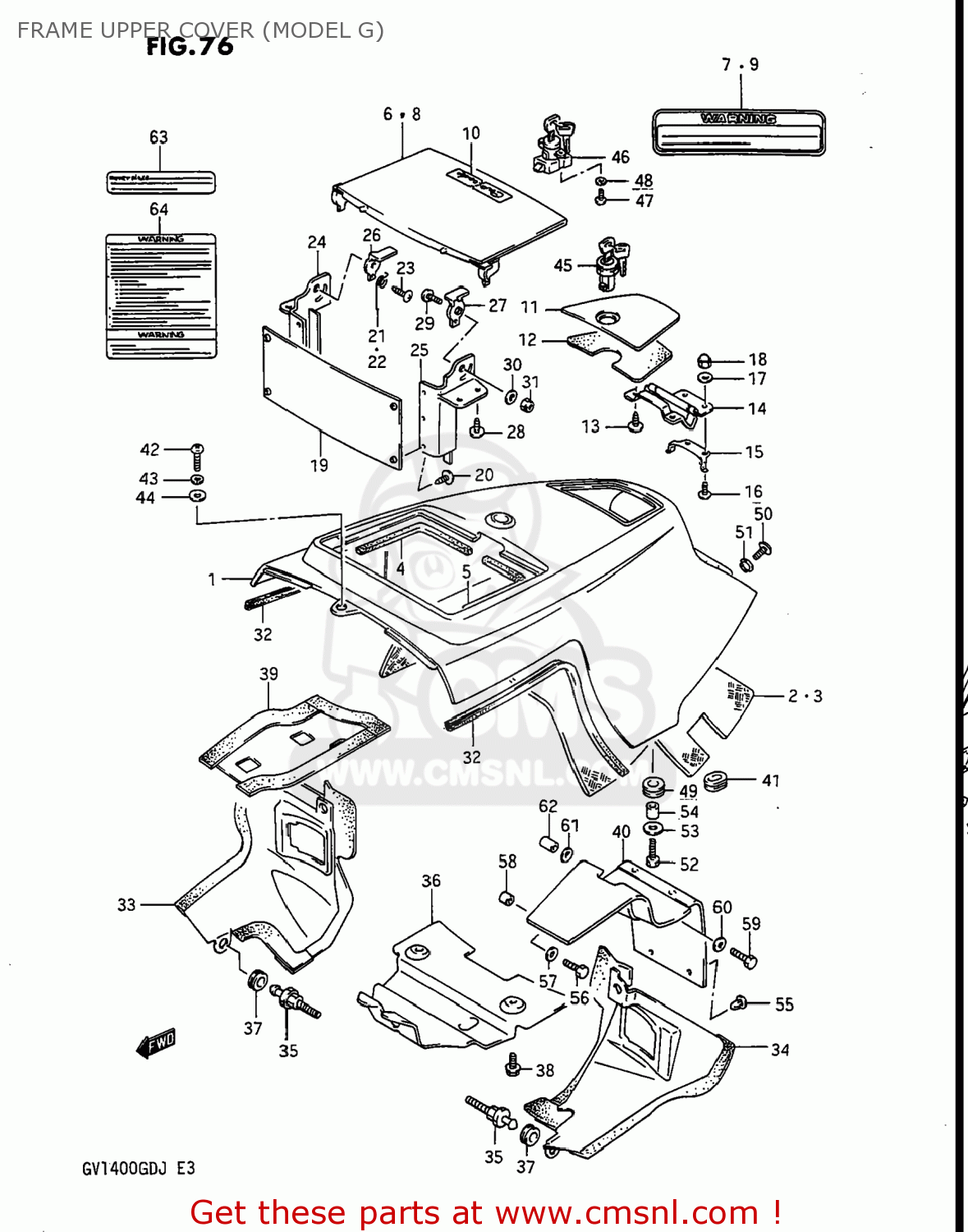

FRAME UPPER COVER (MODEL G)

ref

part #

description

quantity

1-1

4730024A0024G
ref: 1-1

COVER ASSEMBLY,FRAME,UPPER

€ 940.00

1-2

4730024A0024H
ref: 1-2
47300-24A00-20H

COVER ASSEMBLY,FRAME,UPPER

€ 940.00

1-3

4730024A0012S
ref: 1-3

COVER ASSEMBLY,FRAME,UPPER

€ 940.00

1-4

4730024A0024K
ref: 1-4

COVER ASSEMBLY,FRAME,UPPER

€ 0.00

1-5

4730024A0027U
ref: 1-5

COVER ASSEMBLY,FRAME,UPPER

€ 0.00

1-6

4730024A0024V
ref: 1-6
47300-24A00-20H

COVER ASSEMBLY,FRAME,UPPER

€ 940.00

2

4731524A01
ref: 2
47315-24A02

CUSHION,FRAME COVER,UPPER

€ 46.00

3

4731624A01
ref: 3
47316-24A02

CUSHION,FRAME COVER,UPPER

€ 46.00

4

4739124A01
ref: 4

CUSHION,AUDIO LID SIDE

€ 0.00

5

4739224A01
ref: 5

CUSHION,AUDIO LID SIDE

€ 0.00

6-1

473002482024G
ref: 6-1

LID SET,AUDIO

€ 77.50

6-2

473002482024H
ref: 6-2

LID SET,AUDIO

€ 230.50

6-3

473002484027U
ref: 6-3

COVER ASSEMBLY,FRAME,UPPER

€ 230.50

6-4

473002484024V
ref: 6-4

COVER ASSEMBLY,FRAME,UPPER

€ 230.50

7-1

6861724A00
ref: 7-1

LABEL (WARNING AUDIO LI

€ 0.00

7-2

6861824A00
ref: 7-2

LABEL (WARNING COVER CO

€ 0.00

8-1

473002483012S
ref: 8-1

LID SET,AUDIO

€ 83.50

8-2

473002483024K
ref: 8-2

LID SET,AUDIO

€ 91.50

9

6861124A00
ref: 9

LABEL

€ 0.00

10

6828224A007ZW
ref: 10

EMBLEM,AUDIO LID

€ 9.00

11-1

4738024A0024G
ref: 11-1

LID,FUEL

€ 28.00

11-2

4738024A0024H
ref: 11-2

LID,FUEL

€ 28.00

11-3

4738024A0012S
ref: 11-3

LID,FUEL

€ 28.00

11-4

4738024A0024K
ref: 11-4

LID,FUEL

€ 28.00

11-5

4738024A0027U
ref: 11-5

LID,FUEL

€ 28.00

11-6

4738024A0024V
ref: 11-6

LID,FUEL

€ 28.00

12

4738524A00
ref: 12
47385-24A01

CUSHION,FUEL LID (NA)

€ 0.00

13

0354105083
ref: 13
03541-0508A

SCREW 5X8

€ 2.00

14

4738224A01
ref: 14

HINGE,FUEL LID

€ 16.00

15

4738824A00
ref: 15

SPRING,FUEL LID HINGE

€ 6.00

16

0214204105
ref: 16
02142-0410A

SCREW

€ 1.50

17

0832221045
ref: 17
08322-0104A

WASHER

€ 5.00

18

0831311045
ref: 18

NUT

€ 0.00

18

0831311045
ref: 18

NUT

€ 0.00

19

4763524A01
ref: 19

HOLDER,AUDIO LID

€ 15.00

20

0354105125
ref: 20
03541-0512A

SCREW

€ 2.00

21

0944407001
ref: 21

SPRING

€ 0.00

22

0944407002
ref: 22

SPRING

€ 2.50

23

0354104125
ref: 23
03541-0412A

SCREW

€ 1.50

24

4763324A00
ref: 24

RAIL,RIGHT

€ 14.00

25

4763424A00
ref: 25

RAIL,LEFT

€ 13.50

26

4763124A00
ref: 26
47631-24A01

RAIL PIECE,RIGHT

€ 8.50

27

4763224A00
ref: 27
47632-24A01

RAIL PIECE,LEFT

€ 3.00

28

0354105108
ref: 28
03541-0510A

SCREW, RAIL

€ 1.50

29

0211205165
ref: 29
02112-05164

SCREW

€ 2.00

30

0821205161
ref: 30

WASHER

€ 1.50

31

0831921055
ref: 31
08319-2105A

NUT 8MM

€ 1.50

32

4738924A01
ref: 32

MOLDING,COVER FRAME,UPPER

€ 8.00

33-1

4781024A00
ref: 33-1
47810-24A01

COVER,INNER,RIGHT

€ 43.00

33-2

4781024A01
ref: 33-2

COVER,INNER,RIGHT

€ 43.00

34-1

4782024A00
ref: 34-1
47820-24A01

COVER,INNER,LEFT

€ 42.00

34-2

4782024A01
ref: 34-2

COVER,INNER,LEFT

€ 42.00

35

4725038A01
ref: 35

BOSS,FRAME COVER

€ 6.50

36

4785024A00
ref: 36

COVER COMP,INNER

€ 65.50

37

0932008013
ref: 37

CUSHION

€ 4.00

38

0151706128
ref: 38
01550-06127

BOLT

€ 2.50

39

4783024A00
ref: 39

COVER COMP,UPPER,RIGHT

€ 20.00

40

4784024A00
ref: 40

COVER COMP,UPPER,LEFT

€ 29.50

41

0930805019
ref: 41

GROMMET

€ 8.00

42

0211206203
ref: 42
02112-0620A

SCREW, 6X20

€ 2.00

43

0832121063
ref: 43
08321-0106A

LOCK WASHER

€ 2.00

44

0916006039
ref: 44
09160-06109

WASHER (6.5X18X1.6)

€ 2.00

45

9570024820
ref: 45

LOCK SET,TOOL HOLDER

€ 61.50

46

9570024A20KEY
ref: 46
95700-24880

LOCK ASSEMBLY,AUDIO LID

€ 69.00

47

0211203068
ref: 47
02112-0306B

SCREW

€ 2.00

48

0832121038
ref: 48
09162-03001

LOCK WASHER

€ 1.50

48

0832121038
ref: 48
09162-03001

LOCK WASHER

€ 1.50

49

0932008018
ref: 49

CUSHION

€ 4.00

50

0214206164
ref: 50
02142-0616A

SCREW

€ 2.50

51

0916906034
ref: 51
09169-06071

WASHER

€ 2.50

52

0110706256
ref: 52
01500-0625A

BOLT

€ 2.50

53

0832221066
ref: 53
08322-0106B

WASHER, LOWER

€ 2.00

54

0918006044
ref: 54
09180-06248

SPACER (6.1X8X9.5)

€ 2.50

55

0922906004
ref: 55

RIVET

€ 0.00

56

0110706207
ref: 56
01500-06207

BOLT

€ 2.00

57

0916006052
ref: 57

WASHER(6.5X16X1.2)

€ 2.00

58

0918006141
ref: 58
09180-06141-XC0

SPACER (6.5X12X8)

€ 4.00

59

0110706255
ref: 59
01500-0625A

BOLT

€ 2.50

60

0832221064
ref: 60
08322-0106B

WASHER

€ 2.00

61

0916006031
ref: 61
09160-06125

WASHER (6.3X14X1.6)

€ 2.00

62

0918006031
ref: 62
09180-06296

SPACER (6.8X10X20)

€ 2.00

63

6861424A01
ref: 63

LABEL (WARNING AUDIO BO

€ 0.00

64-1

6861624A02
ref: 64-1

LABEL (WARNING ACCESS &

€ 0.00

64-2

6861624A20
ref: 64-2

LABEL (WARNING)

€ 0.00

64-2

6861624A20
ref: 64-2

LABEL (WARNING)

€ 0.00

all assemblies
