SIDE BAG (MODEL H)

GV1400GC CAVALCADE 1987 (H) USA (E03)

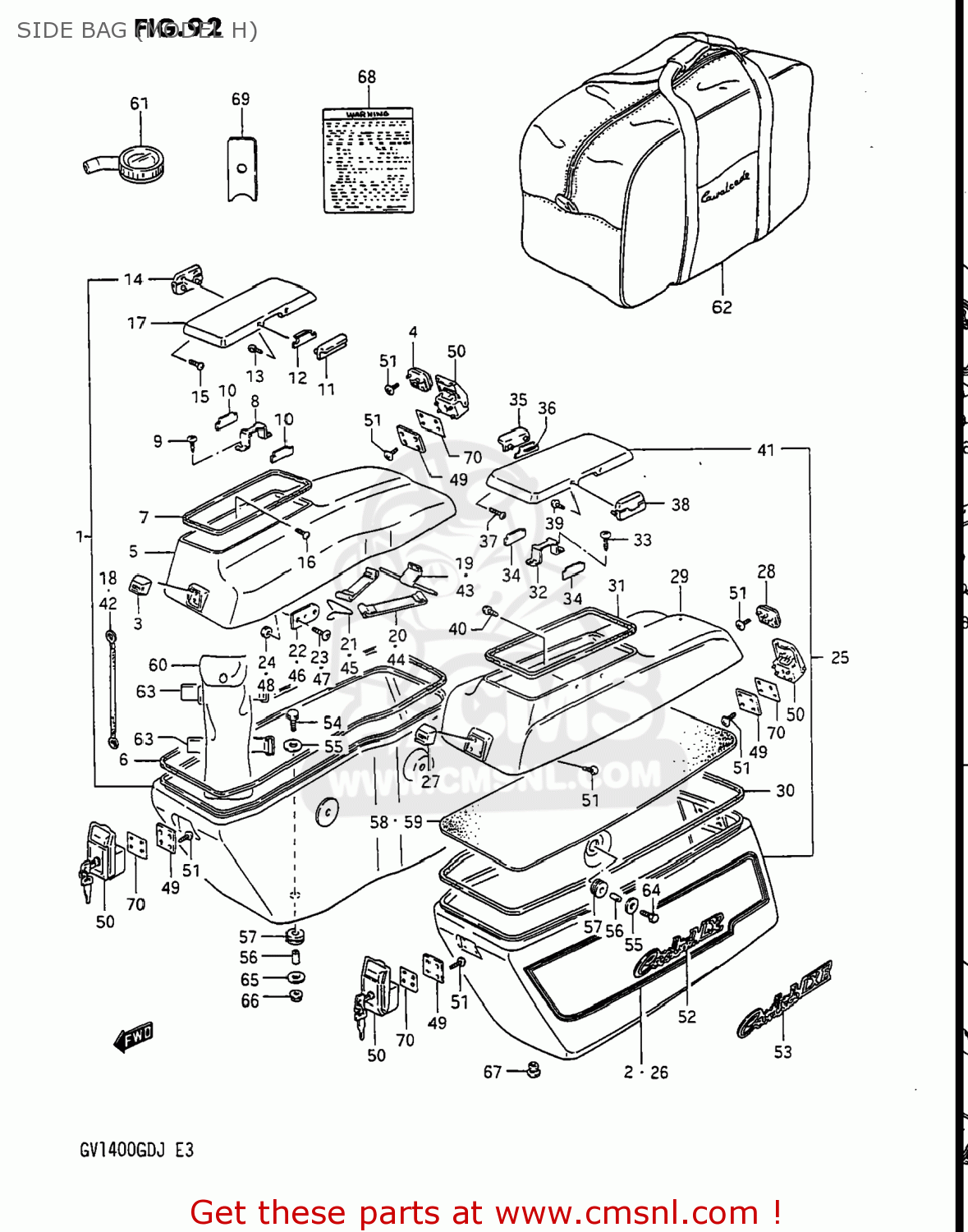

Side bag (model h) diagram GV1400GC CAVALCADE 1987 (H) USA (E03)

SIDE BAG (MODEL H) GV1400GC CAVALCADE 1987 (H) USA (E03)
SIDE BAG (MODEL H) GV1400GC CAVALCADE 1987 (H) USA (E03)
SIDE BAG (MODEL H) GV1400GC CAVALCADE 1987 (H) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
9540024A5020H
ref: 1-1
95400-24A51-20H
SIDE BAG ASSEMBLY,RIGHT
€ 1,457.50
1-2
9540024A5034B
ref: 1-2
95400-24A51-34B
SIDE BAG ASSEMBLY,RIGHT
€ 1,388.50
1-3
9540024A6024D
ref: 1-3
95400-24A61
SIDE BAG ASSEMBLY,RIGHT
€ 531.00
1-4
9540024A6013Z
ref: 1-4
95400-24A61-13Z
SIDE BAG ASSEMBLY,RIGHT
€ 531.00
2-1
6826024A309EC
ref: 2-1
TAPE SET,SIDE BAG STRIP
€ 0.00
2-2
6826024A309ED
ref: 2-2
TAPE SET,SIDE BAG STRIP
€ 0.00
2-3
6826024A309EA
ref: 2-3
TAPE SET,SIDE BAG STRIP
€ 0.00
2-4
6826024A309EB
ref: 2-4
TAPE SET,SIDE BAG STRIP
€ 0.00
3
9331624A02
ref: 3
PLATE,TRUNK LID LOCK
€ 15.00
4
9331624A13
ref: 4
PLATE,SIDE BAG LID LOCK
€ 15.00
5-1
9544024A2020H
ref: 5-1
LID,SIDE BAG,RIGHT
€ 433.50
5-2
9544024A2034B
ref: 5-2
LID,SIDE BAG,RIGHT
€ 433.50
5-3
9544024A1024D
ref: 5-3
LID,SIDE BAG,RIGHT
€ 433.50
5-4
9544024A1013Z
ref: 5-4
LID,SIDE BAG,RIGHT
€ 433.50
6
9542224A01
ref: 6
SEAL,SIDE BAG
€ 10.50
7
9544624A02
ref: 7
SEAL,SIDE BAG
€ 9.00
8
9551624A00
ref: 8
HOLDER,LID LOCK MAGNET
9551624A00
€ 4.00
9
0351103125
ref: 9
SCREW
€ 0.00
10
9542324A10
ref: 10
PLATE,LID LOCK
9542324A10
€ 4.00
11
9544724A00
ref: 11
LEVER,SIDE POCKET OPEN
9544724A00
€ 19.50
12
9542424A00
ref: 12
PLATE,LID LOCK NO.1
€ 4.50
13
0214204065
ref: 13
02142-0406A
SCREW
€ 1.50
14
9544324A00
ref: 14
HINGE,LID SIDE BAG POCKET
9544324A00
€ 47.00
15
0214204065
ref: 15
02142-0406A
SCREW
€ 1.50
16
0214204125
ref: 16
02142-0412A
SCREW
€ 1.50
17
9544824A00
ref: 17
LID,SIDE BAG POCKET
9544824A00
€ 65.50
18
9319124A00
ref: 18
BAND,SIDE BAG LID
€ 8.00
19
9547024A00
ref: 19
PLATE,LUGGAGE BAND LID
€ 8.50
20
9547424A00
ref: 20
BAND,LUGGAGE LID
€ 13.00
21
9547524A00
ref: 21
.HOOK
€ 4.50
22
9547324A00
ref: 22
PLATE, FRONT
9547324A00
€ 4.50
23
0214205124
ref: 23
02142-0512A
SCREW, FRONT & REAR
€ 1.50
24
0831321055
ref: 24
08313-2005A
NUT 5MM
0831321055
€ 1.50
24
0831321055
ref: 24
08313-2005A
NUT 5MM
0831321055
€ 1.50
25-1
9550024A5020H
ref: 25-1
95500-24A51-20H
SIDE BAG ASSEMBLY,LEFT
€ 1,388.50
25-2
9550024A5034B
ref: 25-2
95500-24A51-34B
SIDE BAG ASSEMBLY,LEFT
€ 1,388.50
25-3
9550024A6024D
ref: 25-3
95500-24A61
SIDE BAG ASSEMBLY,LEFT
€ 531.00
25-4
9550024A6013Z
ref: 25-4
95500-24A61
SIDE BAG ASSEMBLY,LEFT
€ 531.00
26-1
6829024A309EC
ref: 26-1
TAPE SET,SIDE BAG STRIP
€ 0.00
26-2
6829024A309ED
ref: 26-2
TAPE SET,SIDE BAG STRIP
€ 0.00
26-3
6829024A309EA
ref: 26-3
TAPE SET,SIDE BAG STRIP
€ 0.00
26-4
6829024A309EB
ref: 26-4
TAPE SET,SIDE BAG STRIP
€ 0.00
27
9331624A02
ref: 27
PLATE,TRUNK LID LOCK
€ 15.00
28
9331624A13
ref: 28
PLATE,SIDE BAG LID LOCK
€ 15.00
29-1
9554024A2020H
ref: 29-1
LID,SIDE BAG,LEFT
€ 389.50
29-2
9554024A2034B
ref: 29-2
LID,SIDE BAG,LEFT
€ 389.50
29-3
9554024A1024D
ref: 29-3
LID,SIDE BAG,LEFT
€ 389.50
29-4
9554024A1013Z
ref: 29-4
LID,SIDE BAG,LEFT
€ 0.00
30
9542224A01
ref: 30
SEAL,SIDE BAG
€ 10.50
31
9544624A02
ref: 31
SEAL,SIDE BAG
€ 9.00
32
9551624A00
ref: 32
HOLDER,LID LOCK MAGNET
9551624A00
€ 4.00
33
0351103125
ref: 33
SCREW
€ 0.00
34
9542324A10
ref: 34
PLATE,LID LOCK
9542324A10
€ 4.00
35
9544724A00
ref: 35
LEVER,SIDE POCKET OPEN
9544724A00
€ 19.50
36
9542424A00
ref: 36
PLATE,LID LOCK NO.1
€ 4.50
37
0214204065
ref: 37
02142-0406A
SCREW
€ 1.50
38
9544324A00
ref: 38
HINGE,LID SIDE BAG POCKET
9544324A00
€ 47.00
39
0214204065
ref: 39
02142-0406A
SCREW
€ 1.50
40
0214204125
ref: 40
02142-0412A
SCREW
€ 1.50
41
9544824A00
ref: 41
LID,SIDE BAG POCKET
9544824A00
€ 65.50
42
9319124A00
ref: 42
BAND,SIDE BAG LID
€ 8.00
43
9547024A00
ref: 43
PLATE,LUGGAGE BAND LID
€ 8.50
44
9547424A00
ref: 44
BAND,LUGGAGE LID
€ 13.00
45
9547524A00
ref: 45
.HOOK
€ 4.50
46
9547324A00
ref: 46
PLATE, FRONT
9547324A00
€ 4.50
47
0214205124
ref: 47
02142-0512A
SCREW, FRONT & REAR
€ 1.50
48
0831321055
ref: 48
08313-2005A
NUT 5MM
0831321055
€ 1.50
48
0831321055
ref: 48
08313-2005A
NUT 5MM
0831321055
€ 1.50
49
9312424A00
ref: 49
SET PLATE,LOCK SIDE BA
€ 5.00
50
9331024A01KEY
ref: 50
93300-24820
LOCK ASSY, SIDE BAG
€ 96.50
51
0214205085
ref: 51
02142-0508A
SCREW
0214205085
€ 2.00
52
6826124A10
ref: 52
EMBLEM,SIDE BAG,RIGHT
€ 29.00
53
6826124A20
ref: 53
EMBLEM
€ 25.00
54
0110706307
ref: 54
01500-06307
BOLT 6X30
€ 2.50
55
0916006030
ref: 55
09160-06136
WASHER (6.5X29X1.6)
0916006030
€ 2.50
56
0918006055
ref: 56
SPACER(6.3X9.3X16.5)
0918006055
€ 4.00
57
0932009017
ref: 57
CUSHION
0932009017
€ 3.00
58
9541624A00
ref: 58
SEAT, BOTTOM RH
€ 13.50
59
9541724A00
ref: 59
SEAT, BOTTOM LH
€ 13.50
60
0980000293
ref: 60
TOOL ASSY
€ 448.50
61
9620041330
ref: 61
GAUGE ASSY,AIR PRESSURE
9620041330
€ 77.50
62
9545024A01
ref: 62
LUGGAGE BAG,SIDE BAG
€ 131.50
63
0946200040
ref: 63
BAND
0946200040
€ 4.50
64
0910406004
ref: 64
BOLT(6X30)
0910406004
€ 3.00
65
0916006013
ref: 65
09160-06121
WASHER (6.5X18X2)
0916006013
€ 10.50
66
0831931067
ref: 66
NUT
0831931067
€ 2.50
67
0925008013
ref: 67
CAP(OD:12)
0925008013
€ 2.00
68
6861324A20
ref: 68
LABEL (WARNING TRAVEL T
€ 0.00
69
0981300038
ref: 69
SPANNER
€ 0.00
70
9331424A01
ref: 70
PACKING SEAT
€ 3.50
70
9331424A01
ref: 70
PACKING SEAT
€ 3.50
