INNER COWLING (GV1400GDG/GTG/GDH/GDJ)

GV1400GC CAVALCADE 1987 (H) USA (E03)

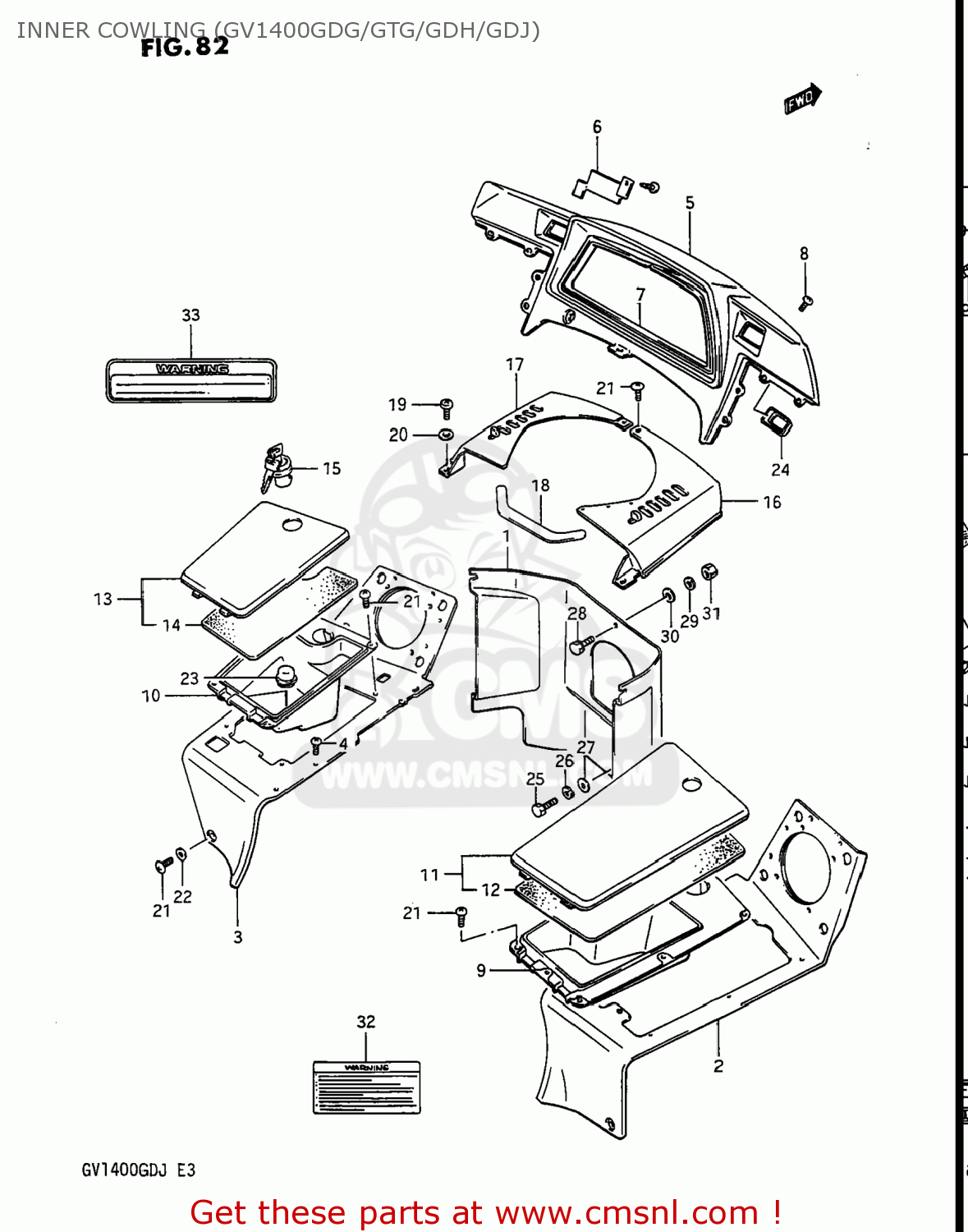

Inner cowling (gv1400gdg/gtg/gdh/gdj) diagram GV1400GC CAVALCADE 1987 (H) USA (E03)

INNER COWLING (GV1400GDG/GTG/GDH/GDJ) GV1400GC CAVALCADE 1987 (H) USA (E03)
INNER COWLING (GV1400GDG/GTG/GDH/GDJ) GV1400GC CAVALCADE 1987 (H) USA (E03)
INNER COWLING (GV1400GDG/GTG/GDH/GDJ) GV1400GC CAVALCADE 1987 (H) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
9441924A01
ref: 1
COVER,COWLING,INNER
€ 44.00
2
9442124A01291
ref: 2
PANEL,COWLING,R
9442124A01291
€ 90.00
3-1
9442224A01291
ref: 3-1
PANEL,COWLING,L
9442224A01291
€ 108.00
3-2
9442224A11291
ref: 3-2
PANEL,COWLING,L
€ 113.50
4
0214205164
ref: 4
02142-0516A
SCREW
0214205164
€ 2.50
5-1
9442024A02291
ref: 5-1
COVER ASSY,METER
€ 140.00
5-2
9442024A12291
ref: 5-2
COVER ASSEMBLY,METER
€ 58.50
6-1
9442624A00
ref: 6-1
COVER,METER COVER HOLE
€ 8.00
6-2
9442624A00
ref: 6-2
COVER,METER COVER HOLE
€ 8.00
6-3
9442724A00
ref: 6-3
COVER,METER COVER HOLE
9442724A00
€ 7.00
7
9463824A02
ref: 7
MOLDING,METER COVER
€ 26.00
8
0214205105
ref: 8
02142-0510B
SCREW
0214205105
€ 2.50
9-1
9442324A00
ref: 9-1
97460-24A00
BOX, COWL PANEL RH
€ 44.50
9-2
9746024A00
ref: 9-2
BOX ASSY,COWLING PANEL R
9746024A00
€ 44.50
9-2
9746024A00
ref: 9-2
BOX ASSY,COWLING PANEL R
9746024A00
€ 44.50
10
9442424A01
ref: 10
BOX,COWLING PANEL,LEFT
€ 31.50
11
9441424A01291
ref: 11
LID,COWLING BOX RH
9441424A01291
€ 158.00
12
9442824A01
ref: 12
SEAL,LID,RIGHT
€ 8.50
13
9441524A01291
ref: 13
LID,COWLING BOX LH
9441524A01291
€ 40.00
14
9442924A01
ref: 14
SEAL,LID,LEFT
€ 8.50
15
9570024820
ref: 15
LOCK SET,TOOL HOLDER
9570024820
€ 61.50
16
4735024A02291
ref: 16
COVER ASSY,FRAME HEAD,R(BLACK)
4735024A02291
€ 53.00
17
4736024A02291
ref: 17
COVER ASSY,FRAME HEAD,L(BLACK)
4736024A02291
€ 59.00
18
4734524A01
ref: 18
SEAL,FRAME HEAD
4734524A01
€ 19.00
19-1
0211205163
ref: 19-1
02112-0516A
SCREW
0211205163
€ 2.00
19-2
0214205164
ref: 19-2
02142-0516A
SCREW
0214205164
€ 2.50
20
0832221053
ref: 20
08322-0105A
WASHER,5.5X12X
€ 2.00
21
0214204165
ref: 21
02142-0416A
SCREW
0214204165
€ 2.00
22
0916004017
ref: 22
09160-04022
WASHER (4.3X13X0.80)
0916004017
€ 1.50
23-1
9441724A00
ref: 23-1
CAP,COWLING PANEL BOX
€ 8.50
23-2
0925025001
ref: 23-2
CAP(OD:30)
0925025001
€ 2.00
24
9443724A00
ref: 24
94437-24A01
CAP,RADIO IND
€ 15.50
24
9443724A00
ref: 24
94437-24A01
CAP,RADIO IND
€ 15.50
25
0110405123
ref: 25
01500-0512B
BOLT
€ 1.50
26
0832121053
ref: 26
08321-0105A
LOCK WASHER
€ 2.50
27
0832221053
ref: 27
08322-0105A
WASHER,5.5X12X
€ 2.00
28
0110405123
ref: 28
01500-0512B
BOLT
€ 1.50
29
0832121053
ref: 29
08321-0105A
LOCK WASHER
€ 2.50
30
0832221053
ref: 30
08322-0105A
WASHER,5.5X12X
€ 2.00
31
0831011053
ref: 31
08310-0005A
NUT
0831011053
€ 2.00
32-1
6861524A00
ref: 32-1
LABEL (WARNING)
€ 0.00
32-2
6861524A40
ref: 32-2
LABEL (WARNING)
€ 0.00
33
6861824A00
ref: 33
LABEL (WARNING COVER CO
€ 0.00
33
6861824A00
ref: 33
LABEL (WARNING COVER CO
€ 0.00
