Buy Suzuki GV Parts Online


OUTER COWLING (GV1400GDG/GTG ~F.NO.104470)

GV1400GC CAVALCADE 1987 (H) USA (E03)

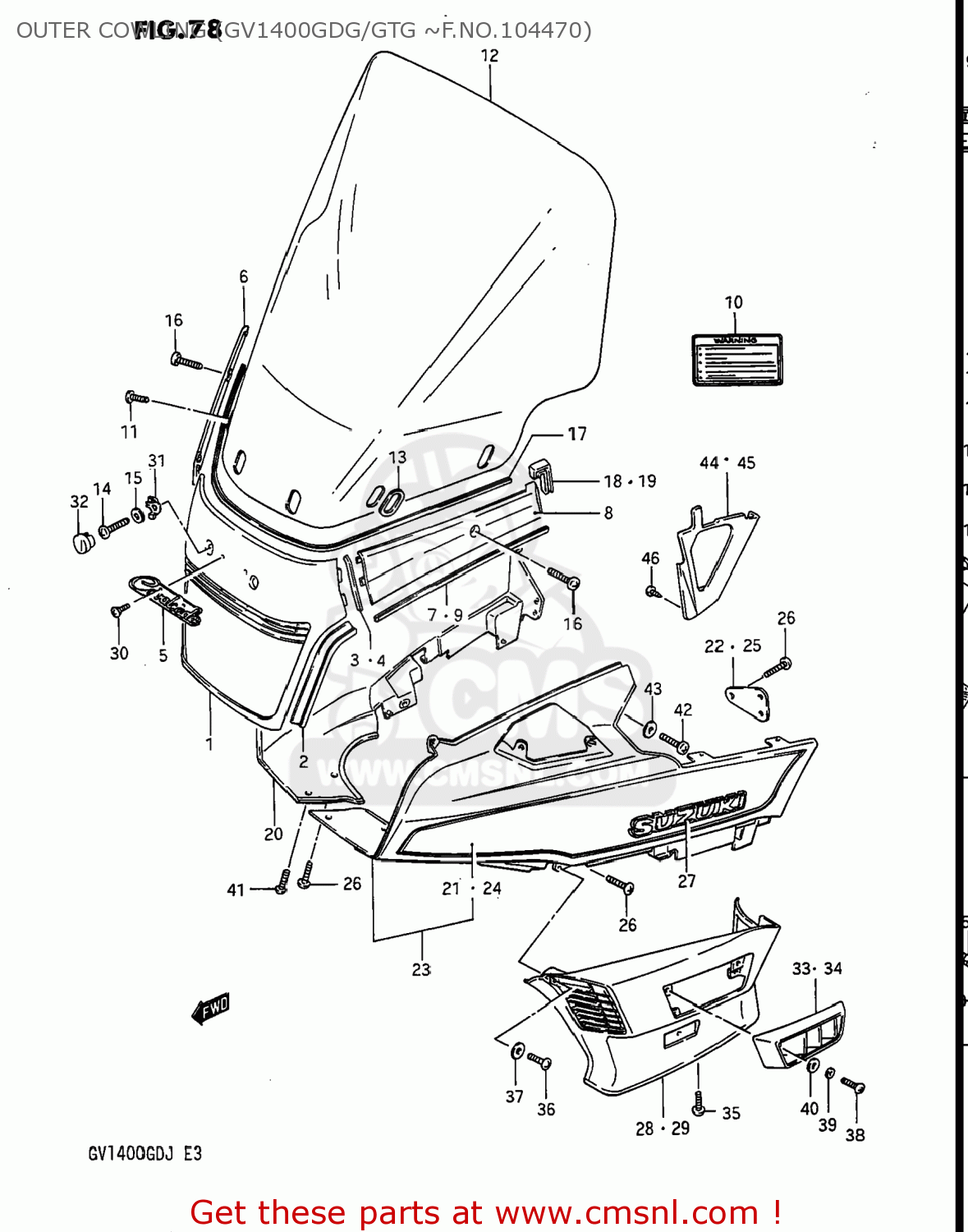

Outer cowling (gv1400gdg/gtg ~f.no.104470) diagram GV1400GC CAVALCADE 1987 (H) USA (E03)

OUTER COWLING (GV1400GDG/GTG ~F.NO.104470) GV1400GC CAVALCADE 1987 (H) USA (E03)
OUTER COWLING (GV1400GDG/GTG ~F.NO.104470) GV1400GC CAVALCADE 1987 (H) USA (E03)
OUTER COWLING (GV1400GDG/GTG ~F.NO.104470) GV1400GC CAVALCADE 1987 (H) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
9441124A00
ref: 1
COVER,COWLING,FRONT,CENTER
€ 135.50
2
9463924A01
ref: 2
94639-24A02
MOLDING,FRONT COVER,LOWER
€ 6.50
3
9463324A00
ref: 3
CUSHION,WINDSHEILD
9463324A00
€ 3.50
4
9463424A00
ref: 4
PLATE,WINDSHEILD
9463424A00
€ 4.00
5
6819324A00
ref: 5
EMBLEM,COWLING,FRONT
€ 24.50
6
9441224A00
ref: 6
COVER,COWLING,FRONT,RIGHT
9441224A00
€ 33.50
7
9463624A01
ref: 7
94636-24A02
MOLDING,FRONT COVER SIDE
€ 7.00
8
9441324A00
ref: 8
COVER,COWLING,FRONT,LEFT
9441324A00
€ 37.00
9
9463624A01
ref: 9
94636-24A02
MOLDING,FRONT COVER SIDE
€ 7.00
10
6861224A00
ref: 10
68612-24A01
LABEL (WARNING SCREEN)
€ 3.00
11
0214206203
ref: 11
02142-0620A
SCREW
0214206203
€ 2.00
12-1
9461024A00
ref: 12-1
94610-24A01
SCREEN ASSEMBLY,COWLING
€ 613.00
12-2
9461024A90
ref: 12-2
94610-24A91
SCREEN ASSEMBLY,COWLING (OP
€ 382.50
13
9461424A00
ref: 13
WASHER,SCREEN
9461424A00
€ 3.50
14
0211206258
ref: 14
02112-06257
SCREW
€ 2.00
15
0832221067
ref: 15
08322-01067
WASHER
0832221067
€ 2.00
16
0211206258
ref: 16
02112-06257
SCREW
€ 2.00
17
9463524A00
ref: 17
SEAL,FRONT COVER,CENTER
€ 9.50
18
9463724A00
ref: 18
CAP,COWLING FRONT COVER END
9463724A00
€ 13.50
19
9464724A00
ref: 19
CAP,COWL FR COVER END,L
9464724A00
€ 12.50
20-1
9445024A007UM
ref: 20-1
94450-24A00
BODY,COWLING,RIGHT
€ 352.00
20-2
9445024A007UN
ref: 20-2
94450-24A00
BODY,COWLING,RIGHT
€ 352.00
20-3
9445024A1012S
ref: 20-3
BODY,COWLING,RIGHT
€ 588.00
20-4
9445024A1024K
ref: 20-4
BODY,COWLING,RIGHT
€ 532.00
21-1
6868024A007UP
ref: 21-1
TAPE SET,COWLING BODY
€ 0.00
21-2
6868024A007UR
ref: 21-2
TAPE SET,COWLING BODY
€ 0.00
21-3
6868024A1078V
ref: 21-3
TAPE SET,COWLING
€ 0.00
21-4
6868024A107US
ref: 21-4
TAPE SET,COWLING
€ 0.00
22
9449924A00
ref: 22
BRACKET,COWLING BODY,RIGHT
€ 5.00
23-1
9446024A007UM
ref: 23-1
94460-24A00
BODY,COWLING,LEFT
€ 319.50
23-2
9446024A007UN
ref: 23-2
94460-24A00
BODY,COWLING,LEFT
€ 319.50
23-3
9446024A1012S
ref: 23-3
BODY,COWLING,LEFT
€ 588.00
23-4
9446024A1024K
ref: 23-4
BODY,COWLING,LEFT
€ 0.00
23-4
9446024A1024K
ref: 23-4
BODY,COWLING,LEFT
€ 0.00
23-4
9446024A1024K
ref: 23-4
BODY,COWLING,LEFT
€ 0.00
23-4
9446024A1024K
ref: 23-4
BODY,COWLING,LEFT
€ 0.00
23-4
9446024A1024K
ref: 23-4
BODY,COWLING,LEFT
€ 0.00
24-1
6869024A007UP
ref: 24-1
TAPE SET,COWLING BODY
€ 0.00
24-2
6869024A007UR
ref: 24-2
TAPE SET,COWLING
€ 0.00
24-3
6869024A1078V
ref: 24-3
TAPE SET,COWLING
€ 0.00
24-4
6869024A107US
ref: 24-4
TAPE SET,COWLING
€ 0.00
25
9449924A00
ref: 25
BRACKET,COWLING BODY,RIGHT
€ 5.00
26
0214206164
ref: 26
02142-0616A
SCREW
0214206164
€ 2.50
27
6811124A00
ref: 27
EMBLEM,COWLING SIDE,LEFT
6811124A00
€ 43.50
28-1
9443024A0024G
ref: 28-1
94400-24810-24G
COVER ASSEMBLY,COWLING
€ 511.50
28-2
9443024A0024H
ref: 28-2
94400-24810-24H
COVER ASSEMBLY,COWLING
€ 563.00
28-3
9443024A0012S
ref: 28-3
94400-24810-12S
COVER ASSEMBLY,COWLING
€ 547.00
28-4
9443024A0024K
ref: 28-4
94400-24810-24K
COVER ASSEMBLY,COWLING
€ 491.50
29-1
9444024A0024G
ref: 29-1
COVER ASSEMBLY,COWLING SIDE,LEFT
€ 201.50
29-2
9444024A0024H
ref: 29-2
COVER ASSEMBLY,COWLING SIDE,LEFT
€ 0.00
29-3
9444024A0012S
ref: 29-3
COVER ASSEMBLY,COWLING SIDE,LEFT
€ 0.00
29-4
9444024A0024K
ref: 29-4
COVER ASSEMBLY,COWLING SIDE,LEFT
€ 281.50
30
0213203128
ref: 30
SCREW
0213203128
€ 1.00
31
9445624A00
ref: 31
PLATE,FR COVER LOCK
9445624A00
€ 3.50
32
9445724A00
ref: 32
CAP,FR COVER
€ 4.50
33
9443524A00
ref: 33
LOUVER,SIDE COVER,RIGHT
€ 54.00
34
9444524A00
ref: 34
LOUVER,SIDE COVER,LEFT
€ 47.50
35
0913906012
ref: 35
02142-0616A
SCREW (M6X1X16)
€ 2.00
36
0214204165
ref: 36
02142-0416A
SCREW
0214204165
€ 2.00
37
0916004017
ref: 37
09160-04022
WASHER (4.3X13X0.80)
0916004017
€ 1.50
38
0211204163
ref: 38
02112-0416A
SCREW 4X16
0211204163
€ 1.00
39
0832121043
ref: 39
08321-0104A
LOCK WASHER
€ 2.00
40
0832221043
ref: 40
08322-0104A
WASHER
€ 5.00
41
0214205164
ref: 41
02142-0516A
SCREW
0214205164
€ 2.50
42
0211206164
ref: 42
02112-0616A
SCREW
€ 2.00
43
0832221064
ref: 43
08322-0106B
WASHER
0832221064
€ 2.00
44
9443624A00
ref: 44
94436-24A01
UNDER COVER, FRAME
9443624A00
€ 11.50
45
9444624A00
ref: 45
94446-24A01
COVER,COVER FRAME,UPPER
9444624A00
€ 11.50
46
0354104085
ref: 46
03541-0408A
SCREW
€ 2.00
46
0354104085
ref: 46
03541-0408A
SCREW
€ 2.00
46
0354104085
ref: 46
03541-0408A
SCREW
€ 2.00
46
0354104085
ref: 46
03541-0408A
SCREW
€ 2.00
46
0354104085
ref: 46
03541-0408A
SCREW
€ 2.00
